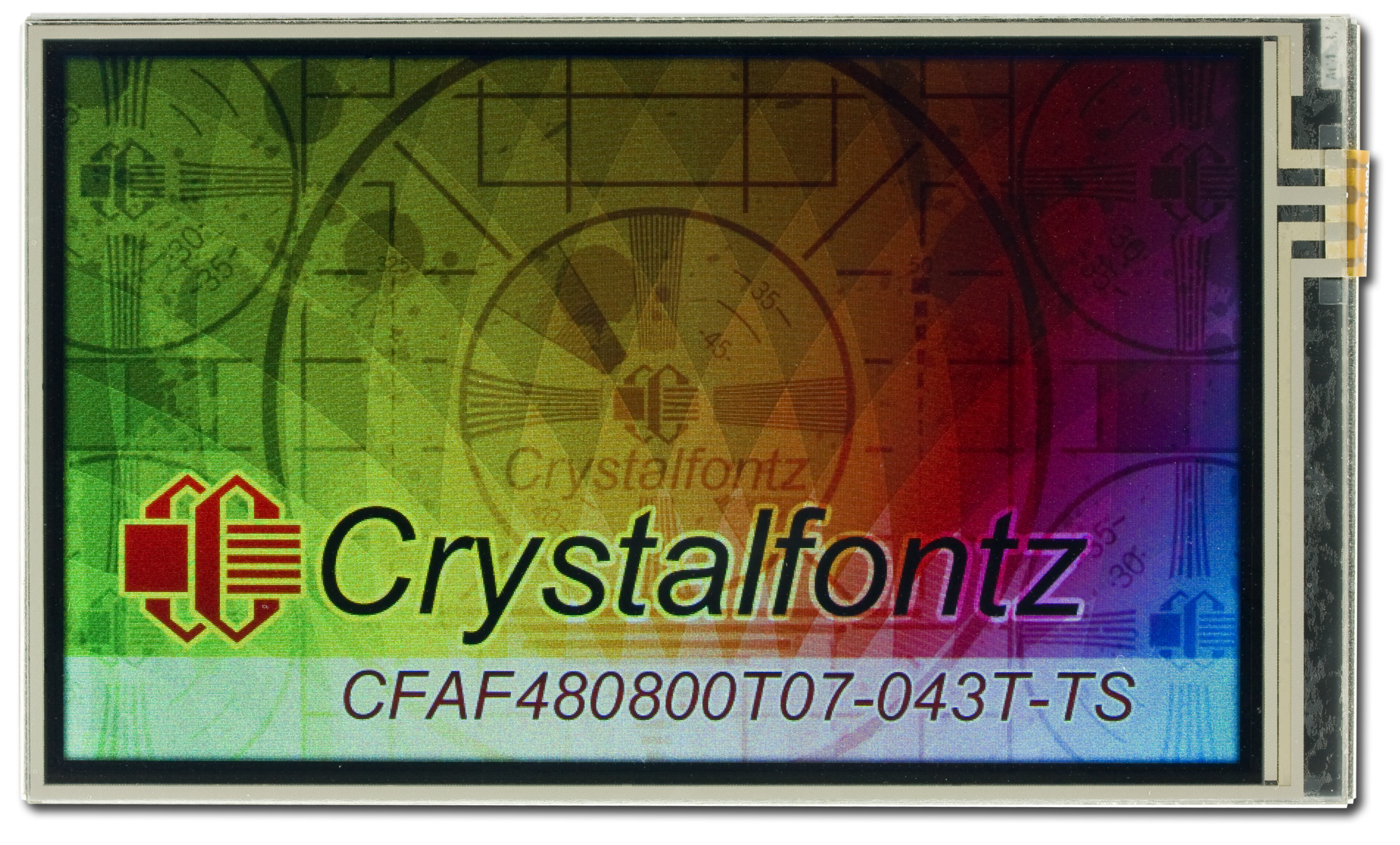

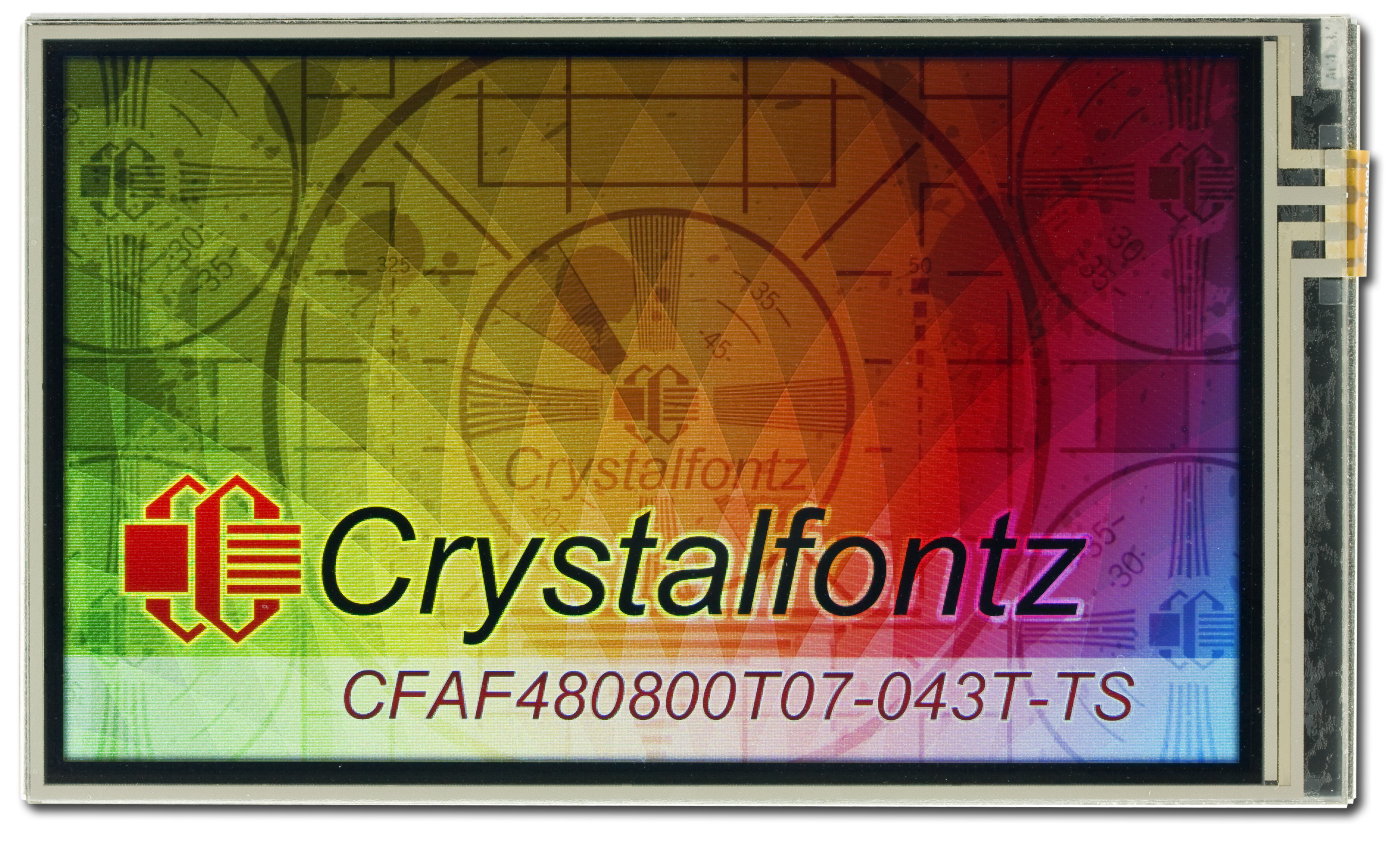

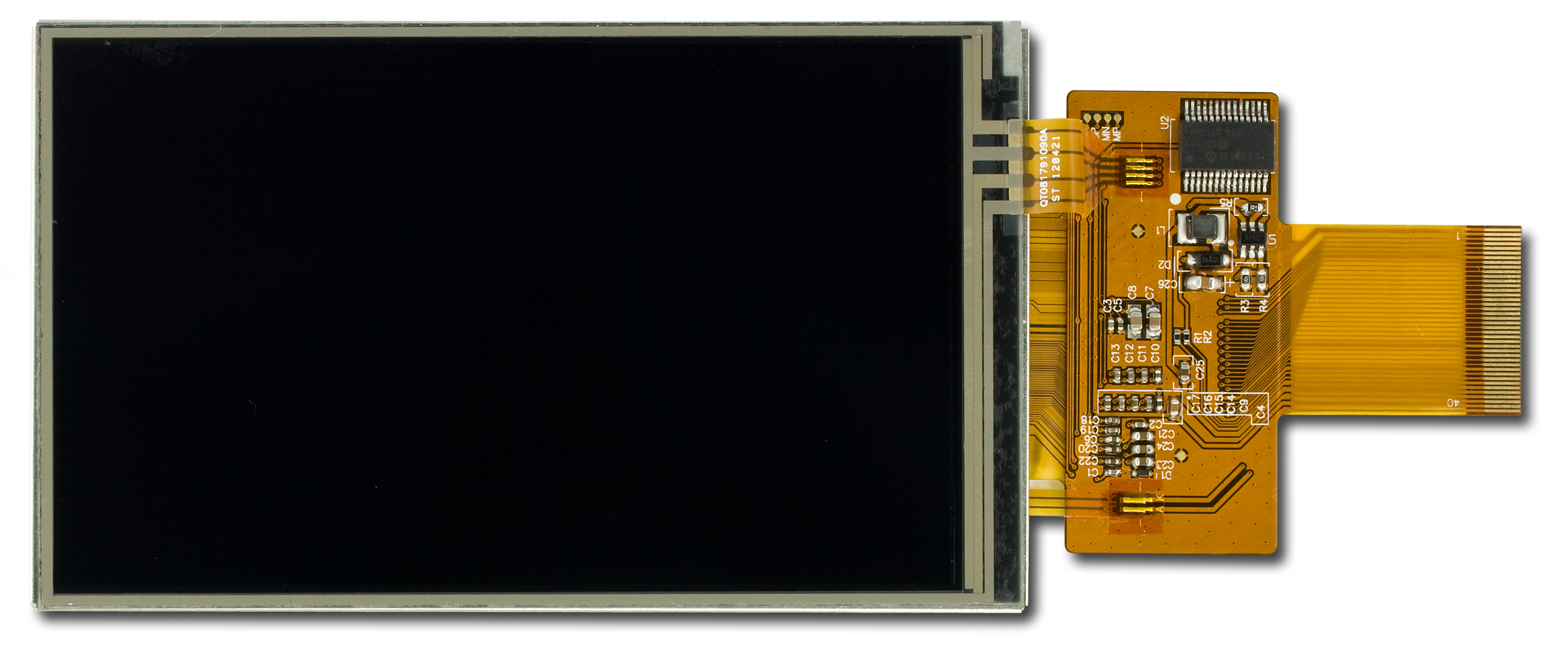

4.3" 480x800 Touch Screen Color TFTPart Number: CFAF480800T07-043T-TS480x800 262k full color graphic 4.3 inch TFT Display module. White LED backlight. Includes 4 wire Resistive Touch Screen.
This 4.3 inch display module has an integrated Raydium Semiconductor RM68120 (or compatible) controller.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            480 x 800

    Module Overall        width
        height
        depth

        millimeters
        62.96
        106.4
        3.95

        inches
        2.48
        4.19
        0.16

*width / height does not include Foldable Tab

        Diagonal Dimension
            4.3"

    Viewing Area        Width
        Height

        millimeters
        57.36
        94.8

        inches
        2.26
        3.73

    Active Area        Width
        Height

        millimeters
        56.16
        93.6

        inches
        2.21
        3.69

        Weight
            49g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.5V
Supply Voltage for Logic Maximum
            3.3V

        Supply Current Maximum
            25mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            25.6V
Forward Voltage Maximum
            26.4V
Forward Voltage Typical
            26V

        Forward Current Maximum
            20mA
Forward Current Typical
            15mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        max

        Non-condensing
        85%

 cable Electronics
Electronics

        Controller Documents
            Raydium Semiconductor RM68120
Single Chip Driver with 16.7M color

for 480RGBx864 a-Si TFT LCD
Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFAF480800T07043TTS Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAF480800T07-043T-TS Datasheet

 download Files and Downloads
picture_as_pdf Other Document - Mechanical Drawing

Module Overall	width	height	depth
millimeters	62.96	106.4	3.95
inches	2.48	4.19	0.16
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	57.36	94.8
inches	2.26	3.73

Active Area	Width	Height
millimeters	56.16	93.6
inches	2.21	3.69

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	max
Non-condensing	85%
