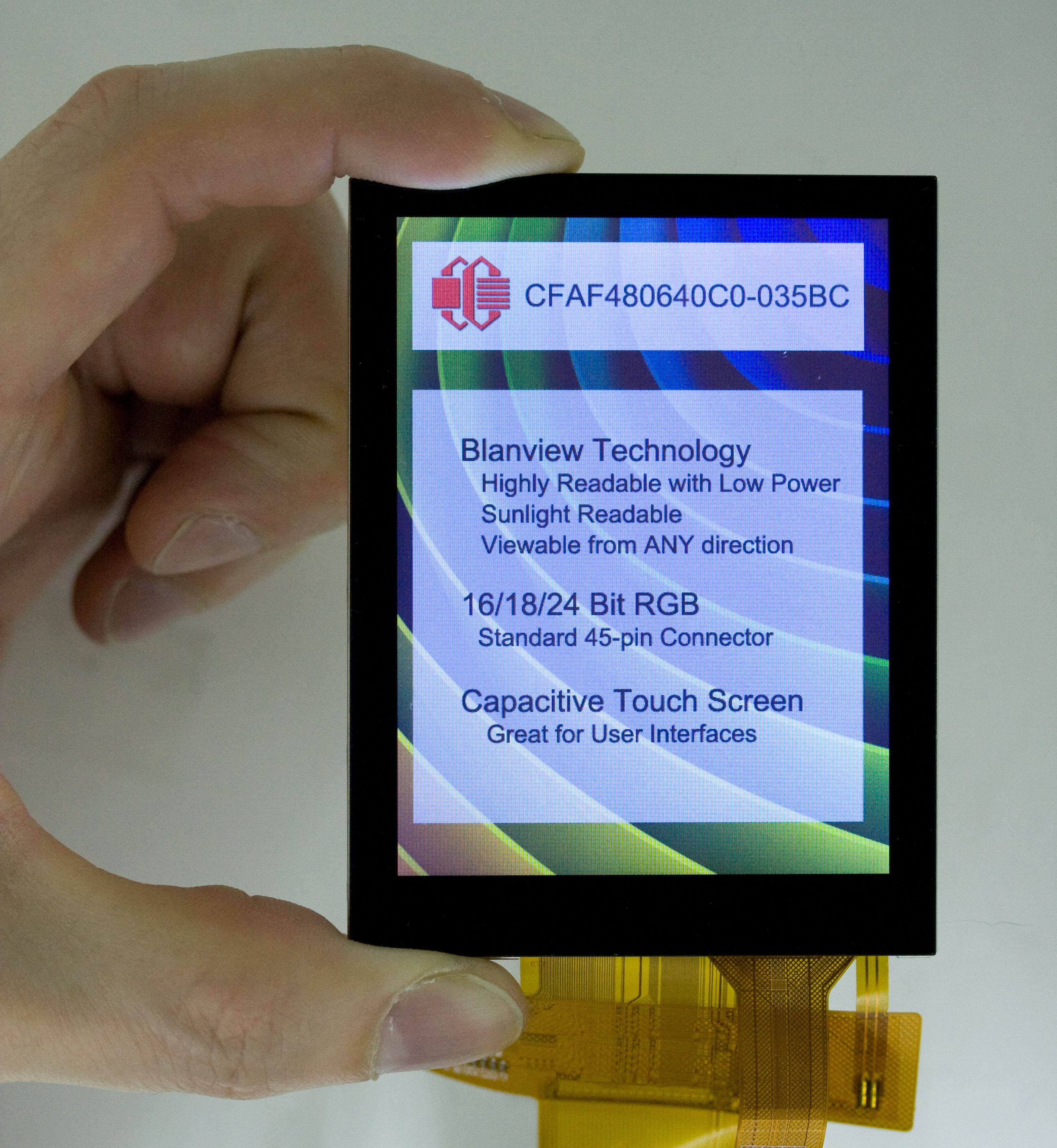

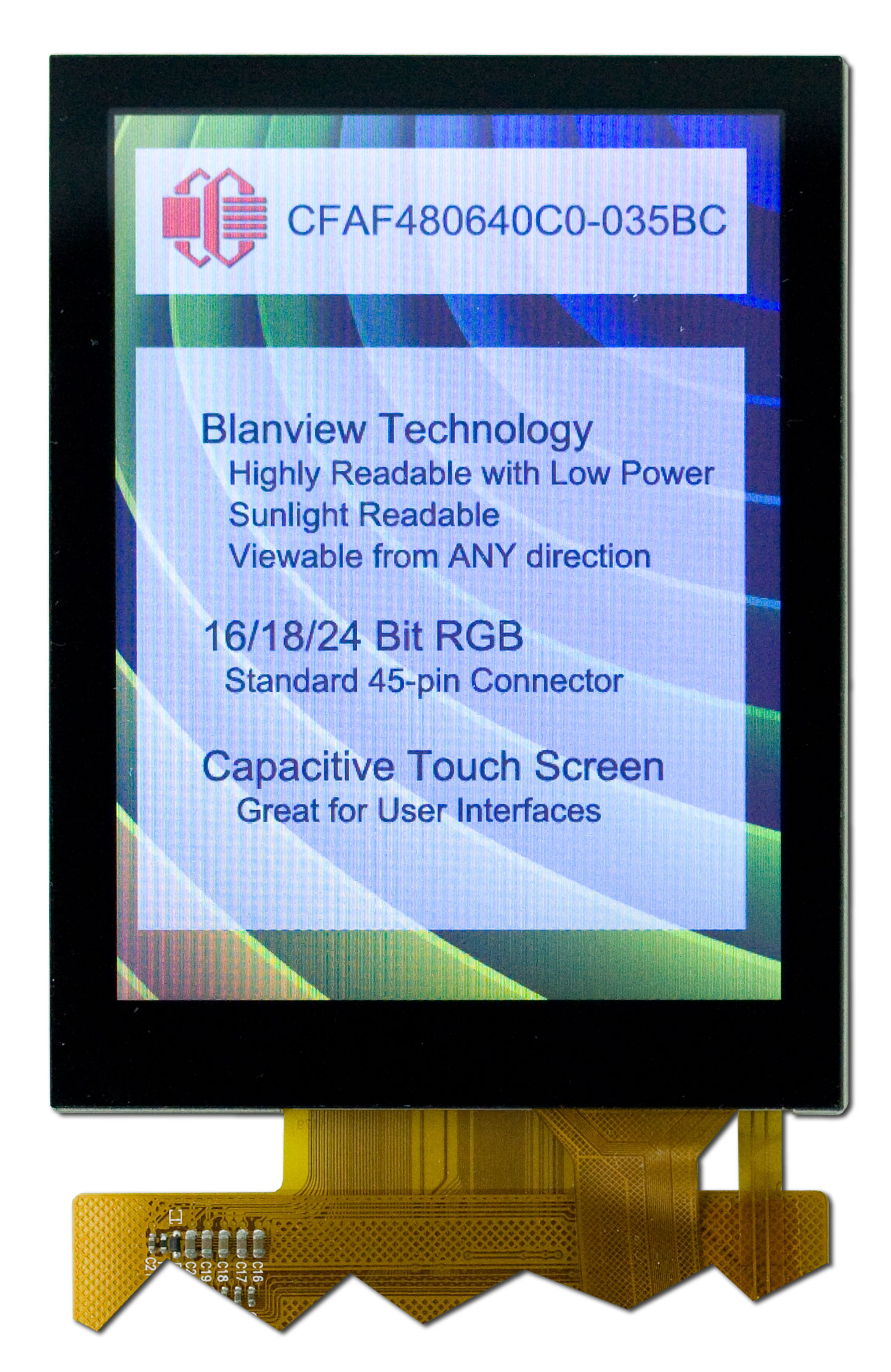

480x640 Blanview Capactive Touchscreen Display

Part Number: CFAF480640C0-035BC

This TFT display is something special. Thanks to Blanview technology, this display combines the benefits of transmissive and transflective technology for great performance both inside and outside while maintaining low power requirements. Even with its relatively low nit rating (typical 373 cd/m2), this display is still sunlight readable.

This display also boasts a high pixel density with 480x640 pixels packed into the 3.5-inch display. Further, this display has wonderful color depth, displaying up to 16.7M colors. In addition to its beautiful display capabilities, this module includes a capacitive touchscreen, making it a great choice for a user interface.

Key Features:

• Sunlight Readable
• Low Power
• High Contrast
• Capacitive Touchscreen
• 480x640 Resolution
• TFT
• 3-wire SPI initialization + RGB interface
  • 16-bit RGB option (2 bytes)
  • 18/24-bit RGB option (3 bytes)
• Viewing direction is any direction just like IPS

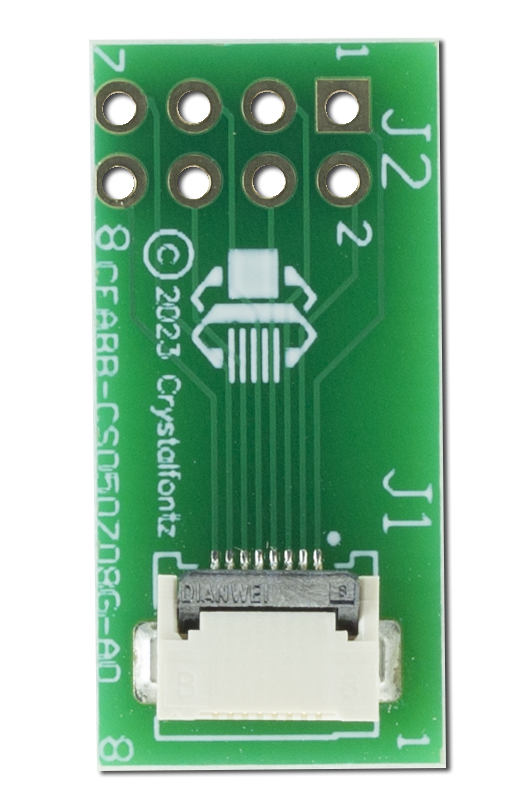

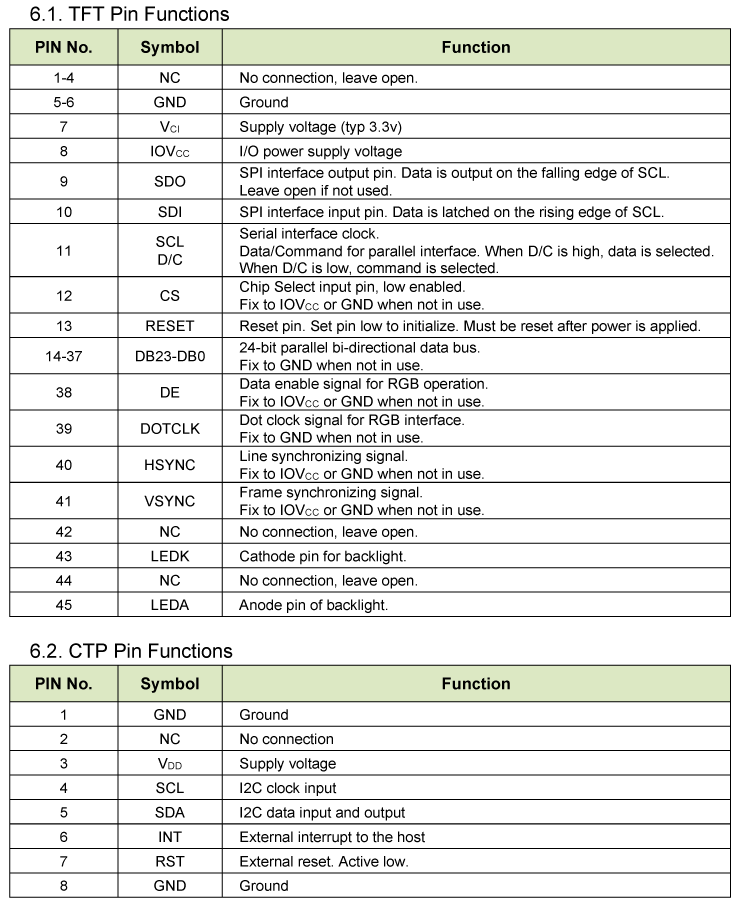

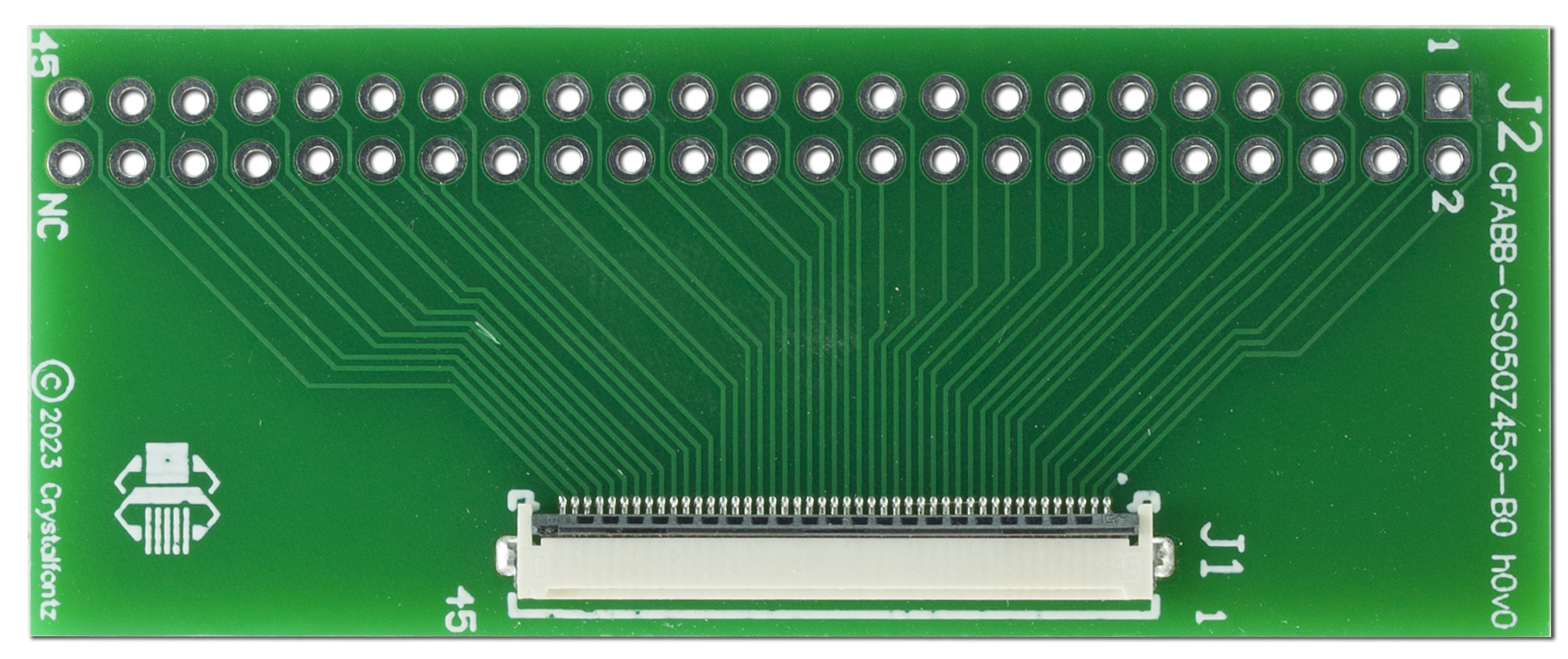

• 45-pin 0.5mm pitch main tail, 8-pin 0.5 mm touch tail

• square_foot Physical Characteristics

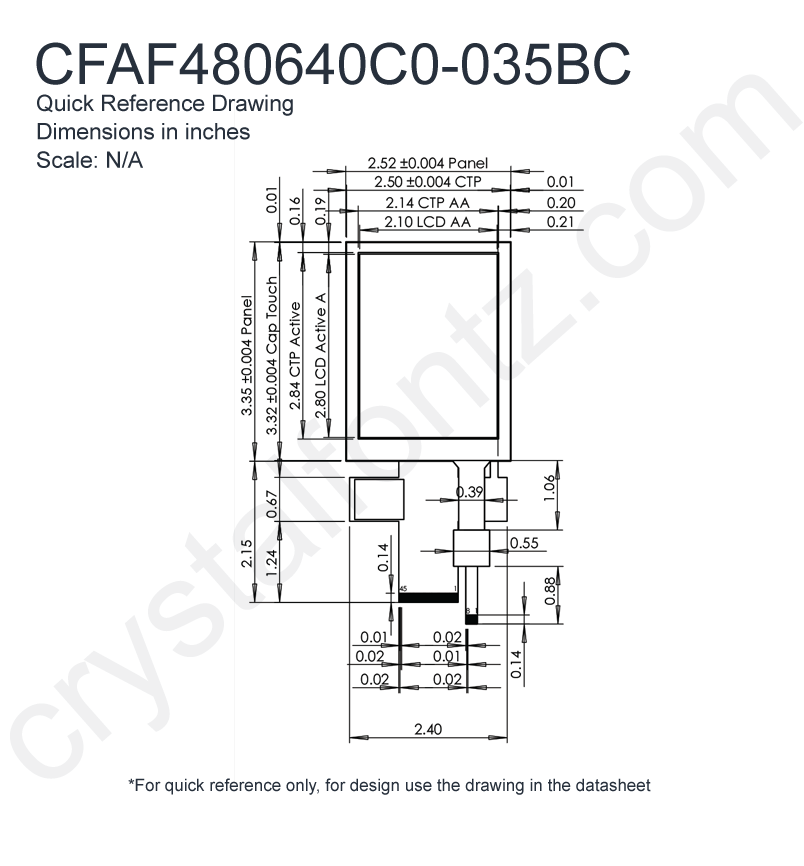

  Physical Characteristics

  Column Dots x Row Dots

  480 x 640

  Module Overall	width	height	depth
  millimeters	64	85	4.75
  inches	2.520	3.346	0.187
  *width / height does not include Foldable Tab

  Diagonal Dimension

  3.5"

  Viewing Area	Width	Height
  millimeters	54.37	72.22
  inches	2.141	2.843

  Active Area	Width	Height
  millimeters	53.28	71.04
  inches	2.098	2.797

  Dot Pitch	Width	Height
  millimeters	0.111	0.111
  inches	0.0044	0.0044

  Flexible Cable (FFC/FPC)	length
  millimeters	54.7
  inches	2.154

  Weight	31.6g
  Pin Count	45

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	Transmissive
  View Angle	160°
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Black

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	2.5V
  Supply Voltage for Logic Maximum	3.6V
  Supply Voltage for Logic Typical	3.3V

  Supply Voltage for Driving Panel Typical	3.3V
  Supply Current Typical	20mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Typical	18.6V
  Forward Current Minimum	15mA

  Forward Current Typical

  20mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Controller Documents	Ilitek ILI9806E a-Si TFT LCD Single-Chip Driver 480(RGB)x864 Resolution, 16.7M-color Without internal GRAM
  Interface	DOT-CLK interface / Generic RGB, SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAF480640C0-035BC Datasheet


• download Files and Downloads
  folder_zip Software Source - Demo/Bringup Code 16-Bit


  folder_zip Software Source - Demo/Bringup Code 24-Bit


  folder_zip Hardware Design - 3D Model

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
