                In order to keep this display in production over the long term, we are revising it to the CFAF320480C7-035TR. Any backorders placed now will be fulfilled with the new part when it becomes available. Please contact support@crystalfontz.com with any questions.

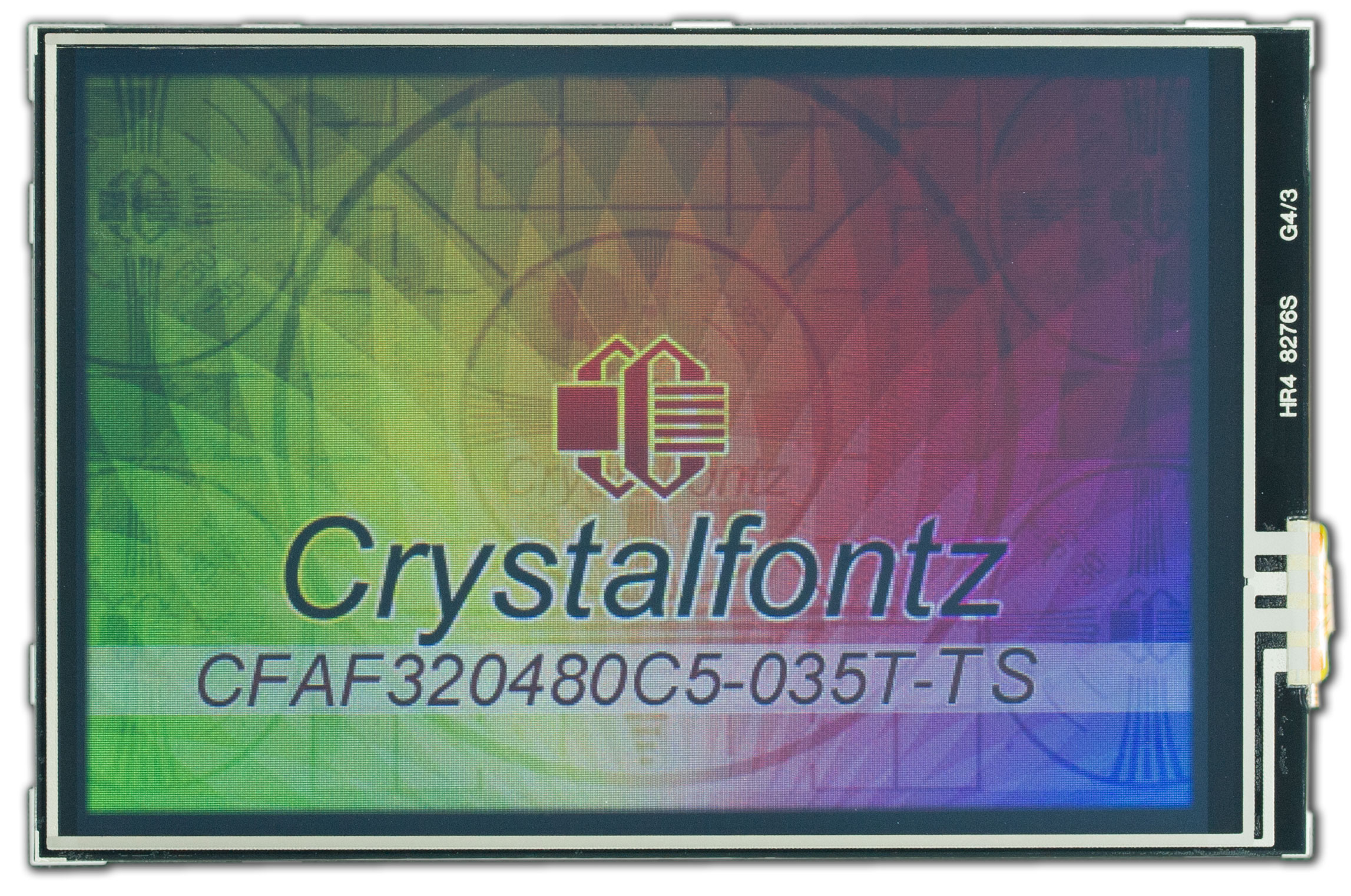

320x480 3.5" Touch Screen Color TFTPart Number: CFAF320480C5-035T-TS
    This  320x480 TFT is full-color graphic 3.5" diagonal display module with a 4-wire analog touch screen. This display module has lots of choices for host interface: 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, and SPI. Our customers find many uses for this display, including portable instruments such as thermal analysis devices.

You only need a single 3v source for both power and logic.
This TFT has an integrated Himax HX8357-B or compatible display controller.

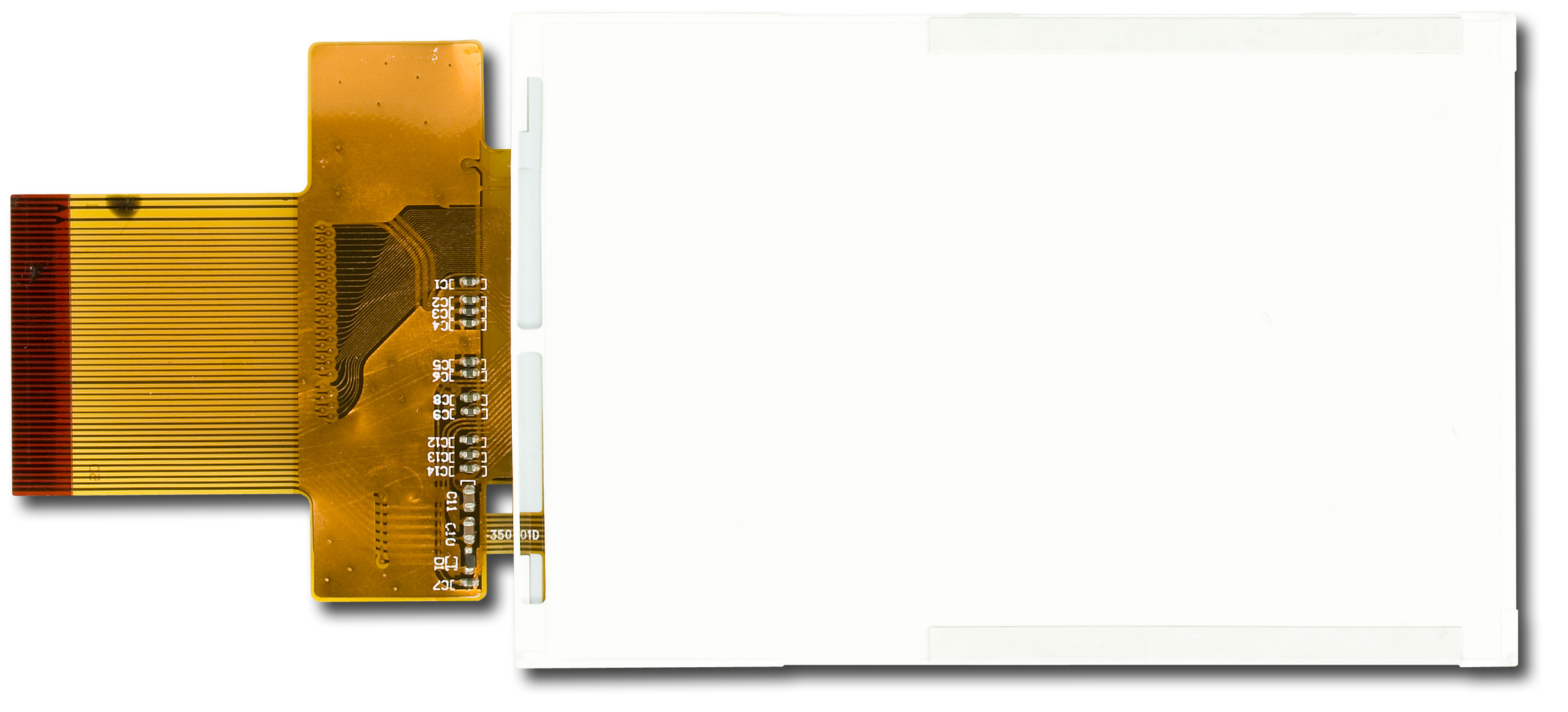

The white LED backlight has anode (A,+) and cathode (K, -) pins brought out on the  50-pin FPC.
For easy connection, the FPC mates with standard 0.5mm ZIF sockets such as this 50 Position, 0.50mm Pitch ZIF Connector
Operating temperature range is from -20°C to +70°C.
This CFAF320480C5-035T-TS is an identical replacement for the discontinued CFAF320480C4-035T-TS.

Need help? Our free knowledgeable Technical Support is happy to answer your questions anytime.
Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 480

    Module Overall        width
        height
        depth

        millimeters
        55.5
        84.96
        3.75

        inches
        2.19
        3.35
        0.15

*width / height does not include Foldable Tab

        Diagonal Dimension
            3.47"

    Viewing Area        Width
        Height

        millimeters
        52.96
        75.44

        inches
        2.09
        2.97

    Active Area        Width
        Height

        millimeters
        48.96
        73.44

        inches
        1.93
        2.89

    Dot Pitch        Width
        Height

        millimeters
        0.051
        0.051

        inches
        0.0020
        0.0020

        Optional Connectors
            CS050Z50GB0

        Weight
            28g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Direction
            0.25 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            1.7V
Supply Voltage for Logic Maximum
            3.3V

        Supply Voltage for Logic Typical
            1.8V
Supply Current Typical
            10mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.2V

        Forward Current Typical
            90mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        max

        Non-condensing
        90%

 cable Electronics
Electronics

        Controller Documents
            Himax HX8357-B
HX8357-B

320RGB x 480 dot, 262K color,

with internal GRAM,

TFT Mobile Single Chip Driver
Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF320480C5035TTS Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAF320480C5-035T-TS Datasheet Release 2015-12-02.pdf

 download Files and Downloads
 Software Source - CFA10055/CFAF320480C4 or CFAF320480C5 memory mapped I/O example
folder_zip CAD Export - CFAF320480C4-035T-TS 2D CAD
picture_as_pdf 1 to 1 Template - CFAF320480C5-035T-TS 1 to 1 Module Outline

Module Overall	width	height	depth
millimeters	55.5	84.96	3.75
inches	2.19	3.35	0.15
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	52.96	75.44
inches	2.09	2.97

Active Area	Width	Height
millimeters	48.96	73.44
inches	1.93	2.89

Dot Pitch	Width	Height
millimeters	0.051	0.051
inches	0.0020	0.0020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	max
Non-condensing	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11173: 320x480 Full-Color Resistive Touchscreen TFT Display is now available

Product Affected:	CFAF320480C5-035T-TS
Date Issued:	February 3, 2023
Summary:	320x480 Full-Color Resistive Touchscreen TFT Display is now available
Description:	The replacement part, CFAF320480C7-035TR, has been released on our website and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions. The new product can be found here: https://www.crystalfontz.com/product/cfaf320480c7035tr-320x480-resistive-touchscreen-tft-display

End-Of-Life #11122: End-Of-Life Notification

Product Affected:	CFAF320480C5-035T-TS
Date Issued:	May 17, 2022
Summary:	End-Of-Life Notification
Description:	The HX8357B display controller used on this display has gone EOL. We will be releasing new displays that use the ILI9488 display controller. For more information about the replacement display, contact support.
Reason:	The display controller, HX8357B, has gone EOL and needs to be replaced by another one.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Product Update #10677: (New Product) CFAF320480C5-035T-TS

New Product:	CFAF320480C5-035T-TS
Date Issued:	October 21, 2015
Summary:	(New Product) CFAF320480C5-035T-TS
Description:	TFT LCD Modules: 320xRGBx480 3.5" TFT with touch screen., Integrated Himax HX8357-B or compatible controller., Several interface modes.
