Name: 3" TFT LCD with Carrier Board
Brand: Crystalfontz
SKU: CFAF240400A0E21
Price: 65.63 USD
Availability: OutOfStock

Product

Home » Products » Accessories » Carrier Boards

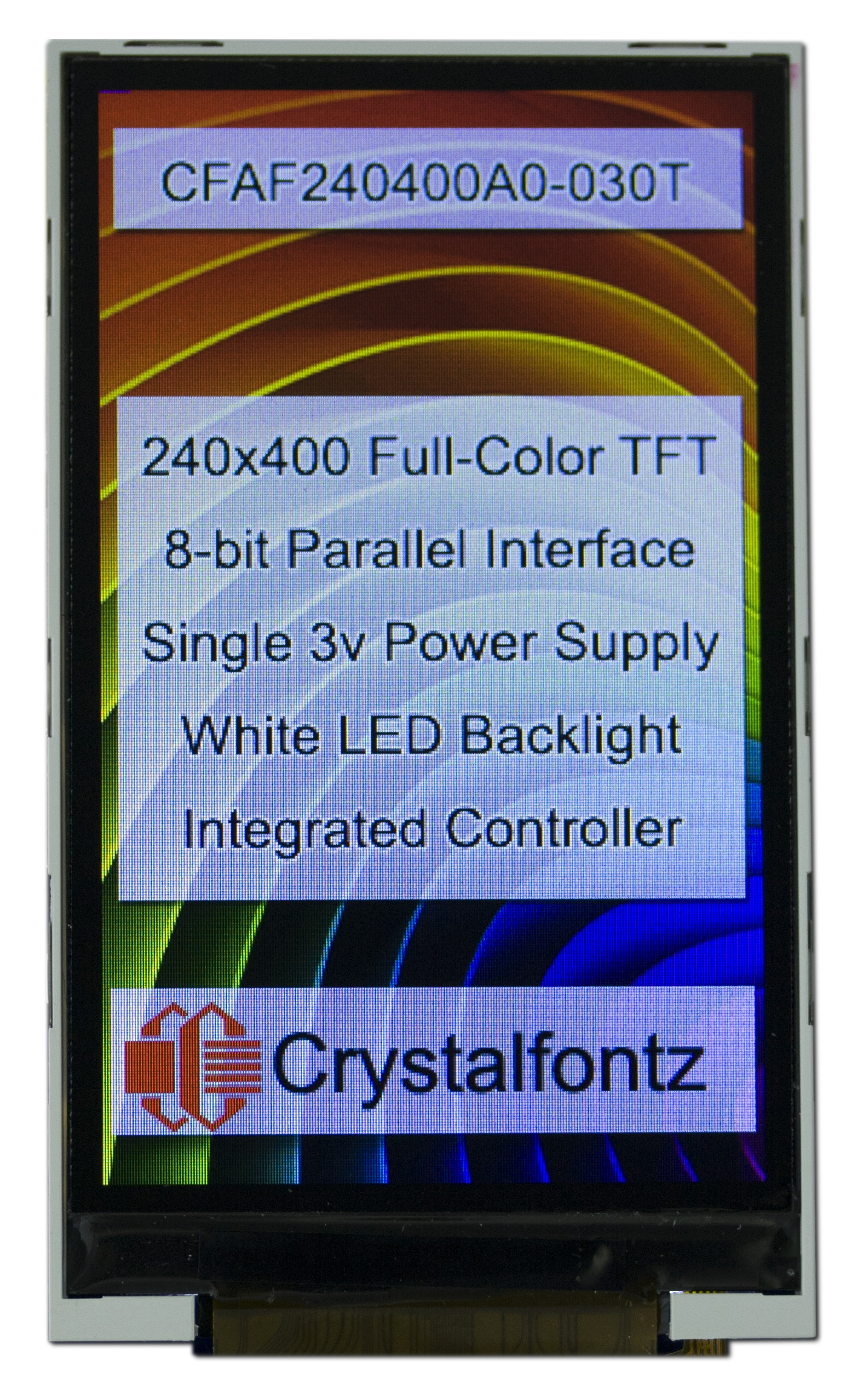

            3" TFT LCD with Carrier Board
            Part Number: CFAF240400A0-E2-1

                        This TFT LCD development kit consists of a 8-bit 3" TFT LCD module mounted on a carrier board that includes a backlight driver. This carrier board is integrated with standoffs for easy installation into your product. square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 400

    Module Overall        width
        height

        millimeters
        45.04
        77

        inches
        1.77
        3.03

        Diagonal Dimension
            2.98"

        Weight
            40g

picture_as_pdf Datasheets
picture_as_pdfCFAF240400A0-030T Datasheet

download Files and Downloads
folder_zip Software Source - Arduino Demo Sketch
folder_zip Software Source - ATMega 2561 Demonstration Code
folder_zip Hardware Design - Carrier Board Build Package
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1 *
            $65.63

            10 *
            $63.75

            20 *
            $61.88

            50 *
            $59.63

            100 *
            $58.88

            200 *
            $58.50

            300 *
            $57.75

            500 *
            $57.38

            1000 *
            $57.00

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
* Sign up to be notified when we these are back in-stock.

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

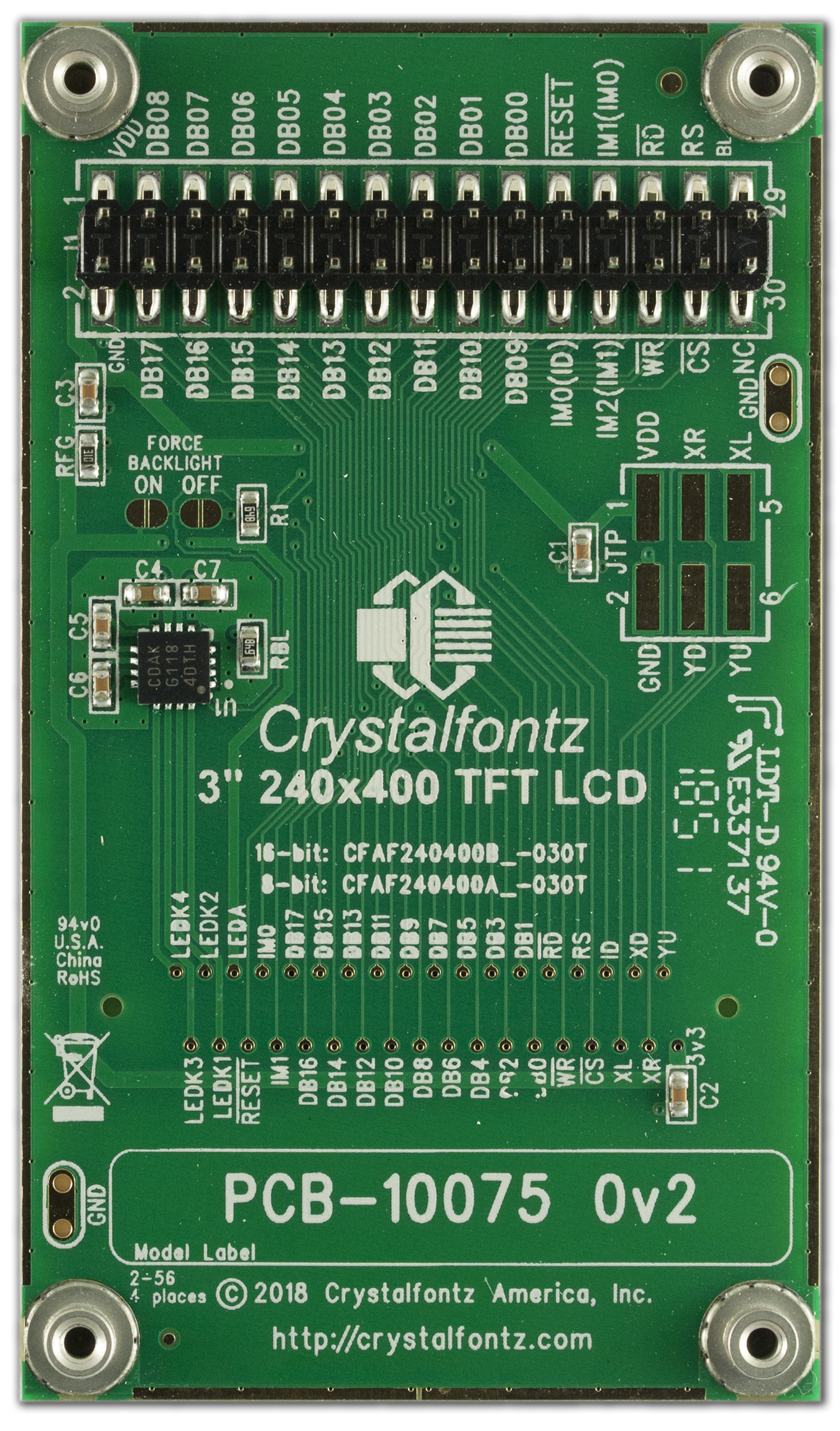

Part Change Notice #11038: The CFA10075 Carrier Board Version 0v1 used in the parts listed is being changed. The new version will be 0v2.

Products Affected:	CFAF240400A0-E1-1, CFAF240400A0-E2-1, CFAF240400A0-E1-2, CFAF240400B0-E1-1, CFAF240400B0-E2-1
Date Issued:	February 6, 2019
Summary:	The CFA10075 Carrier Board Version 0v1 used in the parts listed is being changed. The new version will be 0v2.
Reason:	The backlight driver has been improved. The backlight can now be forced on or off using solder jumpers.
Impact:	The function of the board has no other changes. The default configuration will be with the backlight on.
Recommendation:	Customers using this board should not see any changes in form, fit or function.
Availability:	The Version 0v2 board will be available when current stocks of Version 0v1 are depleted.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF240400A0-E2-1
