                This display is end-of-life. We recommend using the 2" Color TFT instead.

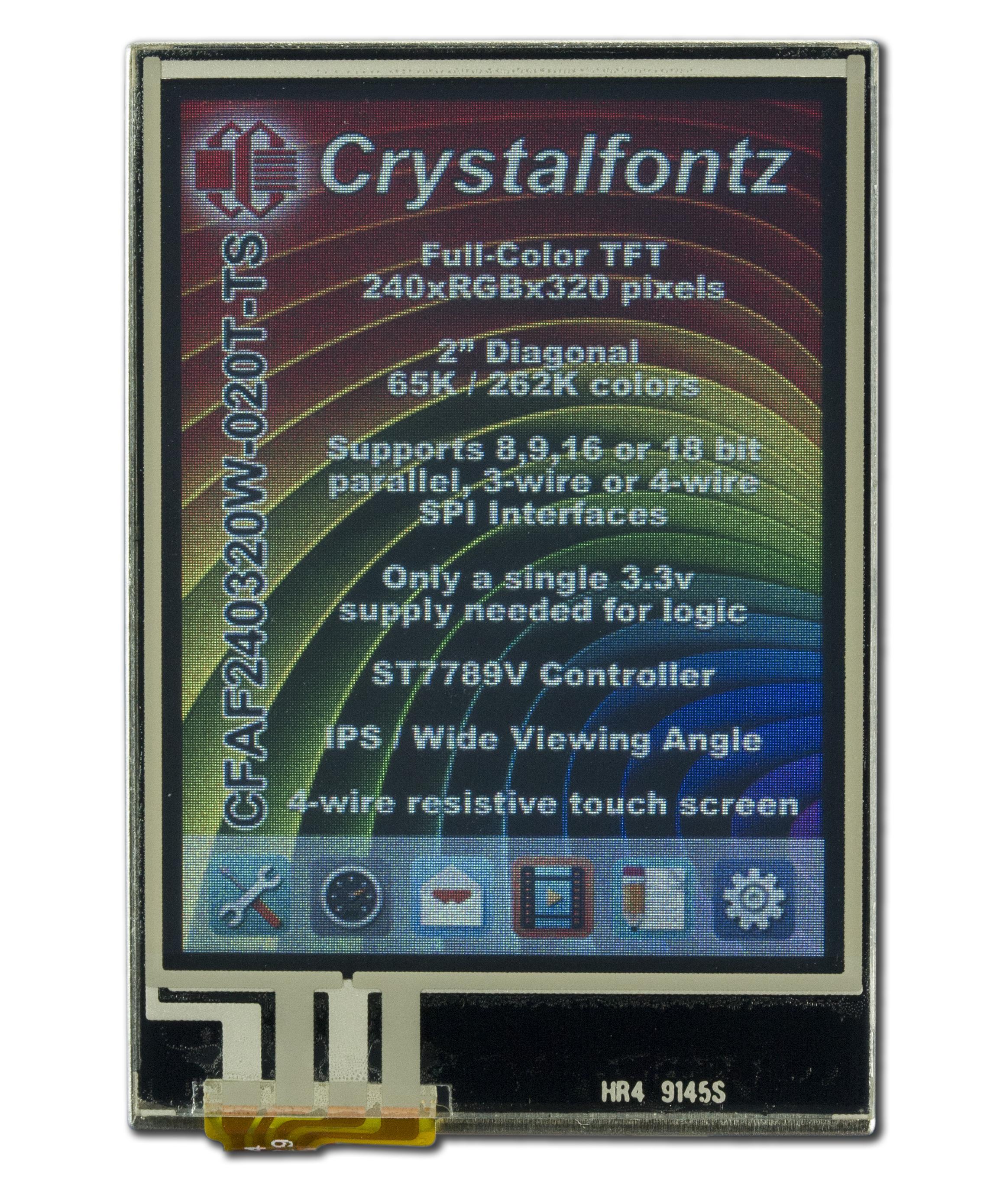

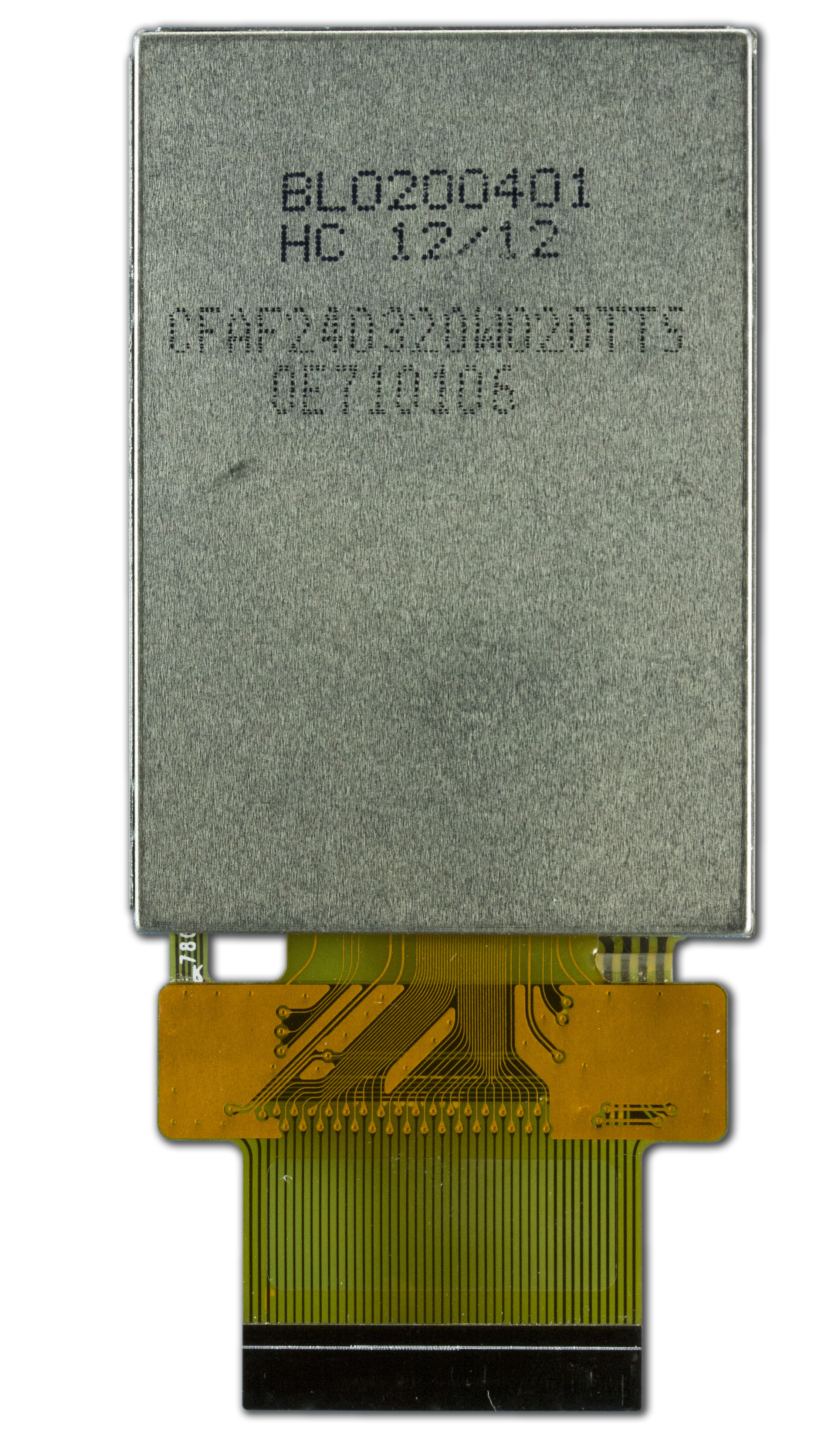

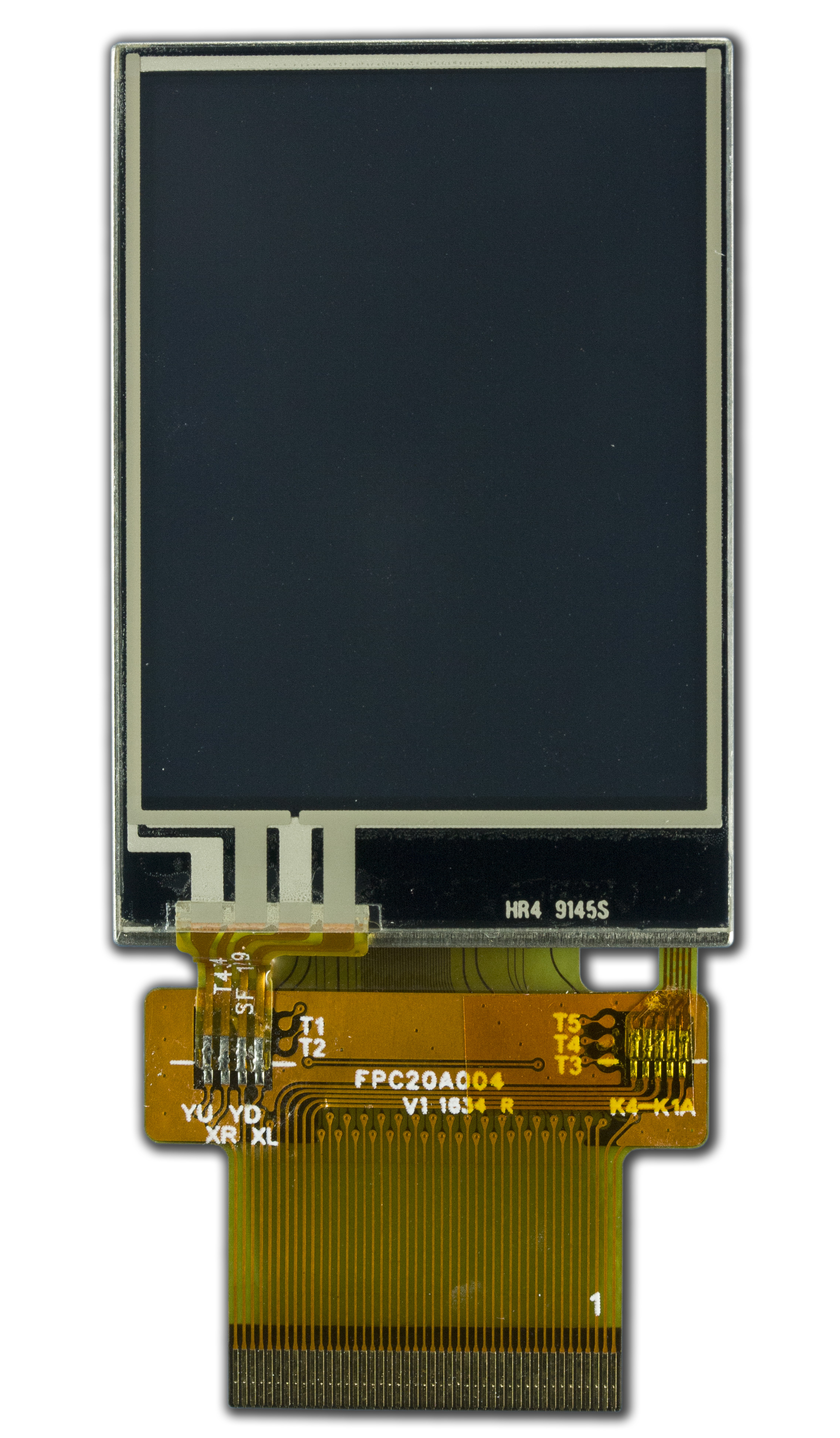

2" IPS Touchscreen TFT DisplayPart Number: CFAF240320W-020T-TSThe CFAF240320W-020T-TS IPS TFT boasts vibrant, full color images at 200 PPI (Pixels Per Inch) in a compact 2" package for crystal clear, sharp images and text perfect for small applications and up close viewing.  This touchscreen IPS TFT display has a wider viewing angle than a TN TFT display.
The CFAF240320W-020T-TS connects to the host via a single 45-pin ZIF connector, allowing for quick and easy installation. The display supports a wide variety of interfaces, including parallel, SPI, and RGB DOT-CLK to work seamlessly with a large variety of host devices.
Resistive touch screen.
Full color.
Can communicate with a wide variety of interfaces:
 4-wire SPI with an 8-bit transfer.
3-wire SPI with a 9-bit transfer.
Parallel interface 8, 9, 16 or 18 bits wide suitable for connecting to a micro-controller.
18-bit RGB/dot-clock interface for interfacing to microprocessors that have hardware framebuffer support.
Extremely high pixel density and resolution (200 pixels per inch at 240x320).
Integrated Sitronix ST7789V controller.
Operates in a wide range of temperatures (-20c to +70c).
This IPS TFT display is also available without a touchscreen, the CFAF240320W-020T.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320


    Module Overall        width
        height
        depth


        millimeters
        35.8
        52.1
        2.65


        inches
        1.41
        2.05
        0.10

*width / height does not include Foldable Tab


        Diagonal Dimension
            2.01"


    Viewing Area        Width
        Height


        millimeters
        30.6
        40.8


        inches
        1.21
        1.61



    Active Area        Width
        Height


        millimeters
        30.6
        40.8


        inches
        1.21
        1.61



    Dot Pitch        Width
        Height


        millimeters
        0.1275
        0.1275


        inches
        0.0050
        0.0050



        Optional Connectors
            CS050Z45GB0


        Weight
            10.7g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            IPS
Polarizer
            Transmissive
Sunlight Readable
            yes


        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            1.65V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            3.3V


        Supply Voltage for Driving Panel Typical
            3.3V
Supply Current Typical
            7mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.2V
Forward Current Minimum
            60mA


        Forward Current Typical
            80mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7789V
Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver


Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320W020T Datasheet

 download Files and Downloads
folder_zip Software Source - 3.3v Seeeduino / Arduino SPI Demonostration Code

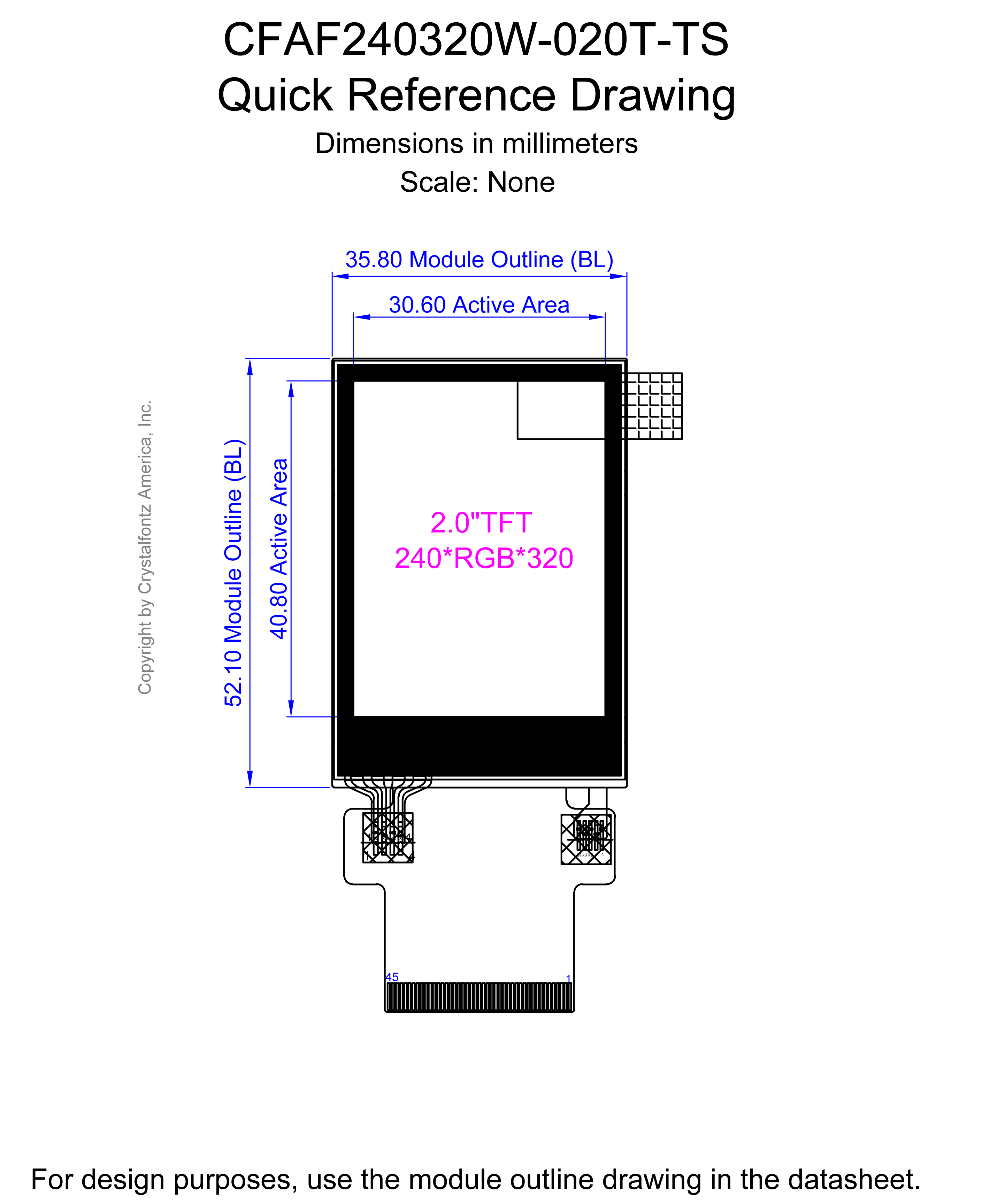

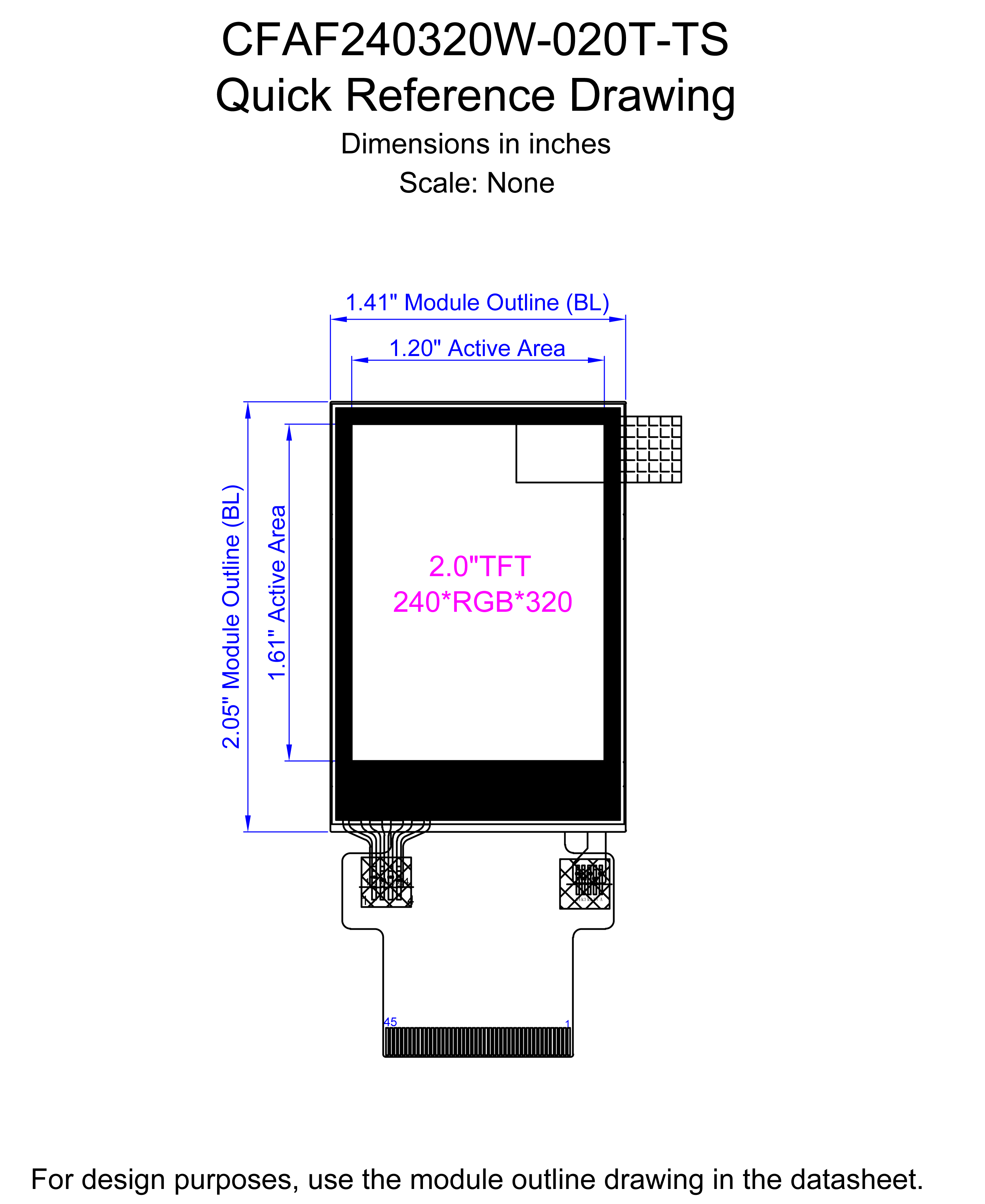

picture_as_pdf 1 to 1 Template - CFAF240320W-020T-TS Module Outline 1 to 1

















Module Overall	width	height	depth
millimeters	35.8	52.1	2.65
inches	1.41	2.05	0.10
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	30.6	40.8
inches	1.21	1.61

Active Area	Width	Height
millimeters	30.6	40.8
inches	1.21	1.61

Dot Pitch	Width	Height
millimeters	0.1275	0.1275
inches	0.0050	0.0050

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Additional Options
Notices

Additional Options

Purchase a complete demonstration kit or a carrier board to get this display up and running quickly and easily.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10913: End-of-Life Notice

Products Affected:	CFAF240320V-020T, CFAF240320V-020T-TS, CFAF240320W-020T, CFAF240320W-020T-TS, CFAF240320W0-E1-2, CFAF240320W0-TS-E1-2, CFAF240320W0-TS-E1-1, CFAF240320W0-E1-1
Date Issued:	December 21, 2017
Summary:	End-of-Life Notice
Description:	An equal and less expensive replacement has been developed.
Impact:	When current stocks of these parts are depleted the parts will no longer be available
Recommendation:	New designs should be based on the replacement part CFAF240320X0-020T
Availability:	The replacement part CFAF240320X0-020T is available now. Development kits are also available: CFAF240320X0-020T-E1-1 CFAF240320X0-020T-E1-2
Price Change:	Current pricing for the CFAF240320X0-020T is shown on the web page. https://www.crystalfontz.com/product/cfaf240320x0020t-2inch-240x320-color-tft

Product Update #10826: (New Product) CFAF240320W-020T-TS

New Product:	CFAF240320W-020T-TS
Date Issued:	January 27, 2017
Summary:	(New Product) CFAF240320W-020T-TS
Description:	TFT LCD Modules: The CFAF240320W-020T-TS IPS TFT boasts vibrant, full color images at 200 PPI (Pixels Per Inch) in a compact 2” package for crystal clear, sharp images and text perfect for small applications and up close viewing. This touchscreen IPS TFT display has a wider viewing angle than a TN TFT display. The CFAF240320W-020T-TS connects to the host via a single 45-pin ZIF connector, allowing for quick and easy installation. The display supports a wide variety of interfaces, including parallel, SPI, and RGB DOT-CLK to work seamlessly with a large variety of host devices. Resistive touch screen. Full color. Can communicate with a wide variety of interfaces: 4-wire SPI with an 8-bit transfer. 3-wire SPI with a 9-bit transfer. Parallel interface 8, 9, 16 or 18 bits wide suitable for connecting to a micro-controller. 18-bit RGB/dot-clock interface for interfacing to microprocessors that have hardware framebuffer support. Extremely high pixel density and resolution (200 pixels per inch at 240x320). Integrated Sitronix ST7789V controller. Operates in a wide range of temperatures (-20c to +70c). This IPS TFT display is also available without a touchscreen, the CFAF240320W-020T. Watch our demonstration video:
