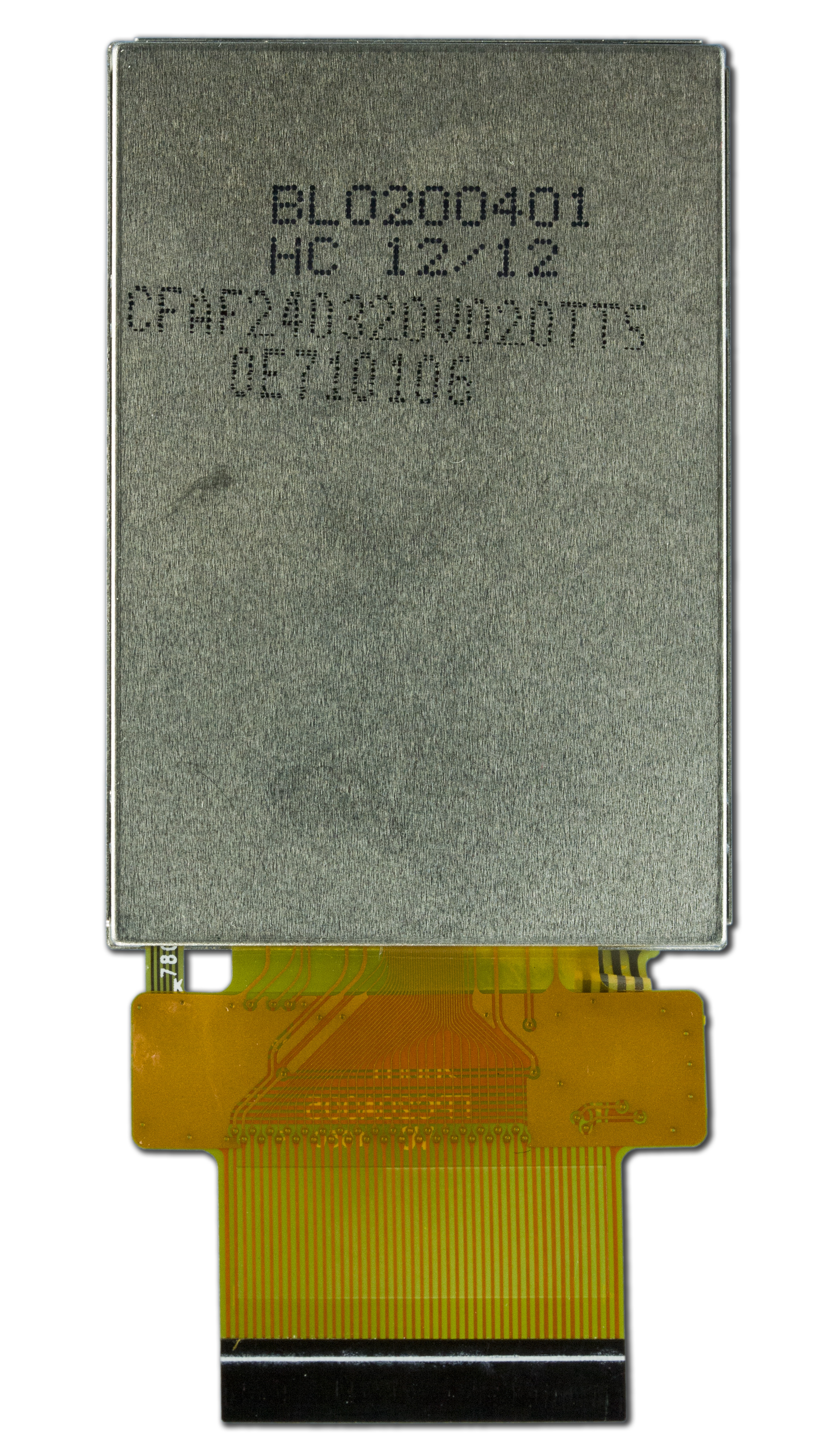

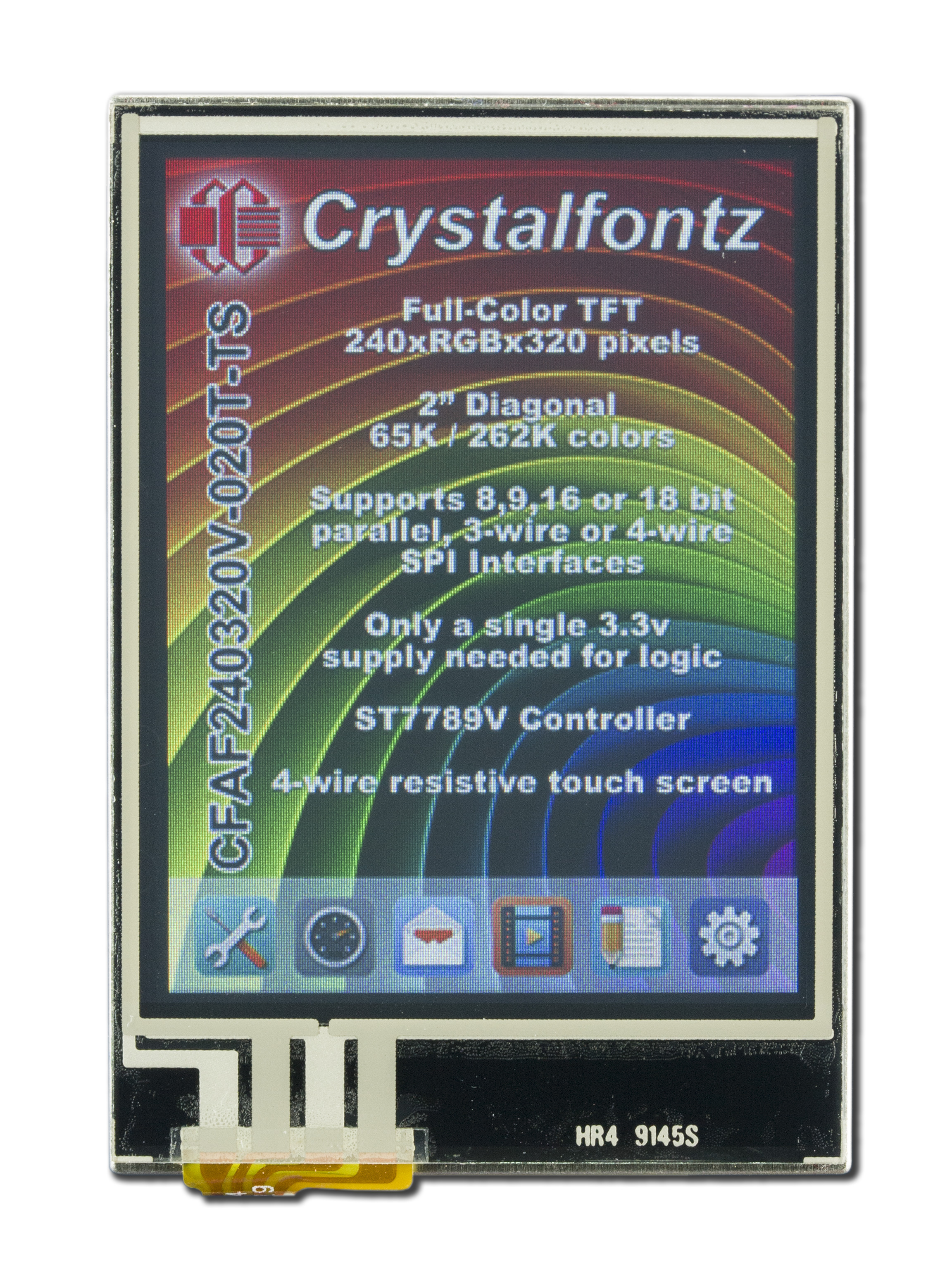

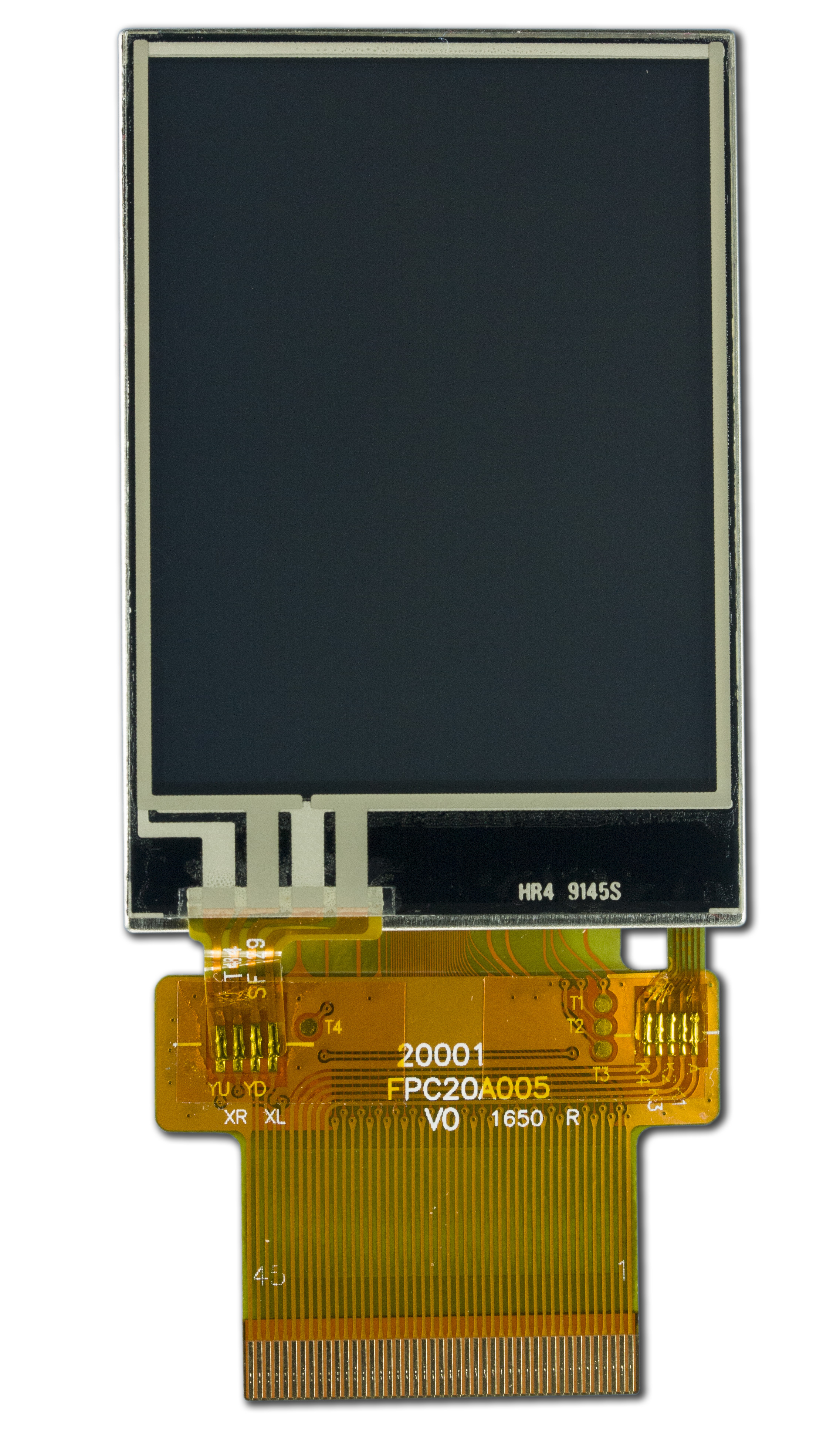

2" Touchscreen Color TFT 240x320

Part Number: CFAF240320V-020T-TS

The CFAF24032V-20T-TS display boasts vibrant, full color images at 200 PPI (Pixels Per Inch) in a compact 2" package for crystal clear, sharp images and text perfect for small applications and up close viewing. The resistive touch screen enables quick and easy user input to the host device.

The CFAF240320V-20T-TS connects to the host via a single 45-pin ZIF connector, allowing for quick and easy installation. This display supports a wide variety of interfaces, including parallel, SPI, and RGB DOT-CLK to work seamlessly with a large variety of host devices.

  • Resistive touch screen.
  • Can communicate with a wide variety of interfaces:
    • 4-wire SPI with an 8-bit transfer.
    • 3-wire SPI with a 9-bit transfer.
    • Parallel interface 8, 9, 16 or 18 bits wide suitable for connecting to a micro-controller.
    • 18-bit RGB/dot-clock interface for interfacing to microprocessors that have hardware framebuffer support.
  • Extremely high pixel density and resolution (200 pixels per inch at 240x320).
  • Full color.
  • Operates in a wide range of temperatures (-20c to +70c).
  • Integrated Sitronix ST7789V controller.

This display is also available without a touchscreen, the CFAF240320V-020T.


Order Soon! We only have 26 left!

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 240 x 320

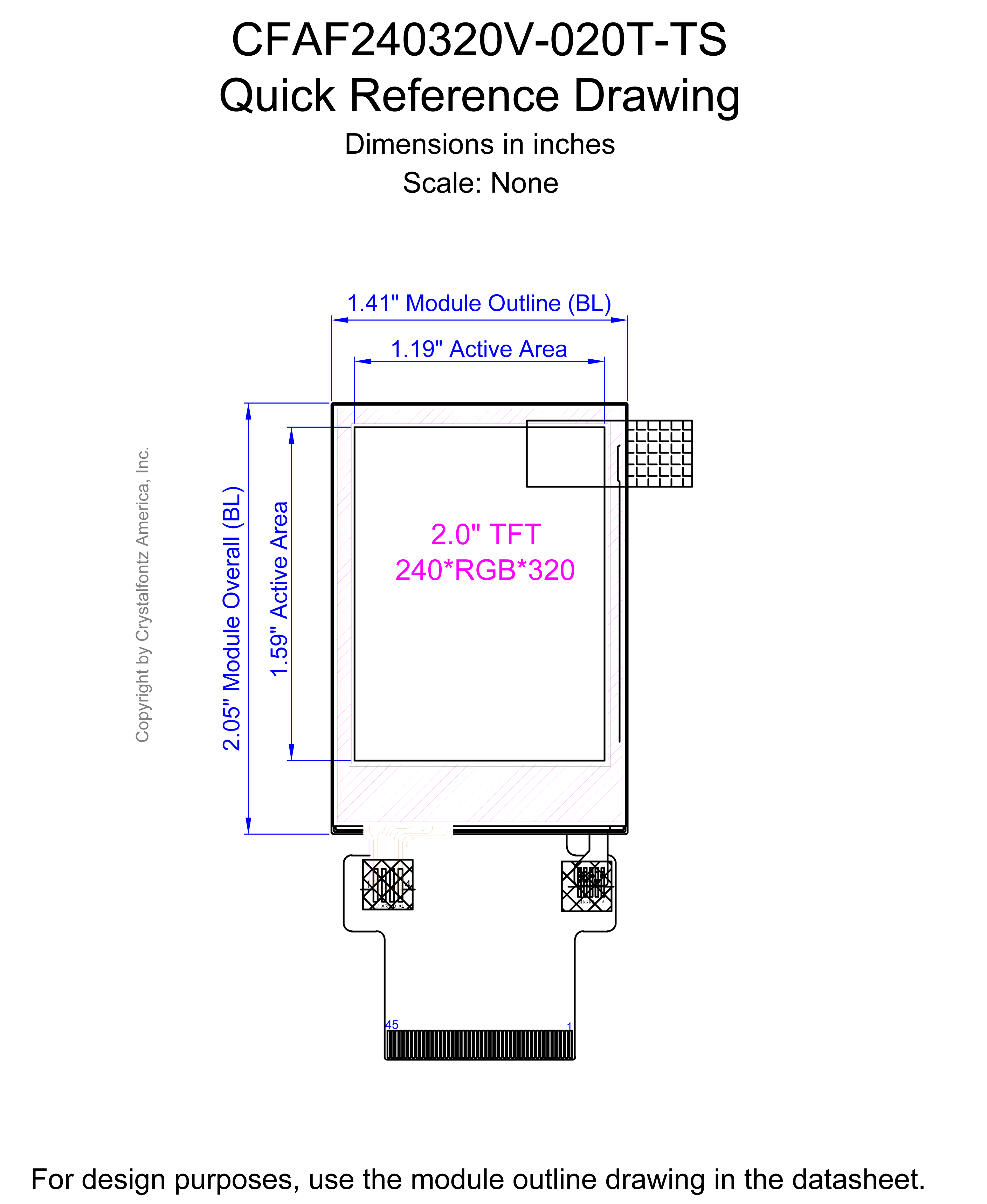

    Module Overall width height depth
    millimeters 35.8 52.1 2.65
    inches 1.41 2.05 0.10
    Diagonal Dimension 1.98"
    Active Area Width Height
    millimeters 30.24 40.32
    inches 1.19 1.59
    Dot Pitch Width Height
    millimeters 0.126 0.126
    inches 0.0050 0.0050
    Optional Connectors CS050Z45GB0
    Flexible Cable (FFC/FPC) length
    millimeters 27.25
    inches 1.073
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color TFT/Black
    Polarizer Transmissive
    View Direction 0.5 o'clock
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 2.4V
    Supply Voltage for Logic Maximum 3.3V
    Supply Voltage for Logic Typical 3.3V
    Supply Voltage for Driving Panel Typical 3.3V
    Supply Current Typical 7mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Typical 3.2V
    Forward Current Minimum 60mA
    Forward Current Typical 80mA
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Controller Documents Sitronix ST7789V
    Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver

    Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Unit Price
1 $14.95
26 Units In-Stock & Ready To Ship
Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering
4638 45 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Add 5 ZIF Connectors $1.50 ea.
4830 45-Position ZIF Breakout Board
Add a 45-pin ZIF Breakout Board? $6.54 ea.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240320V-020T-TS or RSS RSS feed for changes to CFAF240320V-020T-TS
  • text_snippet
    Part Change Notice #10913: End-of-Life Notice
    Products Affected: CFAF240320V-020T, CFAF240320V-020T-TS, CFAF240320W-020T, CFAF240320W-020T-TS, CFAF240320W0-E1-2, CFAF240320W0-TS-E1-2, CFAF240320W0-TS-E1-1, CFAF240320W0-E1-1
    Date Issued: December 21, 2017
    Summary: End-of-Life Notice
    Description: An equal and less expensive replacement has been developed.
    Impact: When current stocks of these parts are depleted the parts will no longer be available
    Recommendation: New designs should be based on the replacement part CFAF240320X0-020T
    Availability: The replacement part CFAF240320X0-020T is available now. Development kits are also available:

    CFAF240320X0-020T-E1-1
    CFAF240320X0-020T-E1-2
    Price Change: Current pricing for the CFAF240320X0-020T is shown on the web page. https://www.crystalfontz.com/product/cfaf240320x0020t-2inch-240x320-color-tft
