                This product has reached end of life. Please see our other 240x320 TFT Displays.

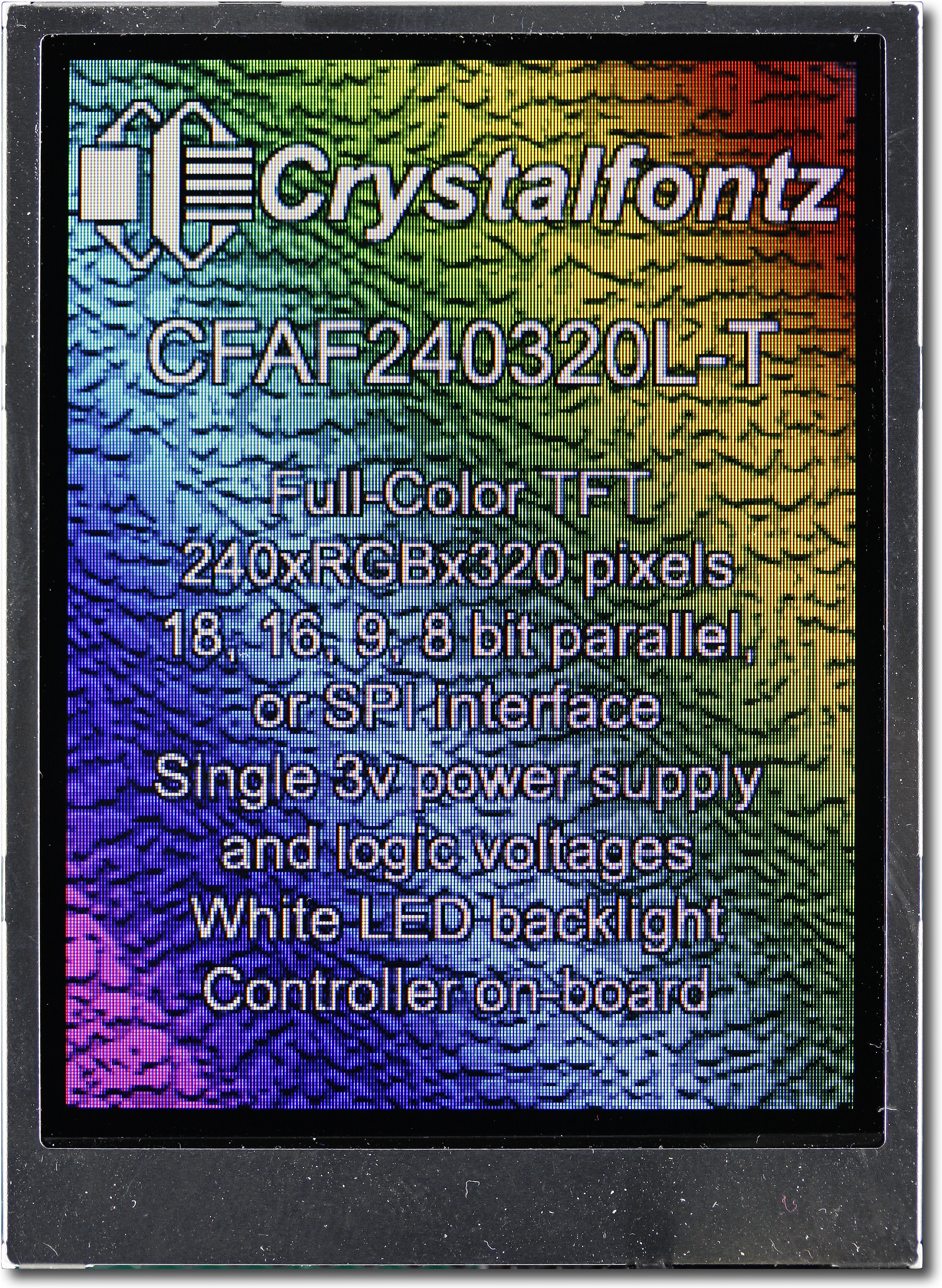

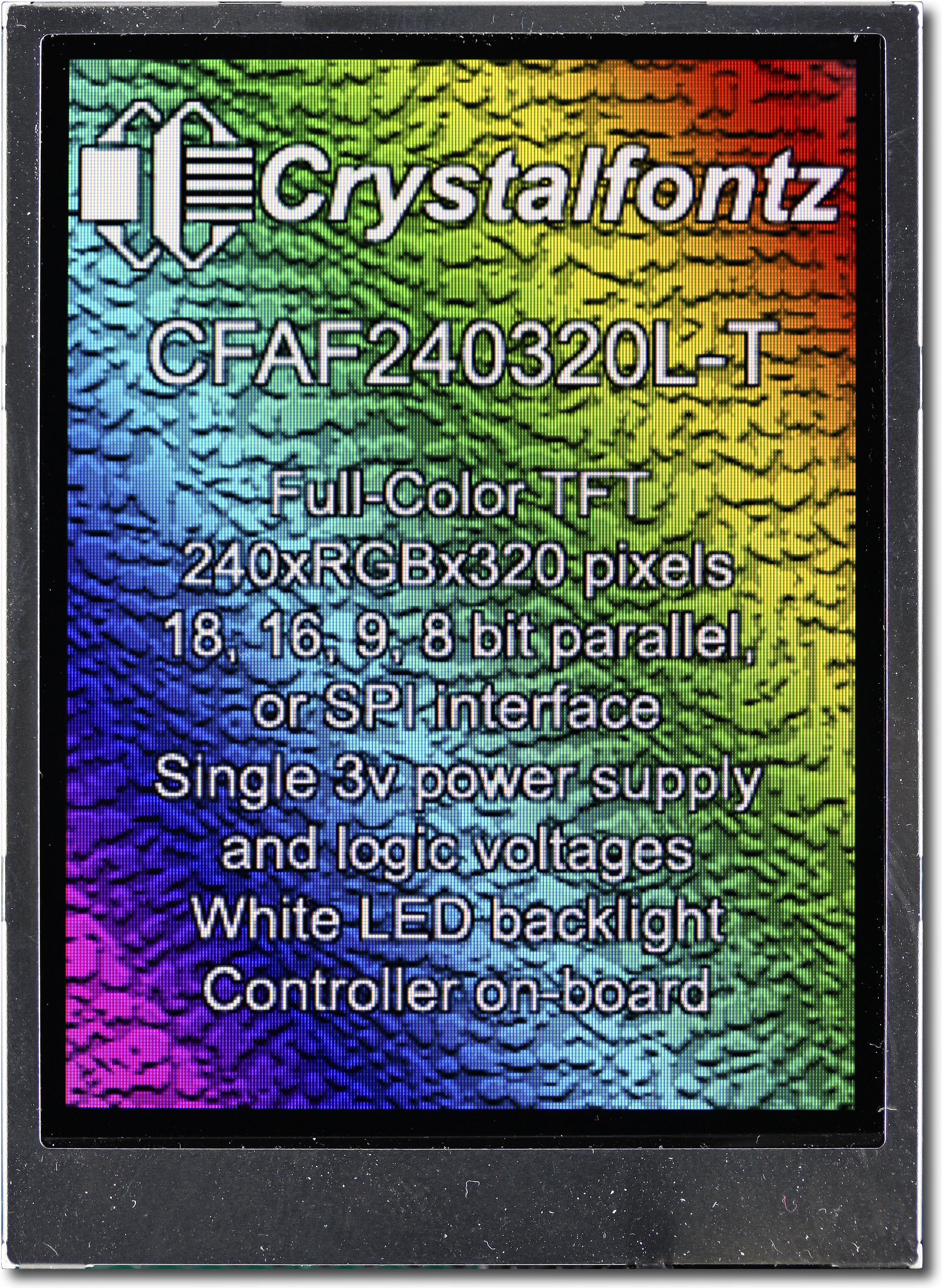

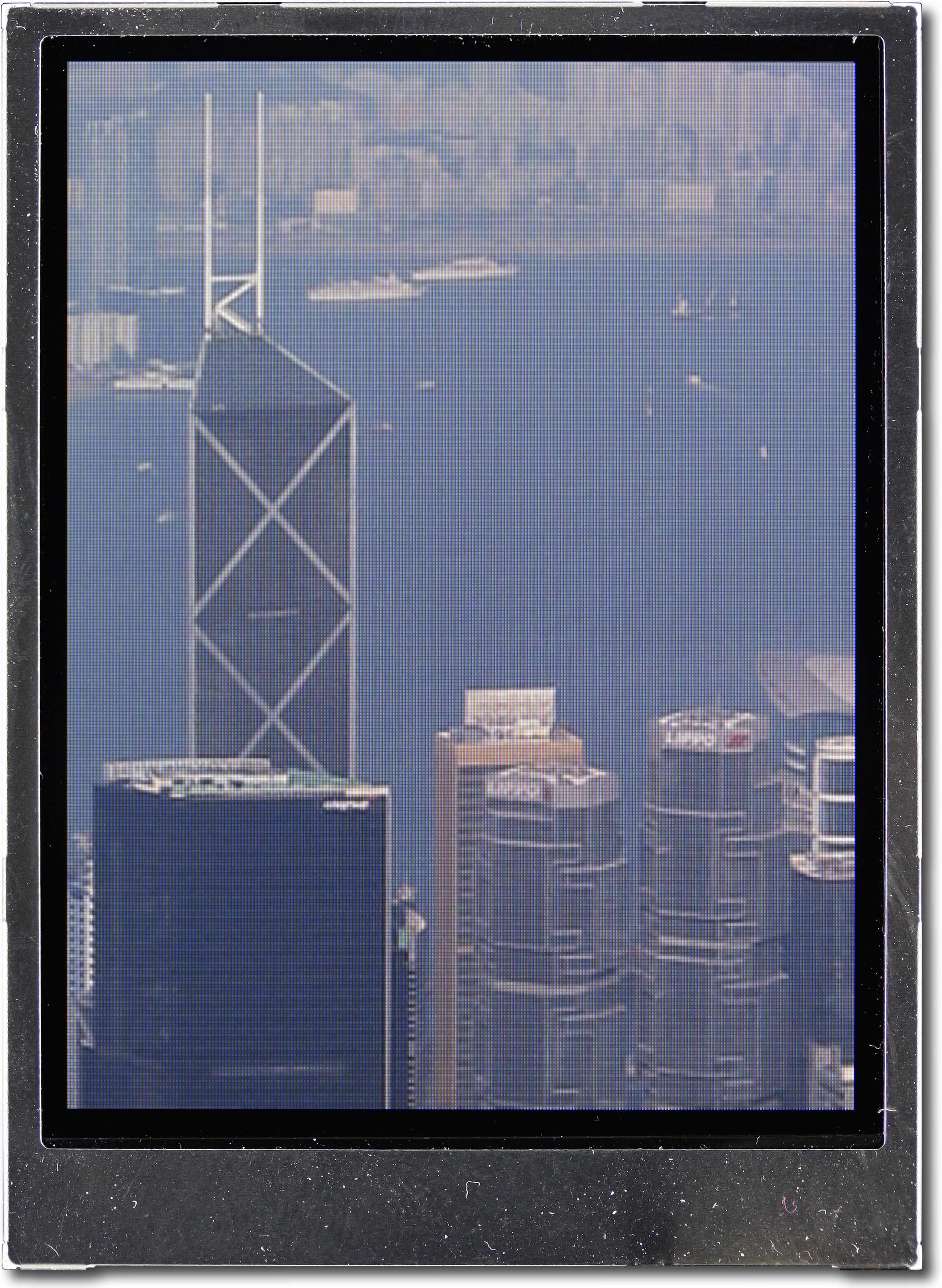

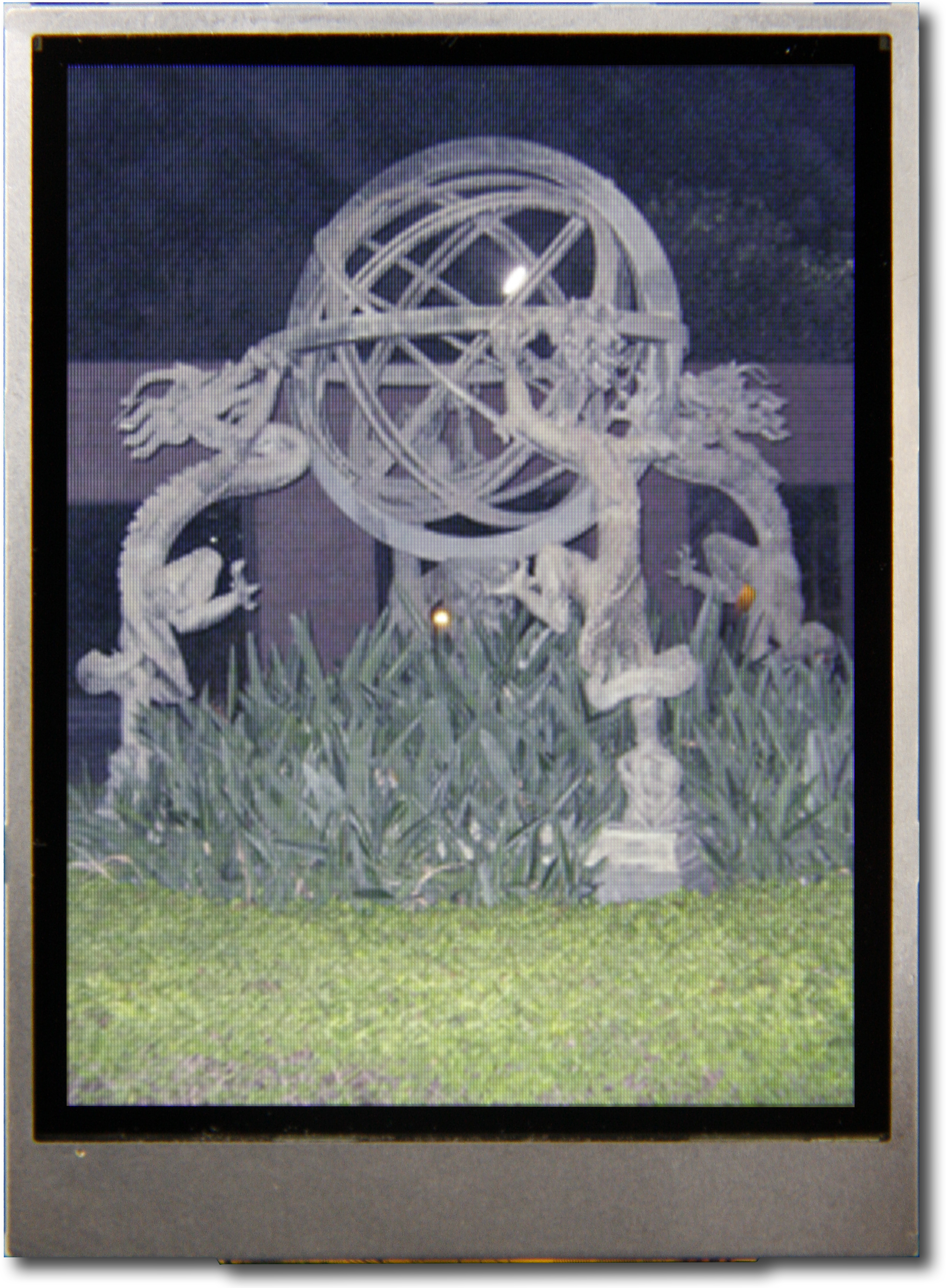

240x320  Parallel Color TFT [EOL]Part Number: CFAF240320L-TCFAF240320L-T 240xRGBx320 2.8 inch graphic TFT LCD display module
	240xRGBx320 Full color graphic TFT module
	Built-in ILItek ILI9325 or compatible controller
	18, 16, 9, 8-bit parallel, or SPI interface
	Wide Temperature Range
	RoHS Compliant
	White LED Backlight

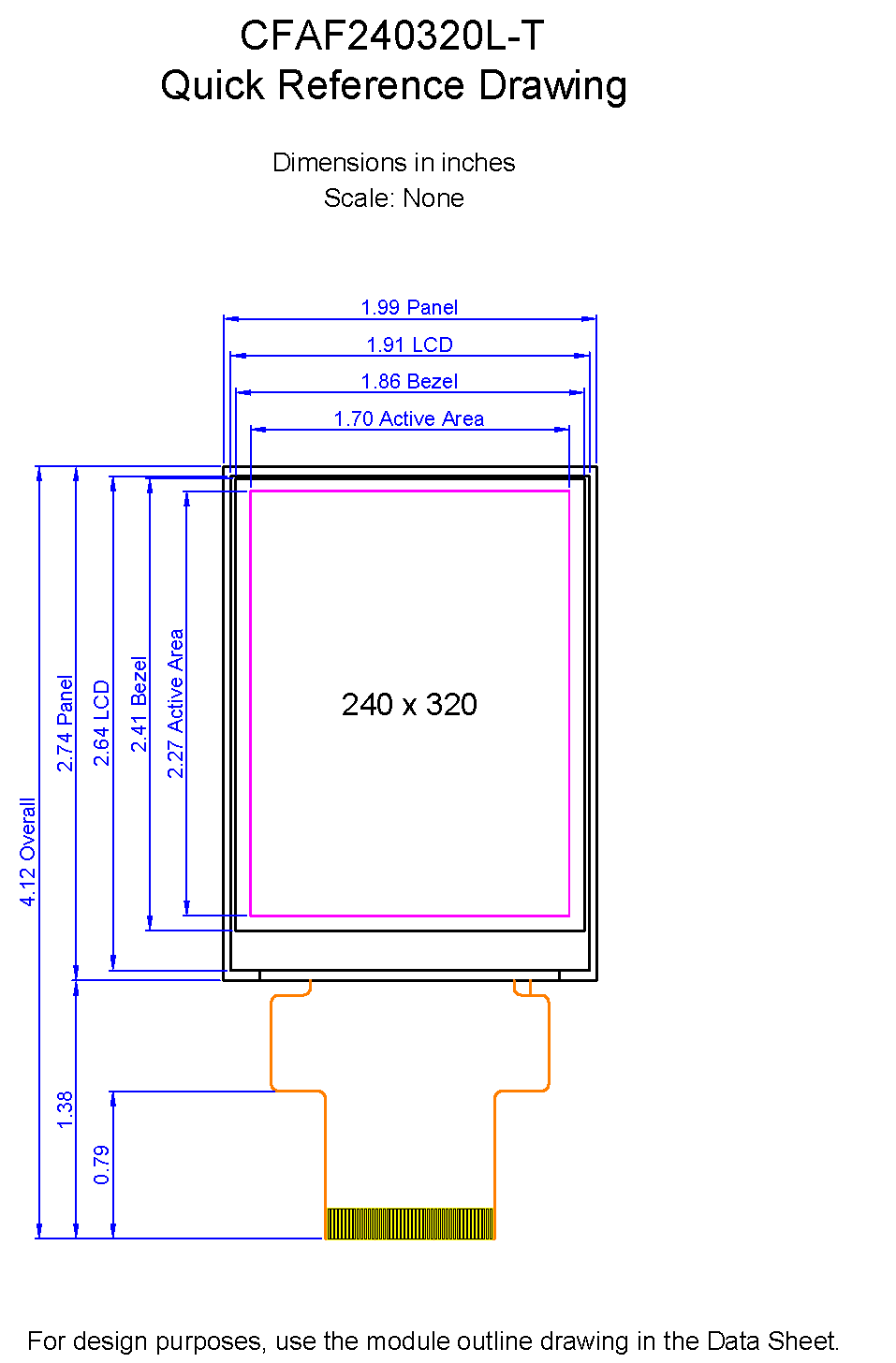

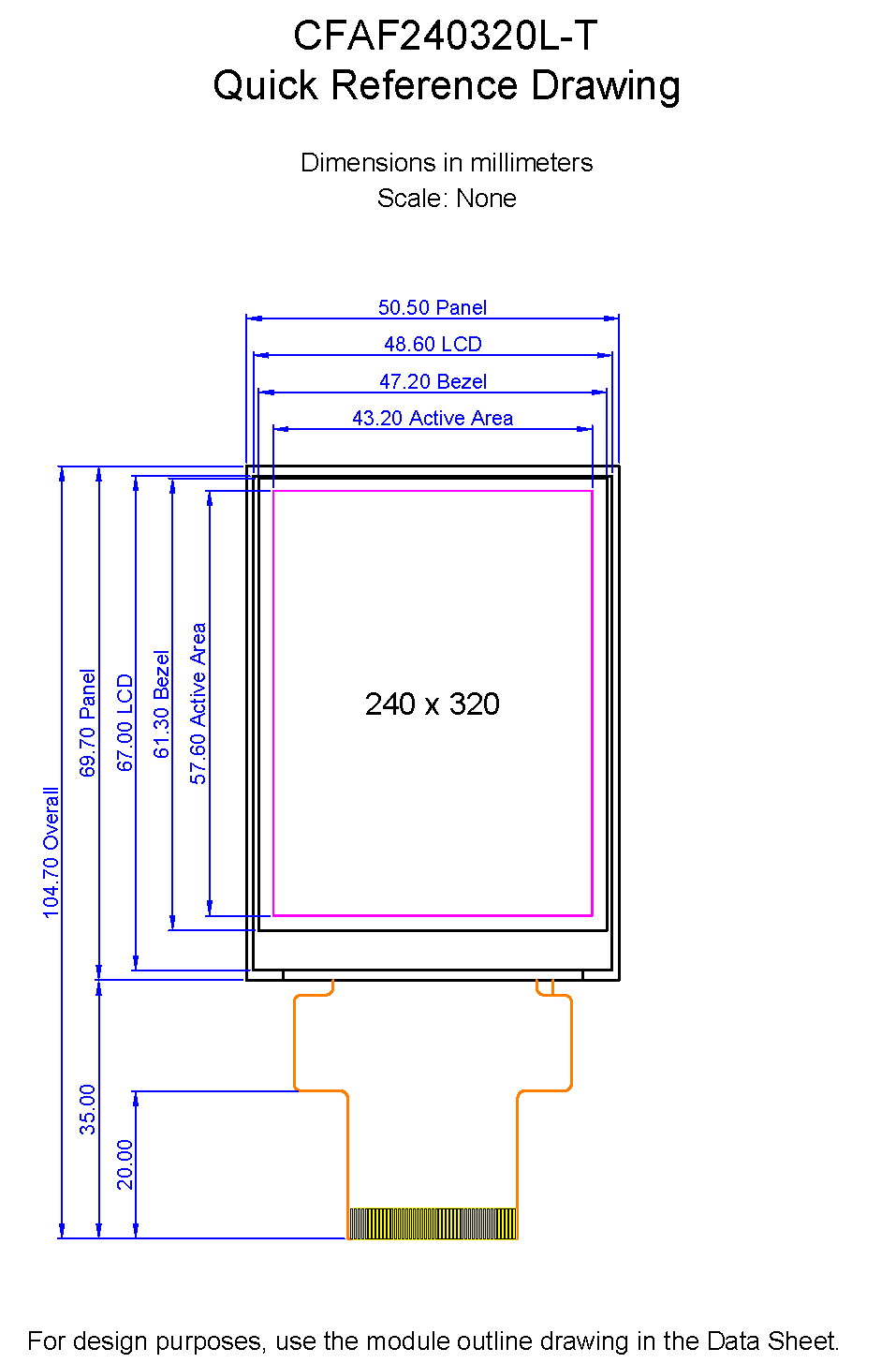

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320

    Module Overall        width
        height
        depth

        millimeters
        50.5
        69.7
        3.15

        inches
        1.99
        2.74
        0.12

        Diagonal Dimension
            2.83"

    Viewing Area        Width
        Height

        millimeters
        47.2
        61.3

        inches
        1.86
        2.41

    Active Area        Width
        Height

        millimeters
        57.6
        43.2

        inches
        2.27
        1.70

    Dot Pitch        Width
        Height

        millimeters
        0.18
        0.18

        inches
        0.007
        0.007

        Weight
            20g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Ilitek ILI9325
a-Si TFT LCD Single Chip Driver

240RGBx320 Resolution and 262K color
Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320LT.pdf

 download Files and Downloads
folder_zip CAD Export - CFAF240320L-T 2D CAD.ZIP
picture_as_pdf 1 to 1 Template - CFAF240320L-T 1 TO 1.PDF

240x320 Parallel Color TFT [EOL]

Part Number: CFAF240320L-T

Physical Characteristics

Optical Characteristics

Environmental

Electronics

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	TFT/Black
Polarizer	Transmissive
View Direction	6 o'clock

Backlight Color	White
Backlight Type	LED
Mode	Negative
Foreground Color	RGB
Background Color	Dark

Controller Documents	Ilitek ILI9325 a-Si TFT LCD Single Chip Driver 240RGBx320 Resolution and 262K color
Interface	16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, SPI
