                This product has reached end of life. Please see our other 240x320 TFT Displays.
ILItek ILI9325C 240x320 Color TFT [EOL]Part Number: CFAF240320K-T-TSThis graphic display module is a 2.4" diagonal, full color TFT.  Suitable for embedded applications, it is low-power, uses a white LED backlight, and has an integrated touch panel which has its connection brought out to the main TAB connector for the display.

It has an on-board controller and 3v single voltage for supply and logic (backlight not included), so you can easily use any modern microcontroller to interface with this display.  It uses an 8 or 16 bit parallel interface, specified via connections to the display.

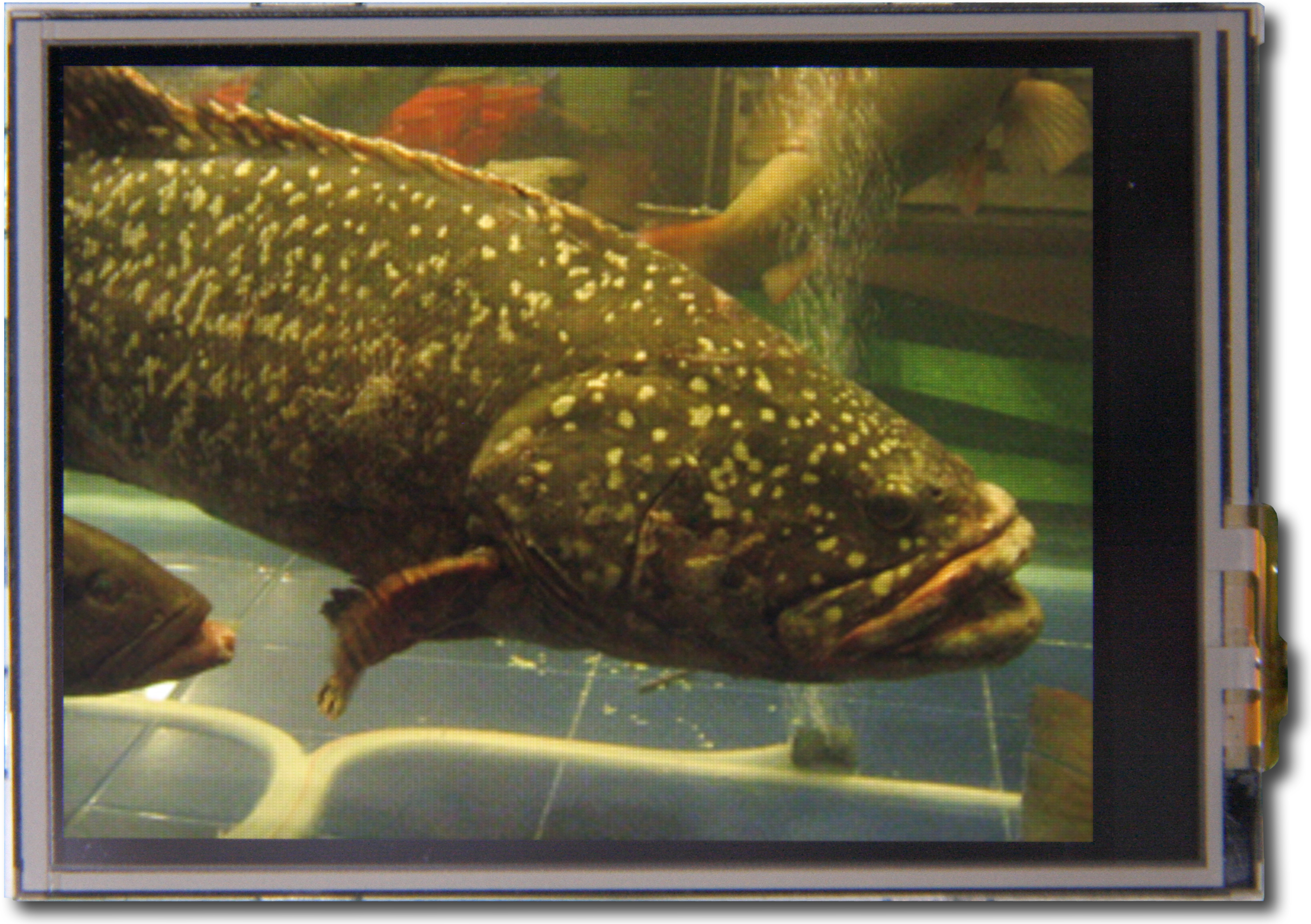

This module looks wonderful, displaying all information in living color.
	240xRGBx320 Full color graphic TFT module
	Built-in ILItek ILI9325C or compatible controller
	16/8 bit parallel interface
	Wide Temperature Range
	Touch panel included
	RoHS Compliant

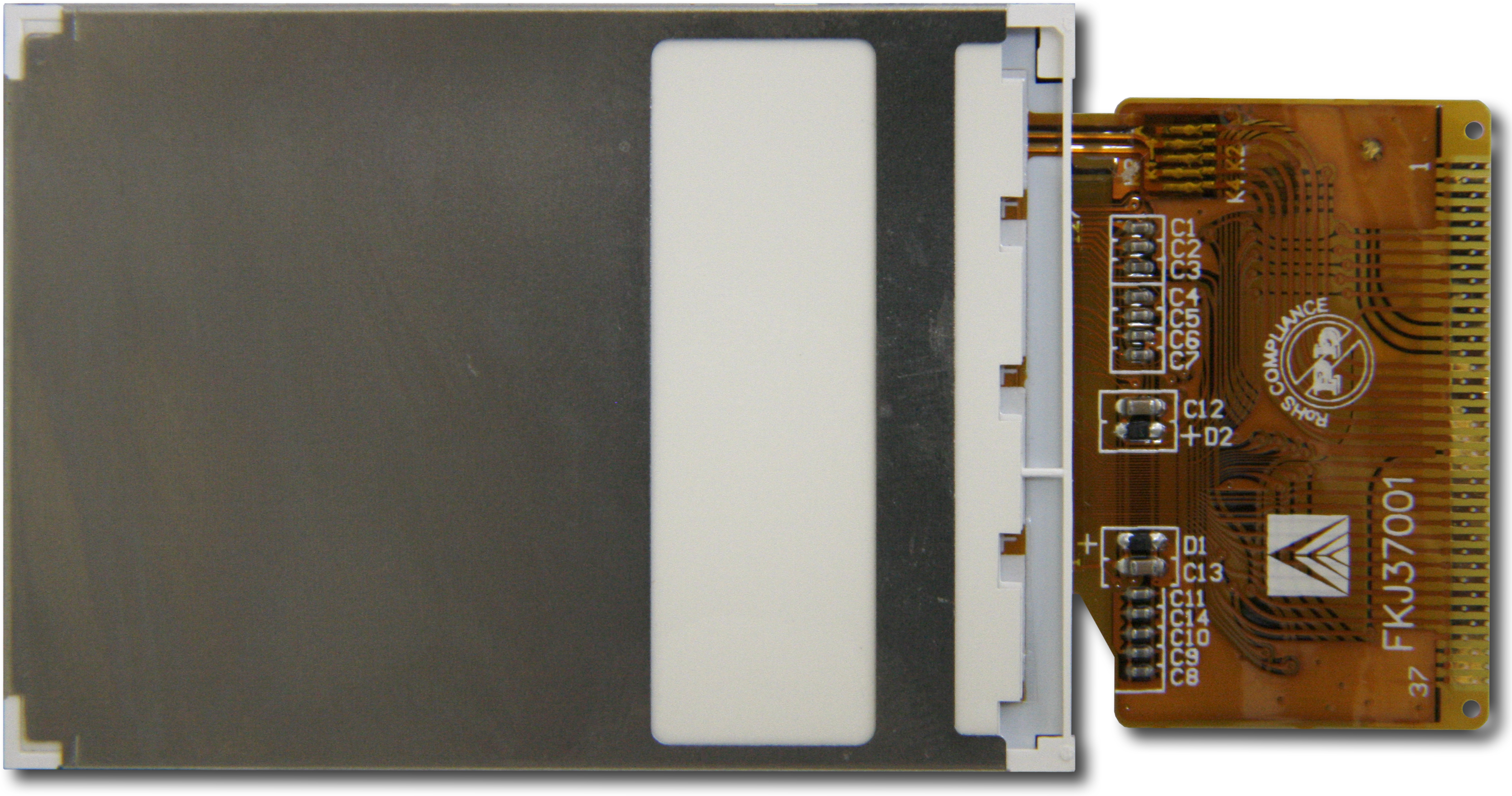

	The connector on the CFAF240320K-024T-TS is a flex tail mated with a "COG" (chip on glass) display construction. This style of connector is designed to be soldered directly to corresponding pads on your PCB by using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. There are hot-bar soldering machines made that are designed for prototype, rework or repair work of TAB connections.

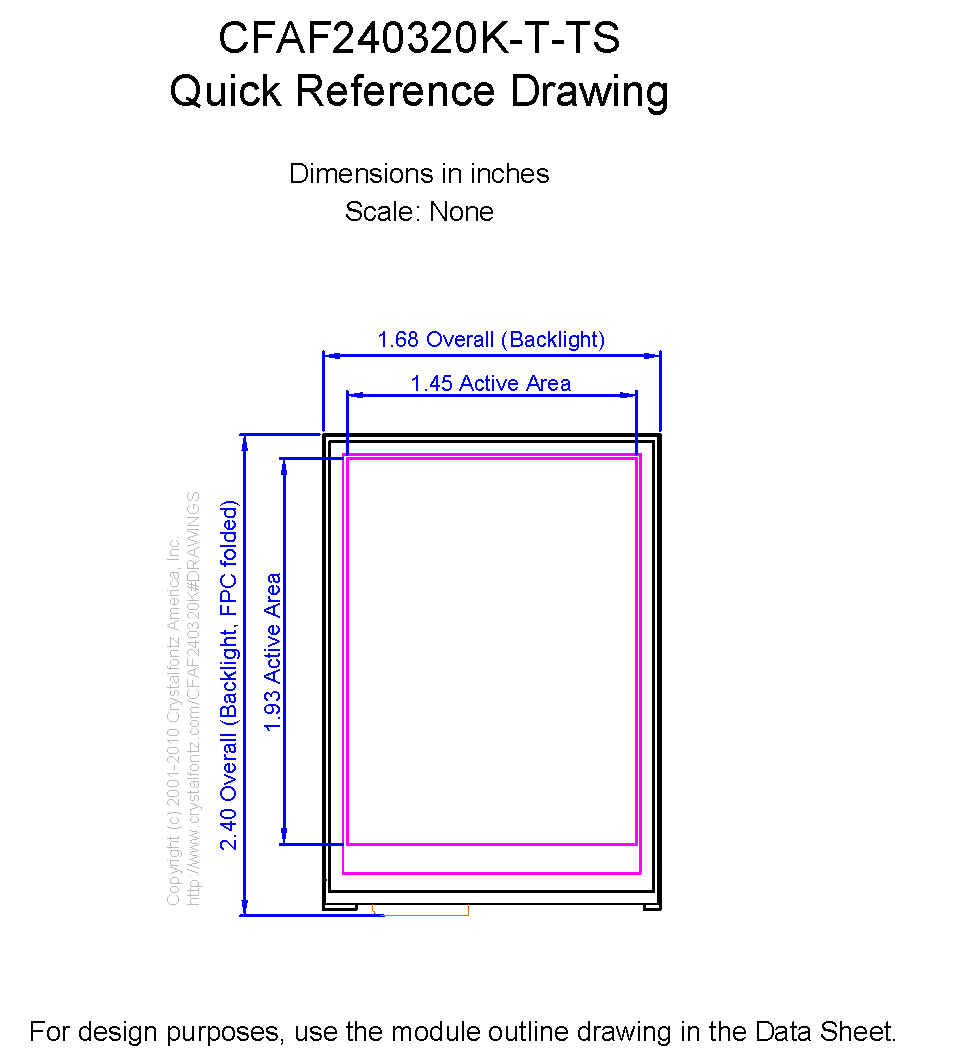

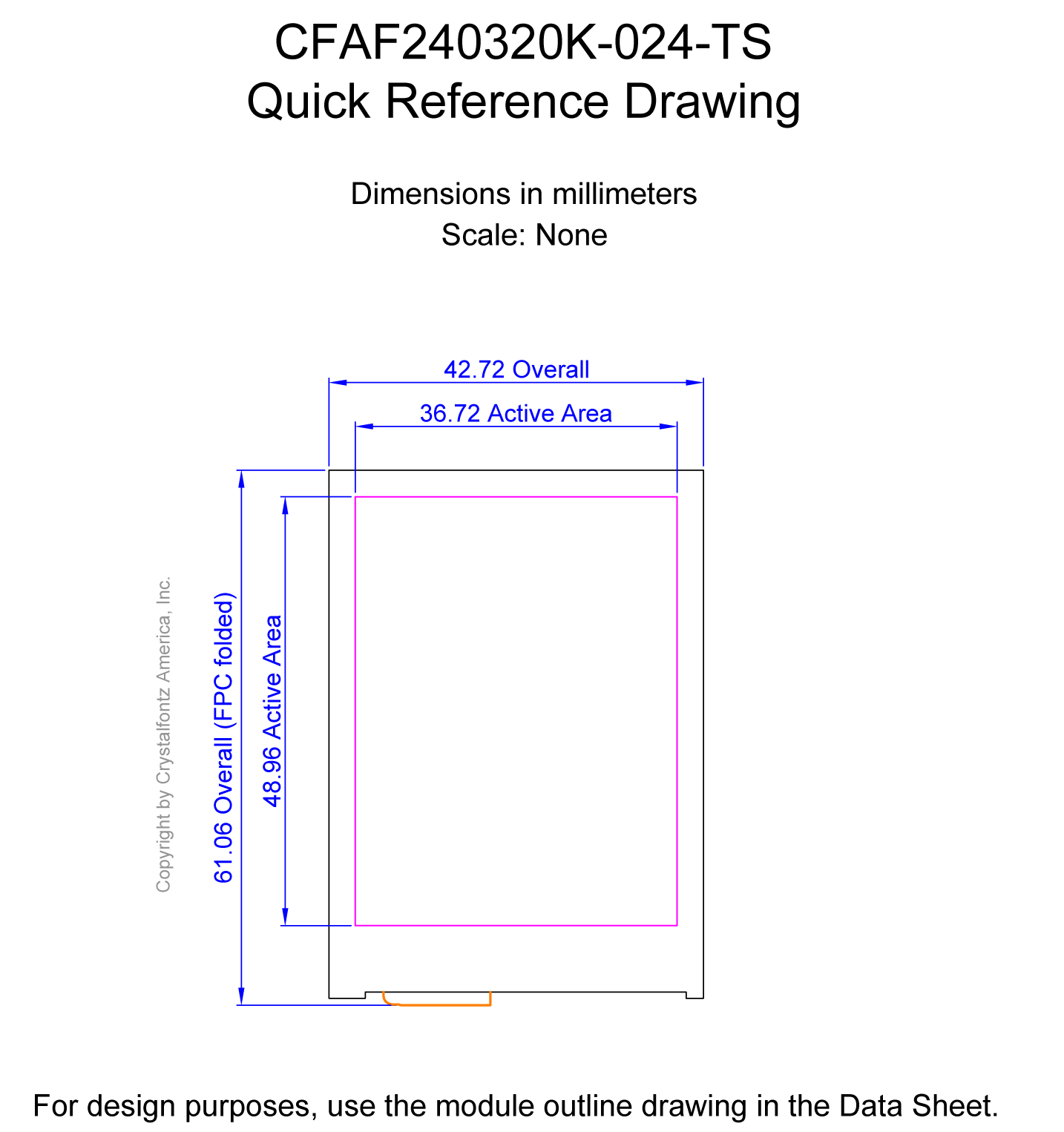

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320

    Module Overall        width
        height
        depth

        millimeters
        42.72
        60.26
        4

        inches
        1.68
        2.37
        0.16

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.4"

    Viewing Area        Width
        Height

        millimeters
        37.72
        53.16

        inches
        1.49
        2.09

    Active Area        Width
        Height

        millimeters
        36.72
        48.96

        inches
        1.45
        1.93

    Dot Pitch        Width
        Height

        millimeters
        0.15
        0.15

        inches
        0.006
        0.006

        Weight
            17g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            16-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320KTTS Datasheet.pdf
(Datasheet V 0.1, Hardware 0.0)
 download Files and Downloads
folder_zip Software Source - AtMega2561 16bit Demo Code
folder_zip Software Source - ATMega2561 8-bit Demo Code
folder_zip CAD Export - CFAF240320K-T-TS 2D CAD.ZIP
picture_as_pdf 1 to 1 Template - CFAF240320K-T-TS 1 TO 1 .PDF

Module Overall	width	height	depth
millimeters	42.72	60.26	4
inches	1.68	2.37	0.16
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	37.72	53.16
inches	1.49	2.09

Active Area	Width	Height
millimeters	36.72	48.96
inches	1.45	1.93

Dot Pitch	Width	Height
millimeters	0.15	0.15
inches	0.006	0.006

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

This module is engineered for high volume production. It uses a "TAB" (tape automated bonding) or "COF" (chip on flex) style flex tail. The TAB connector is soldered directly to corresponding pads on your PCB using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. Hot-bar soldering machines designed for prototype, rework or repair of TAB connections are available from equipment suppliers at reasonable cost. The TAB style connection requires no separate connector, so the cost is very low, and the ultra thin profile of the display is maintained.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10345: Controller change for CFAF240320K-024T-TS

Products Affected:	CFAF240320K-T-TS, CFAF240320K-024T-TS
Date Issued:	April 25, 2011
Summary:	Controller change for CFAF240320K-024T-TS
Description:	The SPFD5408B-C controller is being replaced by the ILI9325C.
Reason:	The SPFD5408B-C has been discontinued by the manufacturer.
Impact:	Low. While most customers will not require a change to their initialization to continue to use the display, updated initialization code will improve the performance of the display.
Recommendation:	Update initialization code to be more in line with the ILI9325 and this display module.
Availability:	New orders, for approximately one year.
Price Change:	N/A

Product Update #10335: Change in TFT part numbers

Products Affected:	CFAF240320K-T-TS, CFAF176220M-T, CFAF240320E-T, CFAF128160C-T, CFAF240320P-T, CFAF320240F-T, CFAF320240F-T-TS, CFAF240400D-T, CFAF128160C-018T, CFAF176220U-020T, CFAF240400D-030T, CFAF320240F-035T
Date Issued:	March 29, 2011
Summary:	Change in TFT part numbers
Description:	We are changing our TFT part numbers to have them better describe the parts being ordered. The change should be complete for all TFT modules shipping within the next six months. Part numbers will change as follows: CFAF128160C-T will change to CFAF128160C-018T CFAF176220M-T will change to CFAF176220U-020T CFAF240320E-T will change to CFAF240320H-022T CFAF240320K-T-TS will change to CFAF240320K-024T-TS CFAF240320P-T will change to CFAF240320S-032T CFAF240400D-T will change to CFAF240400D-030T CFAF320240F-T will change to CFAF320240F-035T CFAF320240F-T-TS will change to CFAF320240F-035T-TS
Reason:	There are many TFT modules with the same logical dimensions (resolution) with considerably different sizes. In order to help ease any confusion, we have decided to add the diagonal dimension to the part number.
Impact:	The part number is all that is changing, there are no other changes to the parts, so there should be no significant impact.
Availability:	The transition period should be about six months from the date of this bulletin.
