240x320 Full Color TFT Display from Crystalfontz

Product

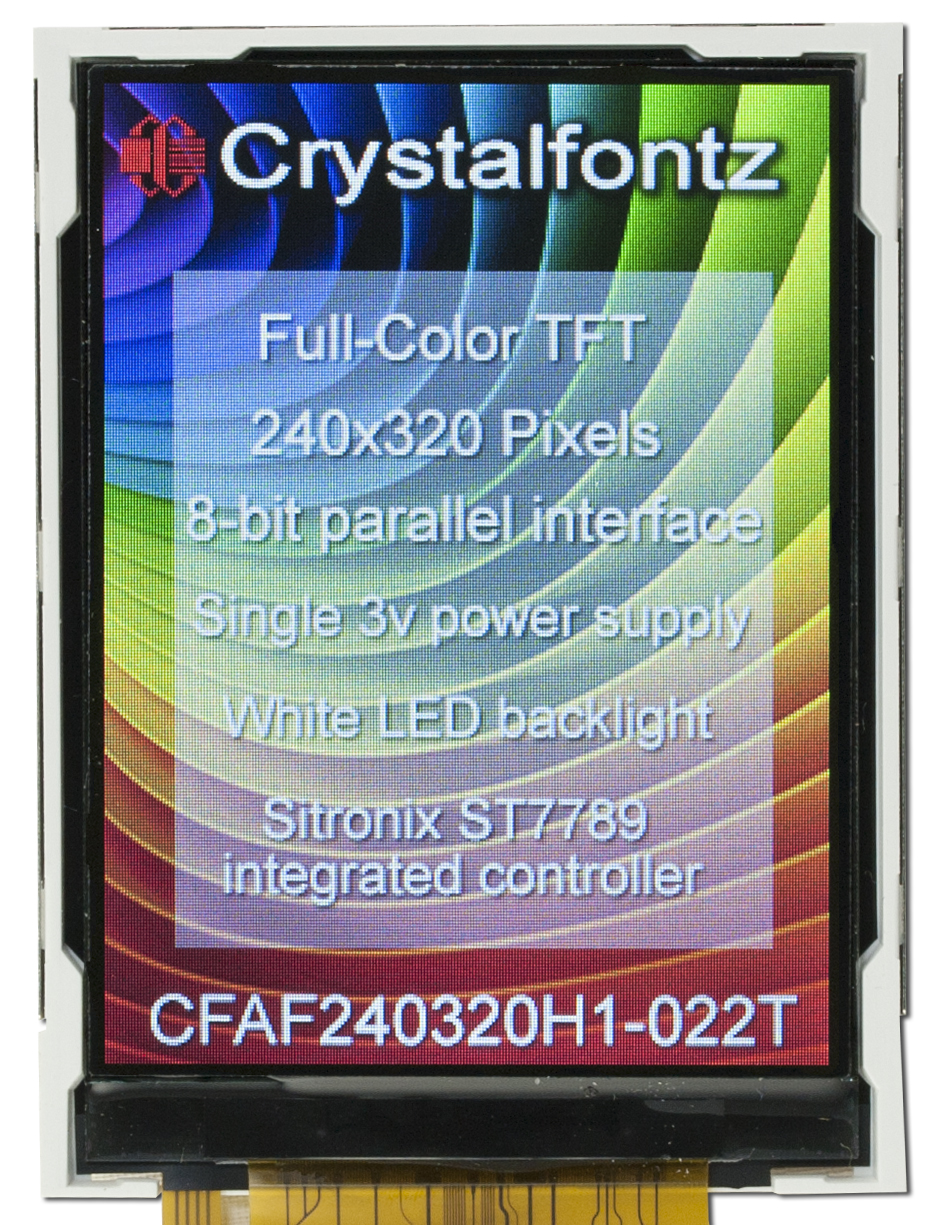

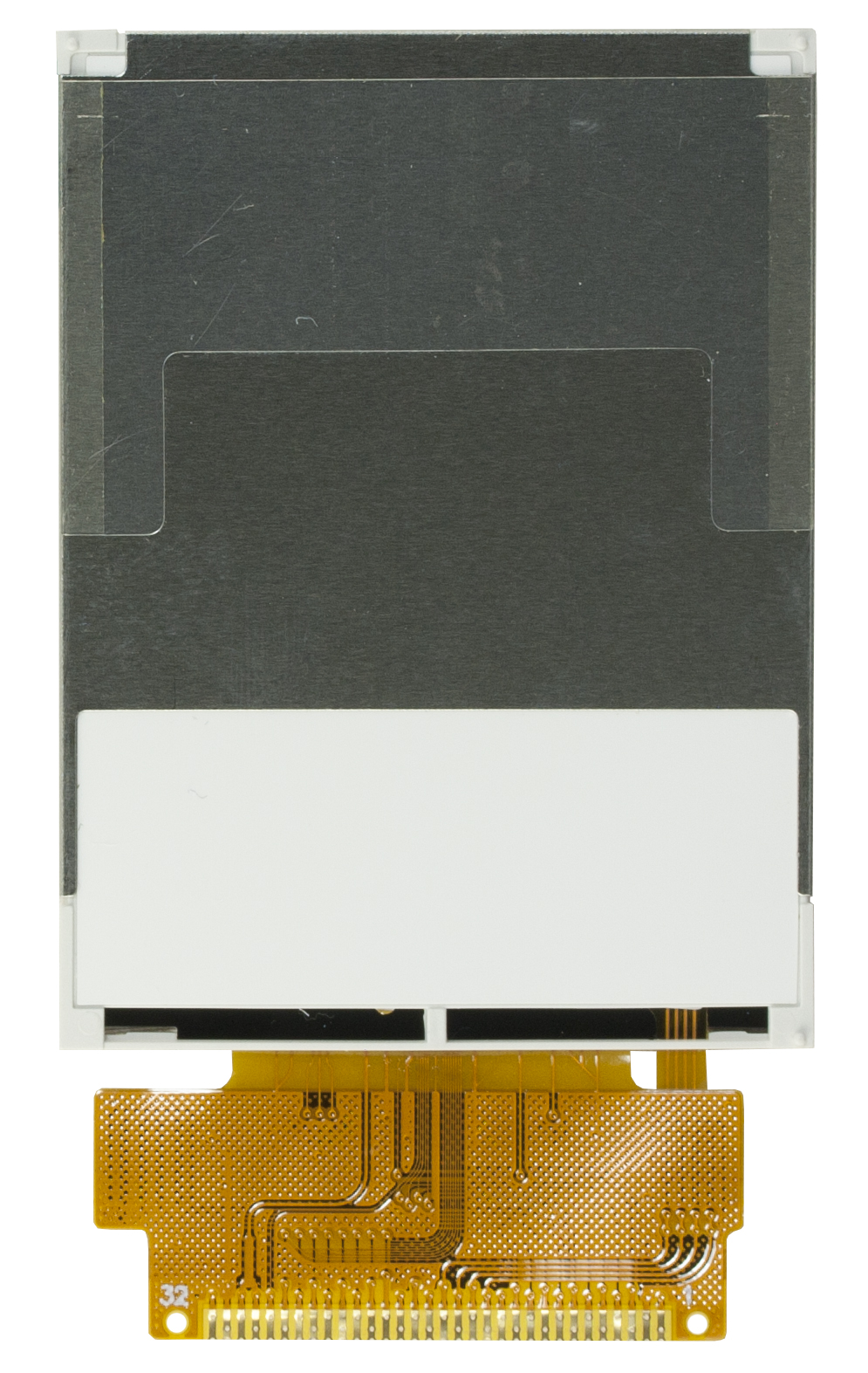

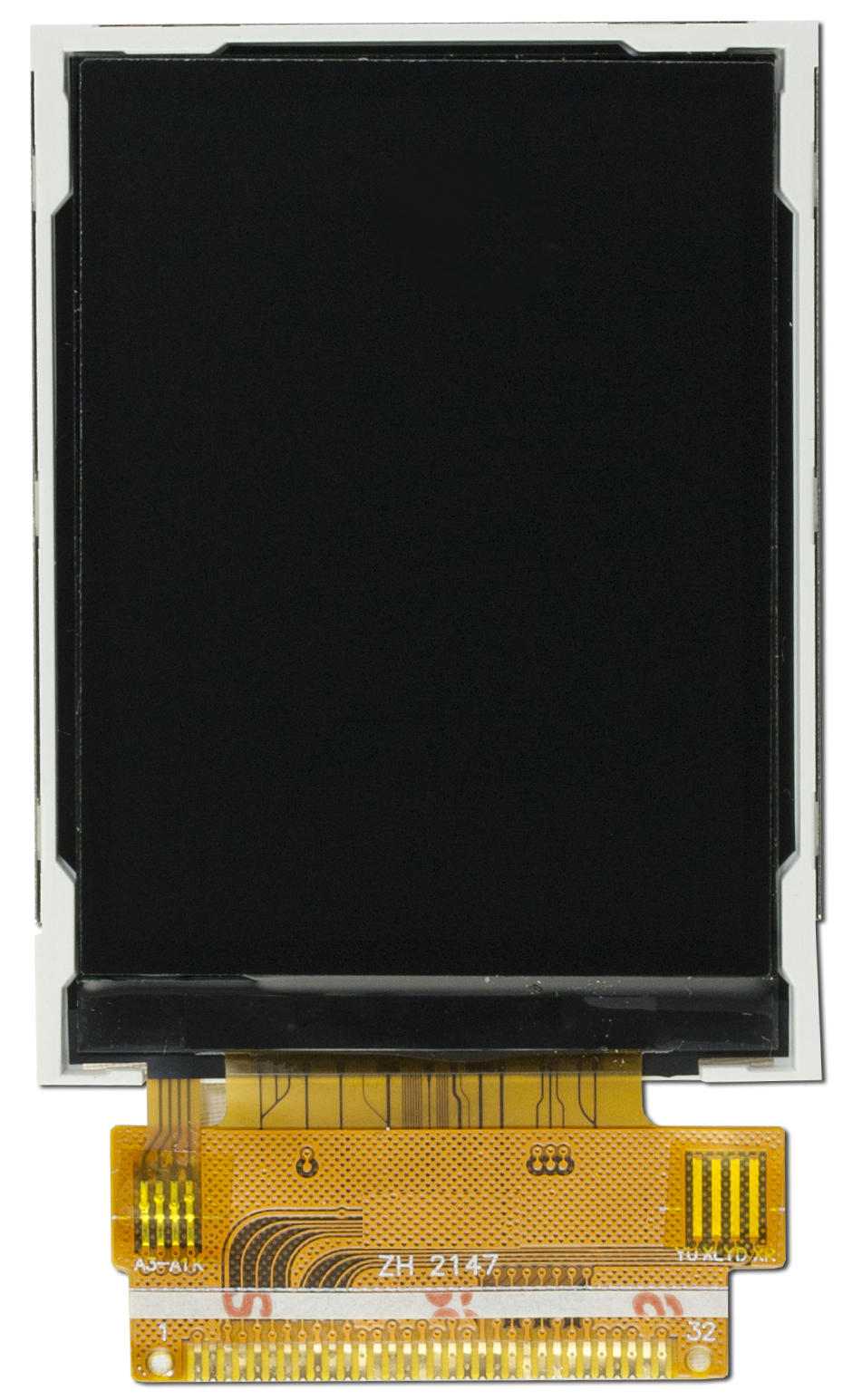

240x320 Full Color TFT DisplayPart Number: CFAF240320H1-022TThe CFAF240320H1-022T is a 2.2" 240x320 color graphic TFT LCD display with a solder down FPC.  This display has an integrated Sitronix ST7789V controller, white LED backlight, 8-bit parallel interface and requires only a single 3.3v supply.
240x320 full-color graphic TFT module.
2.2 inch diagonal dimensions.
Built-in Sitronix ST7789V controller
8-bit parallel interface
Wide Temperature Range
Reach and RoHS Compliant

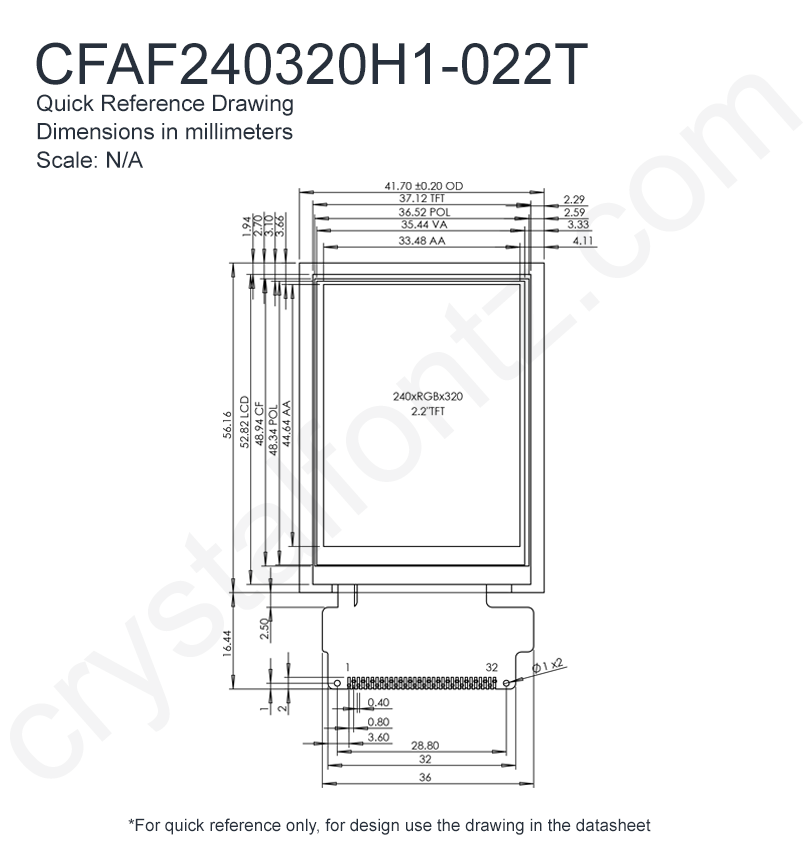

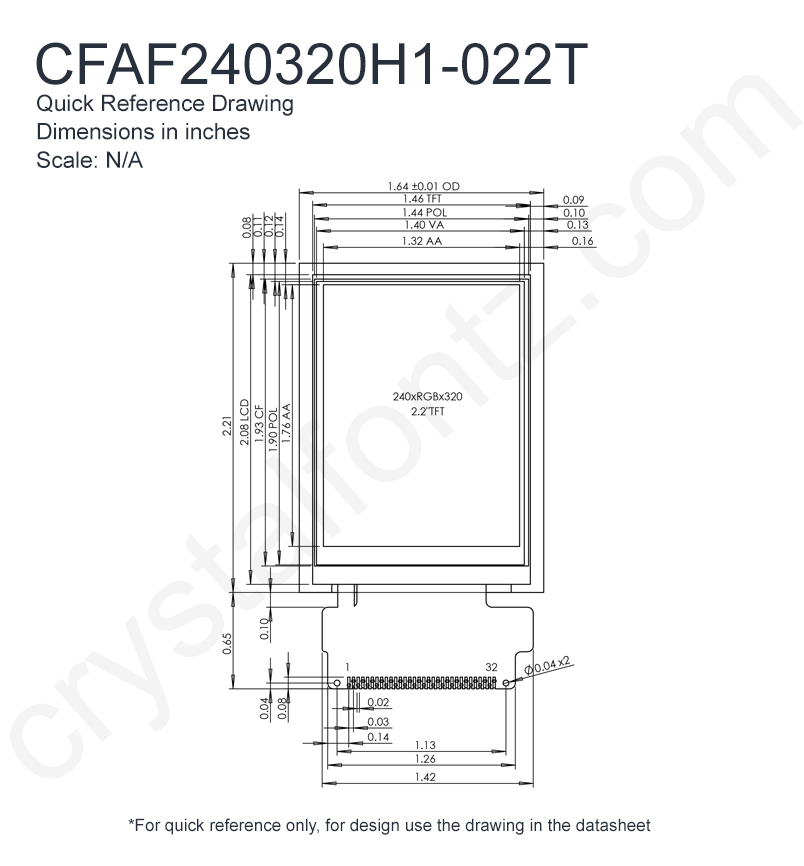

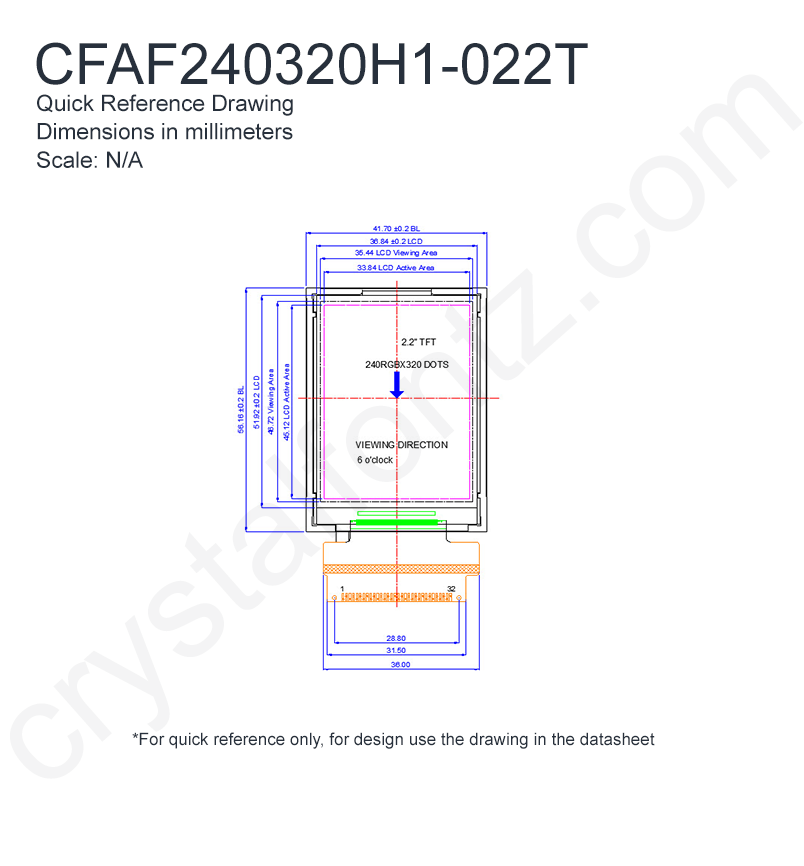

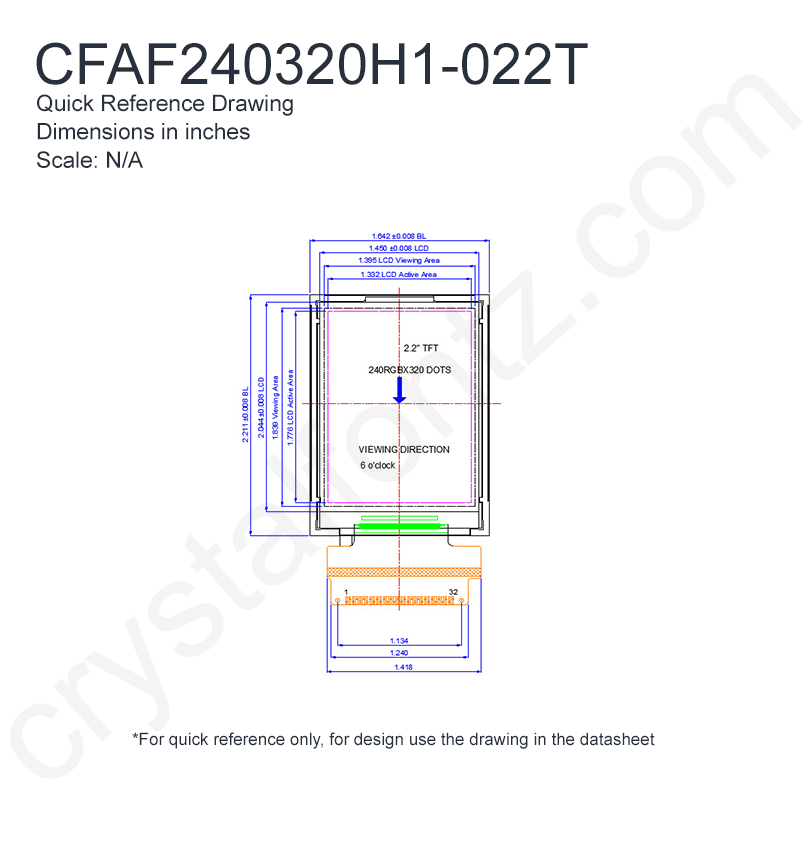

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320

    Module Overall        width
        height
        depth

        millimeters
        41.7
        56.16
        2.6

        inches
        1.64
        2.21
        0.10

        Diagonal Dimension
            2.22"

    Viewing Area        Width
        Height

        millimeters
        35.44
        46.72

        inches
        1.40
        1.84

    Active Area        Width
        Height

        millimeters
        33.84
        45.12

        inches
        1.33
        1.78

    Dot Pitch        Width
        Height

        millimeters
        0.14
        0.14

        inches
        0.006
        0.006

    Flexible Cable (FFC/FPC)        length

        millimeters
        13.9

        inches
        0.547

        Weight
            10g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.4V
Supply Voltage for Logic Maximum
            4.8V

        Supply Voltage for Logic Typical
            3.3V
Supply Voltage for Driving Panel Typical
            3.3V

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.2V

        Forward Current Typical
            60mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7789V
Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver

Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAF240320H1-022T Datasheet

download Files and Downloads
link Demo Code Download on Github
link Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $12.99

            10
            $12.62

            20
            $12.25

            50
            $11.81

            100
            $11.66

            200 *
            $11.58

            300 *
            $11.43

            500 *
            $11.36

            1000 *
            $10.62

100 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Module Overall	width	height	depth
millimeters	41.7	56.16	2.6
inches	1.64	2.21	0.10

Viewing Area	Width	Height
millimeters	35.44	46.72
inches	1.40	1.84

Active Area	Width	Height
millimeters	33.84	45.12
inches	1.33	1.78

Dot Pitch	Width	Height
millimeters	0.14	0.14
inches	0.006	0.006

Flexible Cable (FFC/FPC)	length
millimeters	13.9
inches	0.547

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$12.99
10	$12.62
20	$12.25
50	$11.81
100	$11.66
200 *	$11.58
300 *	$11.43
500 *	$11.36
1000 *	$10.62

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11112: Small Change to Active Area

Product Affected:	CFAF240320H1-022T
Date Issued:	January 17, 2022
Summary:	Small Change to Active Area
Description:	The display glass is changing due to the original glass going EOL. The effect of this change will cause the active area to change from 33.84x45.12mm to 33.48x44.64mm.
Reason:	The original glass that was used on this display has gone EOL.
Availability:	Contact support@crystalfontz.com for up-to-date information on availability.

Product Update #10937: (New Product) CFAF240320H1-022T

New Product:	CFAF240320H1-022T
Date Issued:	March 1, 2018
Summary:	(New Product) CFAF240320H1-022T
Description:	TFT LCD Modules: 240x320 full-color 2.2inch TFT display with Sitronix ST7789V controller.
