                This product is discontinued and has been replaced by CFAF240320H-022T

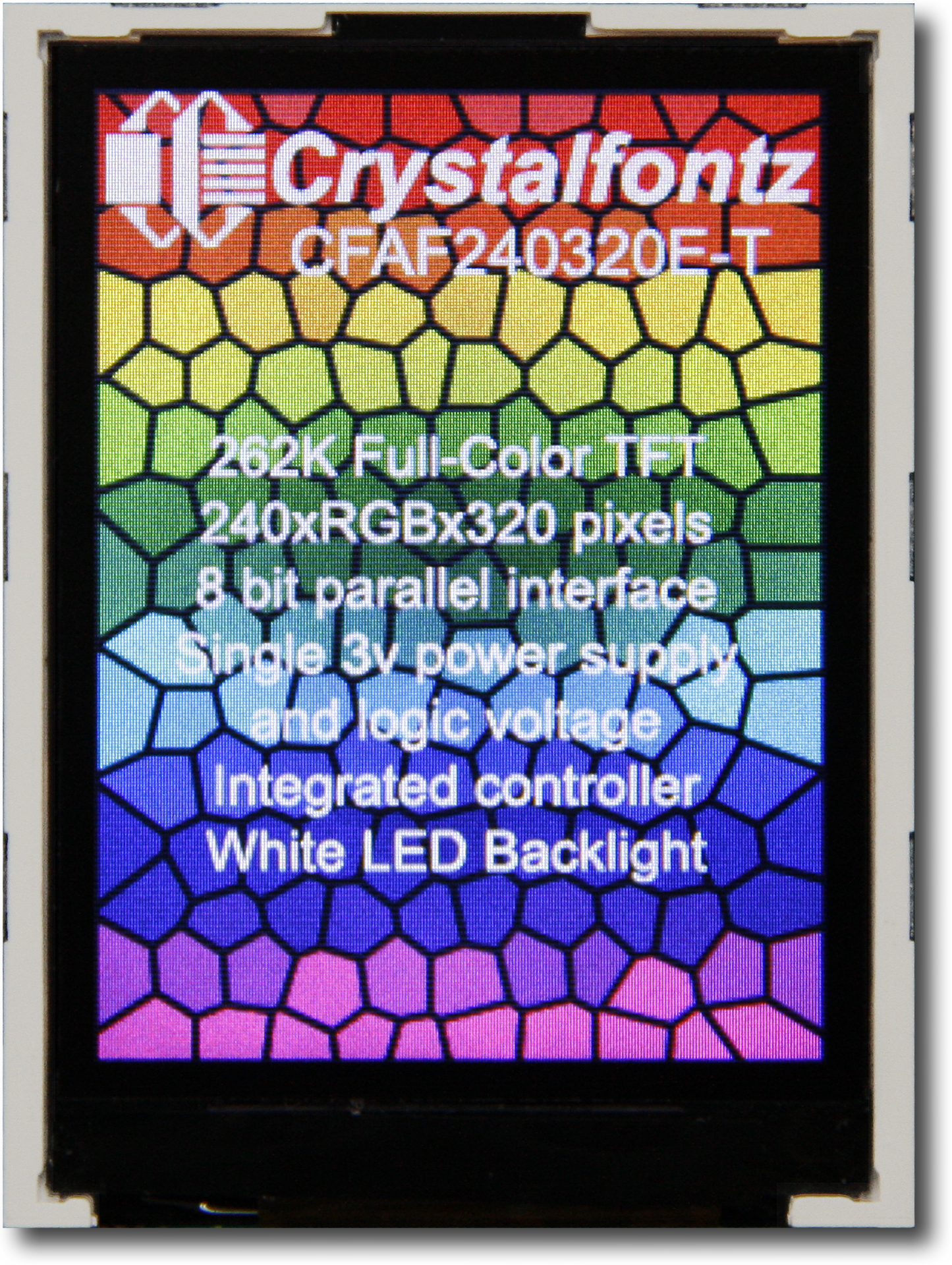

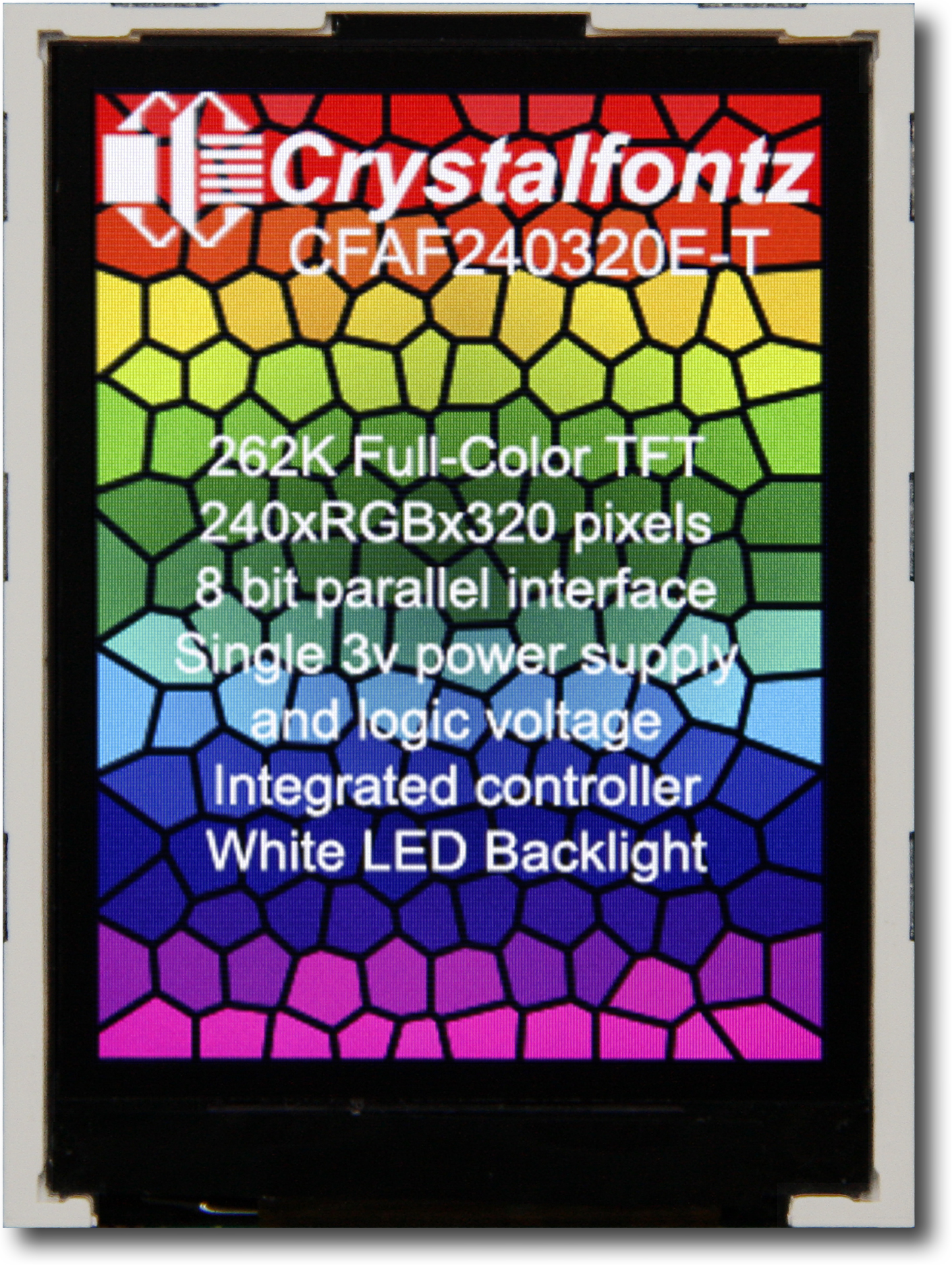

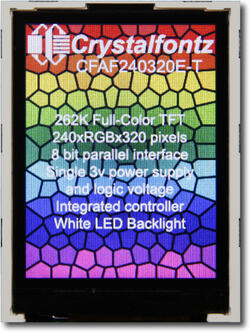

[EOL] 240x320 Color TFTPart Number: CFAF240320E-T240xRGBx320 262K full-color graphic TFT module.  This 2.2" diagonal TFT display has an integrated controller, white LED backlight, an 8-bit parallel interface, requires only a single 3v supply.
	240xRGBx320 Full color graphic TFT module
	Built-in Ilitek ILI9325 or compatible controller.
	8-bit parallel interface
	Wide Temperature Range
	RoHS Compliant

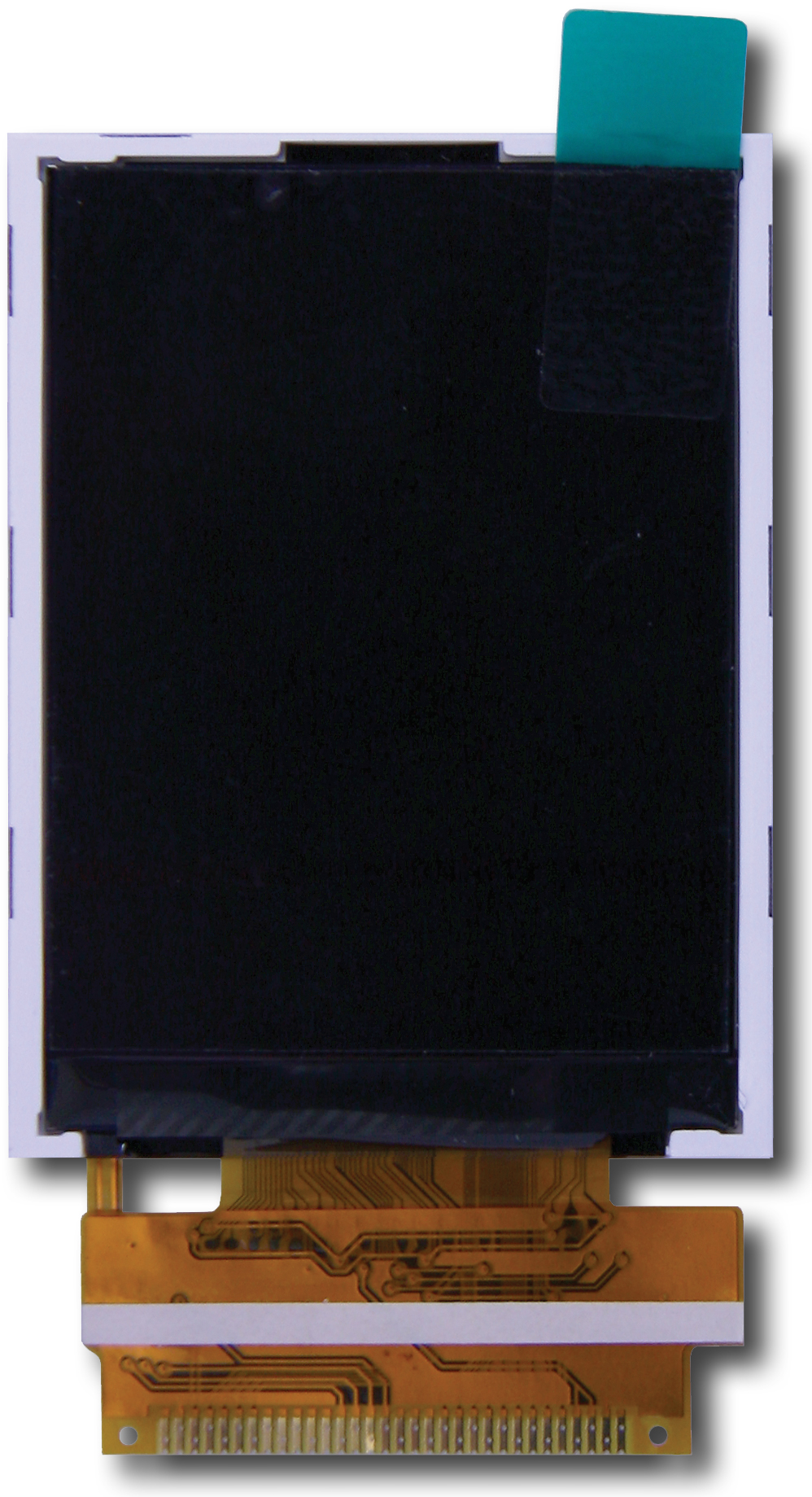

	The connector on the CFAF240320H-022T is a flex tail mated with a "COG" (chip on glass) display construction. This style of connector is designed to be soldered directly to corresponding pads on your PCB by using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. There are hot-bar soldering machines made that are designed for prototype, rework or repair work of TAB connections.

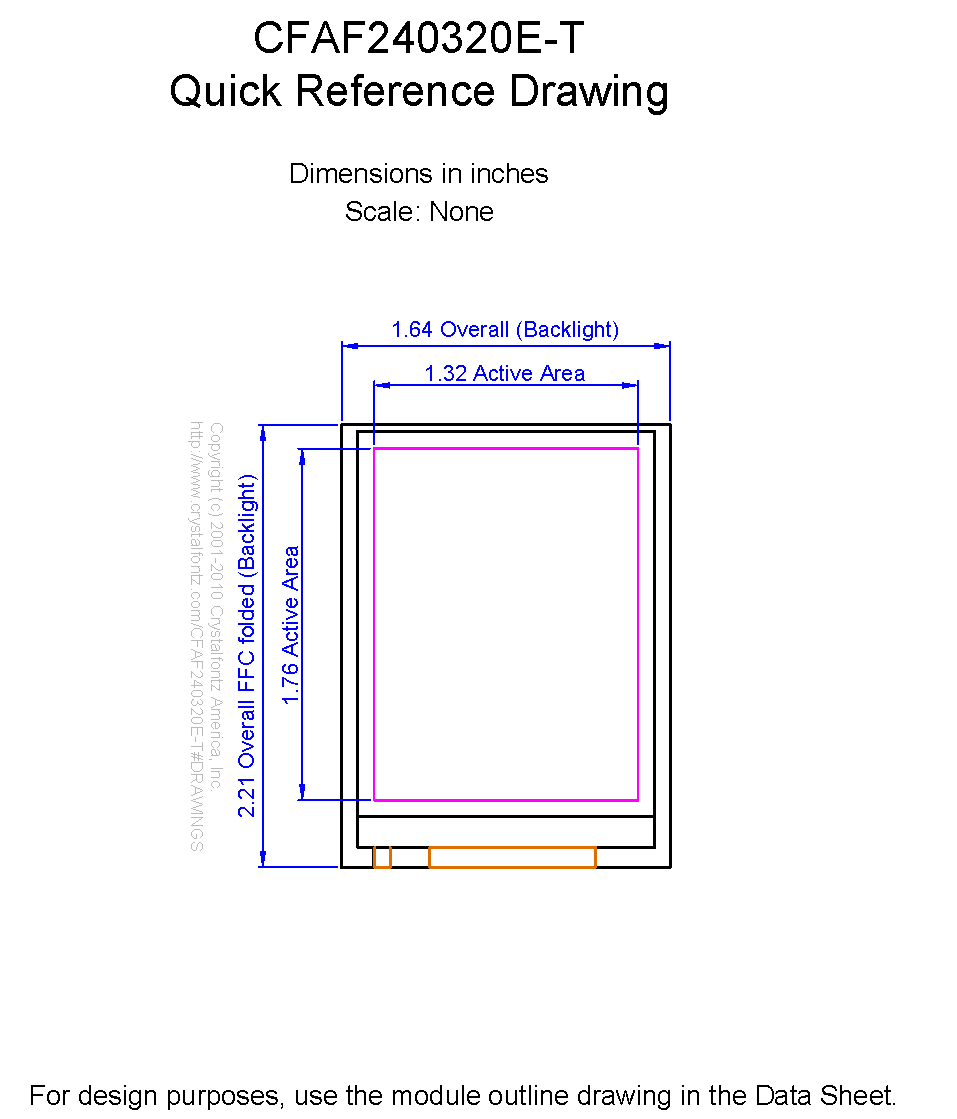

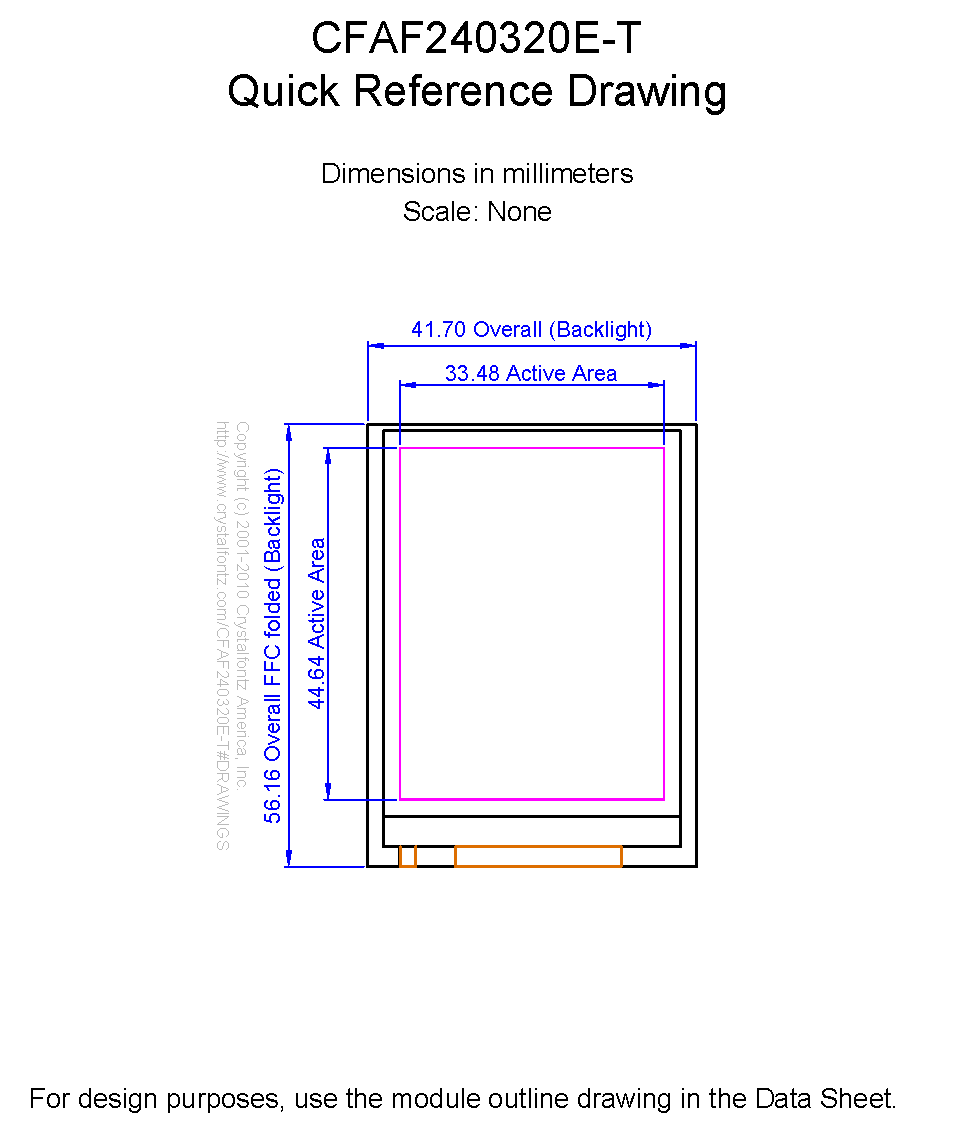

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320

    Module Overall        width
        height
        depth

        millimeters
        41.7
        56.16
        2.5

        inches
        1.64
        2.21
        0.10

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.2"

    Viewing Area        Width
        Height

        millimeters
        37.68
        48.94

        inches
        1.48
        1.93

    Active Area        Width
        Height

        millimeters
        33.48
        44.64

        inches
        1.32
        1.76

    Dot Pitch        Width
        Height

        millimeters
        0.14
        0.14

        inches
        0.006
        0.006

        Weight
            11g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            12 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Ilitek ILI9325
a-Si TFT LCD Single Chip Driver

240RGBx320 Resolution and 262K color
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320ET.pdf
(Datasheet V Preliminary)
 download Files and Downloads
folder_zip Software Source - ATMega2561 Demonstration Code
folder_zip CAD Export - CFAF240320E-T 2D CAD.ZIP
picture_as_pdf 1 to 1 Template - CFAF240320E-T 1 TO 1.pdf

Module Overall	width	height	depth
millimeters	41.7	56.16	2.5
inches	1.64	2.21	0.10
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	37.68	48.94
inches	1.48	1.93

Active Area	Width	Height
millimeters	33.48	44.64
inches	1.32	1.76

Dot Pitch	Width	Height
millimeters	0.14	0.14
inches	0.006	0.006

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10335: Change in TFT part numbers

Products Affected:	CFAF240320K-T-TS, CFAF176220M-T, CFAF240320E-T, CFAF128160C-T, CFAF240320P-T, CFAF320240F-T, CFAF320240F-T-TS, CFAF240400D-T, CFAF128160C-018T, CFAF176220U-020T, CFAF240400D-030T, CFAF320240F-035T
Date Issued:	March 29, 2011
Summary:	Change in TFT part numbers
Description:	We are changing our TFT part numbers to have them better describe the parts being ordered. The change should be complete for all TFT modules shipping within the next six months. Part numbers will change as follows: CFAF128160C-T will change to CFAF128160C-018T CFAF176220M-T will change to CFAF176220U-020T CFAF240320E-T will change to CFAF240320H-022T CFAF240320K-T-TS will change to CFAF240320K-024T-TS CFAF240320P-T will change to CFAF240320S-032T CFAF240400D-T will change to CFAF240400D-030T CFAF320240F-T will change to CFAF320240F-035T CFAF320240F-T-TS will change to CFAF320240F-035T-TS
Reason:	There are many TFT modules with the same logical dimensions (resolution) with considerably different sizes. In order to help ease any confusion, we have decided to add the diagonal dimension to the part number.
Impact:	The part number is all that is changing, there are no other changes to the parts, so there should be no significant impact.
Availability:	The transition period should be about six months from the date of this bulletin.
