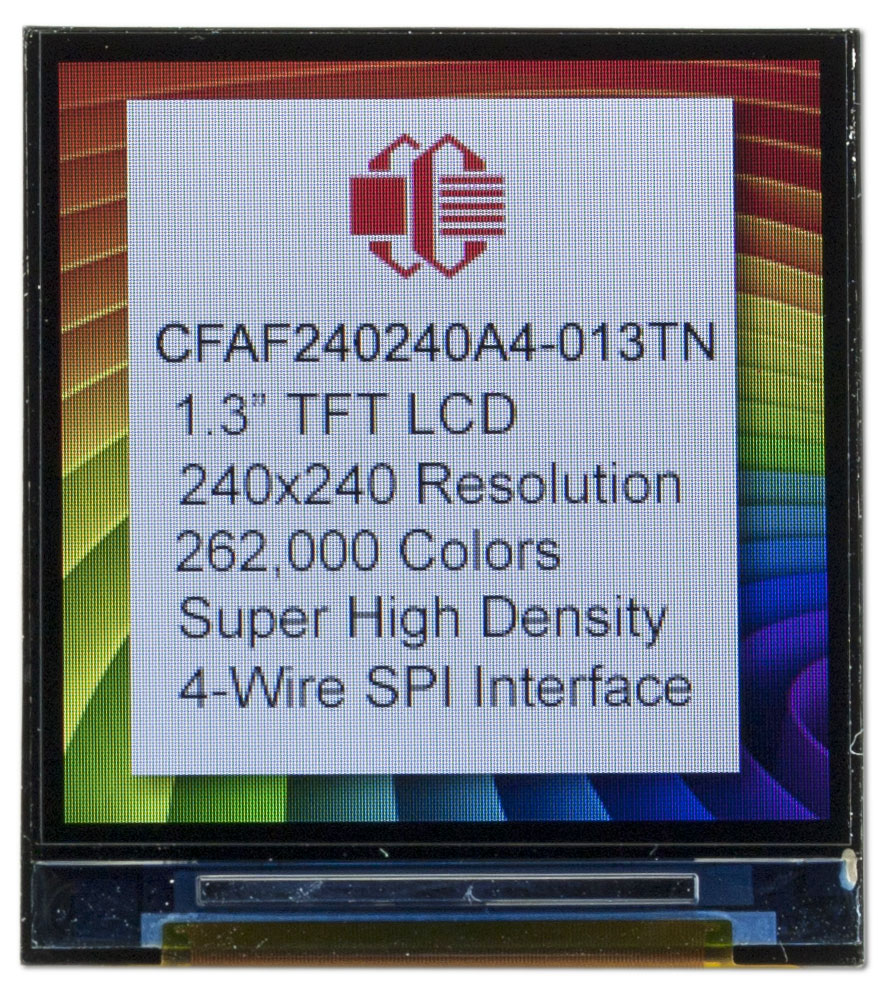

      1.3" 240x240 Full-Color LCD Display on Adapter Board
      Part Number: CFAF240240A4-013TN-E1
         This TFT kit comprises one of our smallest TFT displays and an adapter board that breaks the tail connections out to a simple 2x5 10-position header. The adapter board includes a backlight driver, so only a single 3.3v power input is required to bring up the display.

The adapter board is specifically designed for use with this display, so it fits directly behind the display with no PCB overlap. The display is a 1.3",  full color, IPS display that looks incredibly sharp.

This little kit would be great in a wearable, as a small gauge or indicator, or anywhere you can think to integrate a small, full-color display.

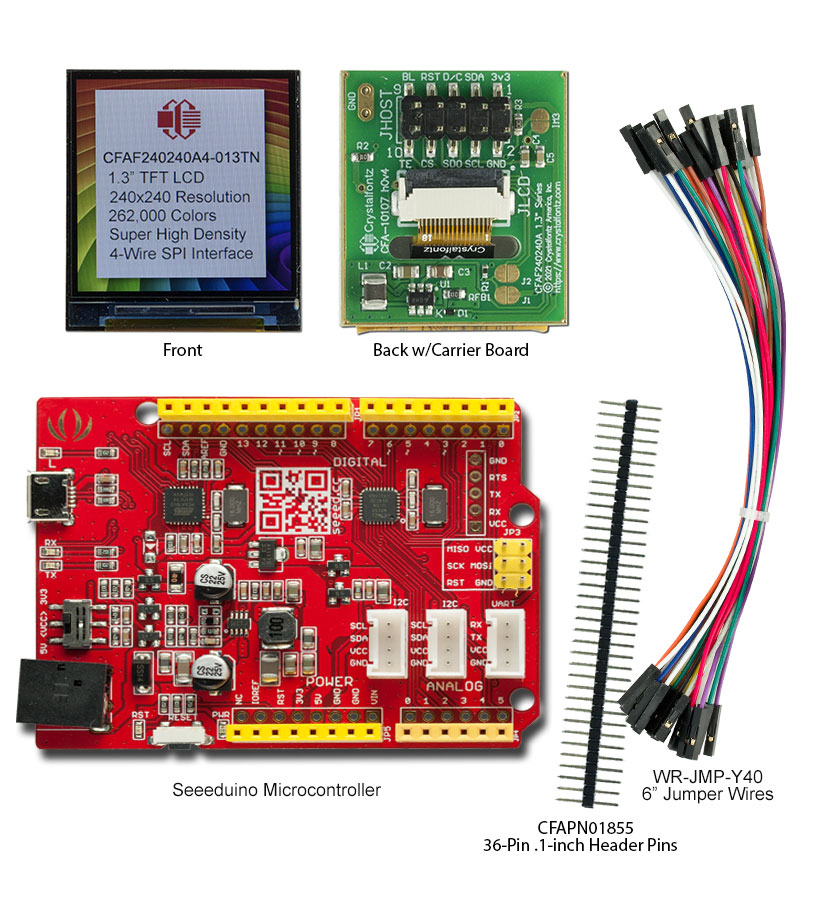

We also offer a full Seeeduino kit to easily bring up this module. square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 240

    Module Overall        width
        height
        depth

        millimeters
        26
        29.15
        1.5

        inches
        1.02
        1.15
        0.06

        Diagonal Dimension
            1.3"

    Active Area        Width
        Height

        millimeters
        23.4
        23.4

        inches
        0.92
        0.92

        Weight
            6.3g
Pin Count
            18

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Direction
            Any o'clock
View Angle
            160°

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            1.65V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            1.8V

        Supply Voltage for Driving Panel Typical
            2.8V
Supply Current Maximum
            8.9mA
Supply Current Typical
            5.9mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7789H2
The ST7789H2 is a single-chip controller/driver for 262K-color, graphic type TFT-LCD.
Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF240240A4-013TN Datasheet

 download Files and Downloads
link Demo Code Repository on Github

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $32.76

            5
            $27.00

            10
            $26.23

            20
            $25.46

            50
            $24.53

            100
            $24.22

            200 *
            $24.07

            300 *
            $23.76

            500 *
            $23.60

            1000 *
            $23.45

157 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
