            In order to keep this display in production over the long term, we have revised it to the CFAF240240A3-013TN-E1-2. Please contact sales@crystalfontz.com with any questions.
240x240 1.3" TFT Development KitPart Number: CFAF240240A1-013T-E1-2

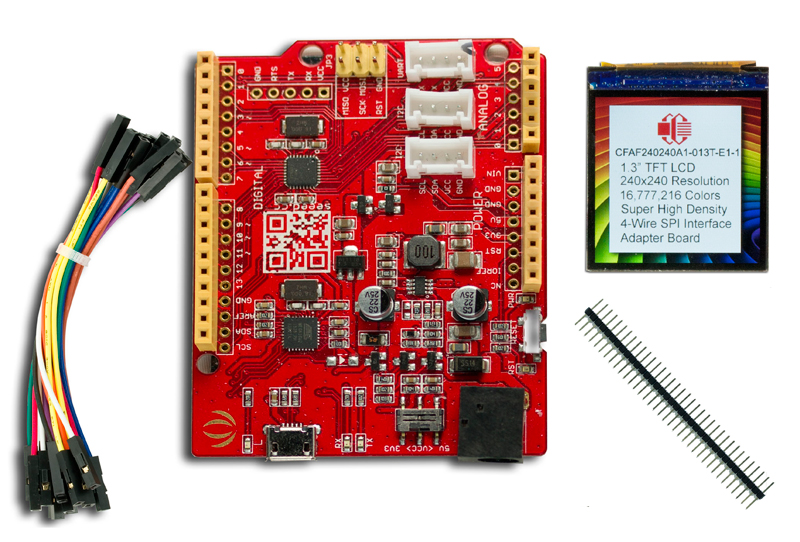

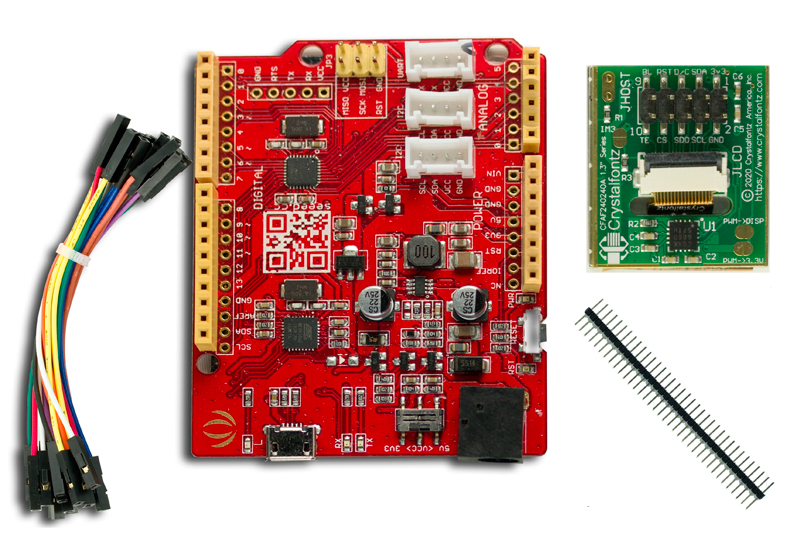

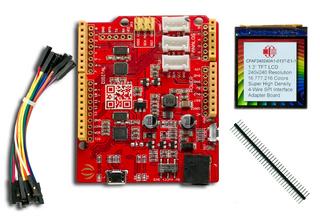

        This is a TFT Seeedunio kit for our tiny TFT with adapter board. This kit includes the small TFT mounted to an adapter board, already connected to a Seeeduino loaded with demonstration code. That means all you need to do when the kit arrives is plug in the USB cord to power to see a functioning display.

The included TFT is a crisp 1.3", 16.7M full color, 240x240 IPS display. The adapter board is designed with the display in mind, so there is no PCB overlap. Plus the board includes a backlight driver so the entire display, including the backlight, can be driven with a single 3.3v power input. square_foot Physical Characteristics

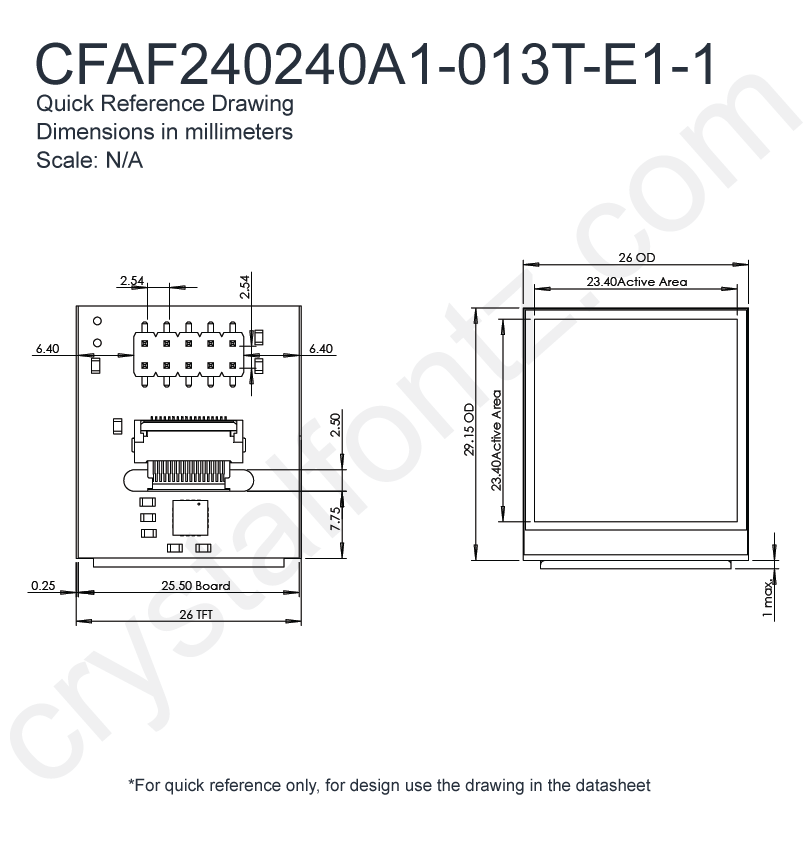

Physical Characteristics

        Column Dots x Row Dots
            240 x 240

    Module Overall        width
        height

        millimeters
        26
        29.15

        inches
        1.02
        1.15

*width / height does not include Foldable Tab

    Active Area        Width
        Height

        millimeters
        23.4
        23.4

        inches
        0.92
        0.92

    Dot Pitch        Width
        Height

        millimeters
        0.0975
        0.0975

        inches
        0.0038
        0.0038

        Optional Connectors
            CS050Z18GA0

    Flexible Cable (FFC/FPC)        length

        millimeters
        15.4

        inches
        0.606

        Weight
            30g
Pin Count
            10

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive

        Backlight Color
            White
Backlight Type
            LED
Mode
            Passive
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Typical
            3.3V

        Supply Voltage for Driving Panel Typical
            3.3V

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            2.5V
Forward Voltage Maximum
            3.3V

        Forward Voltage Typical
            3.3V
Forward Current Typical
            20mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7789H2
The ST7789H2 is a single-chip controller/driver for 262K-color, graphic type TFT-LCD.
Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF240240A1-013T-E11 Datasheet

 download Files and Downloads
folder_zip Software Source - Arduino Sample Code
folder_zip Software Source - PSoC 6 DMA SPI Pioneer Kit Demonstration Code
folder_zip Hardware Design - Hardware Build Package

Module Overall	width	height
millimeters	26	29.15
inches	1.02	1.15
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	23.4	23.4
inches	0.92	0.92

Dot Pitch	Width	Height
millimeters	0.0975	0.0975
inches	0.0038	0.0038

Flexible Cable (FFC/FPC)	length
millimeters	15.4
inches	0.606

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

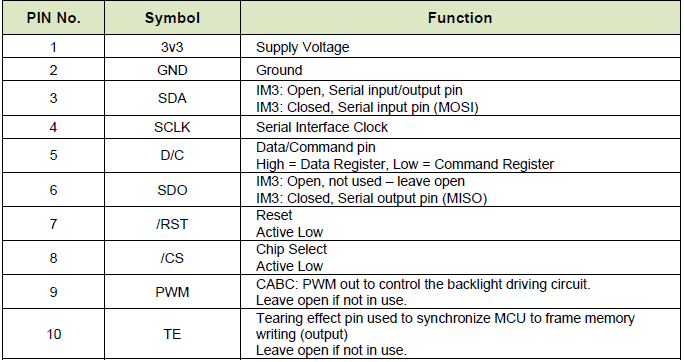

Pin Table
Note
Notices

Having a problem with the backlight? It has been brought to our attention that there is occasionally an issue with the backlight driver when using solid DC voltages to enable the backlight. It is recommended to use PWM to drive the backlight enable pin for the time being while we work on a solution.

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Product Update #11134: CFAF240240A3-013TN-E1-2 is now available.

Product Affected:	CFAF240240A1-013T-E1-2
Date Issued:	June 14, 2022
Summary:	CFAF240240A3-013TN-E1-2 is now available.
Description:	CFAF240240A3-013TN-E1-2 has been released on the website (https://www.crystalfontz.com/product/cfaf240240a3013tne12-240x240-lcd-dev-kit) and is now available for sale. Orders can be placed directly from the website or by submitting a purchase order to sales@crystalfontz.com. Contact support for any technical questions.

Part Change Notice #11110: End-Of-Life Notification

Products Affected:	CFA211-TMI, CFAF240240A1-013T, CFAF240240A1-013T-E1-1, CFAF240240A1-013T-E1-2
Date Issued:	November 12, 2021
Summary:	End-Of-Life Notification
Description:	The LCD used in this display is no longer available and is being replaced by a new LCD. There are some minor dimensions changes between the two LCDs but the overall dimensions of the display and the active area dimensions are remaining the same.
Reason:	The LCD is no longer available.

Part Change Notice #11098: Changing Backlight Driver

Products Affected:	CFAF240240A1-013T-E1-1, CFAF240240A1-013T-E1-2
Date Issued:	August 5, 2021
Summary:	Changing Backlight Driver
Description:	We are changing the backlight driver used on the 10107.
Reason:	The backlight driver on the current version does not regulate the current very well due to the low forward voltage of the backlight LEDs.
Impact:	The functionality of the display and board will remain the same.
