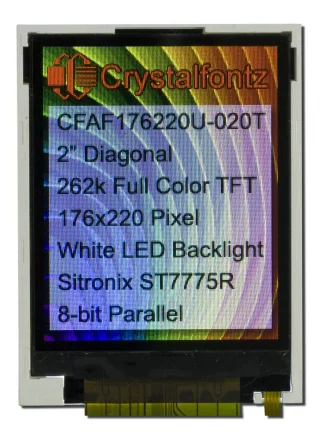

            176x220 2" Full Color TFT LCD
            Part Number: CFAF176220U-020T

                        This 2" TFT screen can power up to 262K colors using 8-bit 8080 parallel, or down to 4k color. This module has an integrated Sitronix ST7775R controller.



The backlight on this display only requires 3.3v, making this a great choice for a screen in applications where high voltage requirements pose a problem.



Note that this display uses a solder down tail- designed to be soldered directly to corresponding pads on a PCB using a hot-bar soldering machine. This means the connection is both ultrathin and very low-cost. However, it also means this display may not be the optimal choice for hobbyists. Instead, we'd recommend a module with a ZIF tail.



Features
176x220 full-color TFT module
Built-in Sitronix ST7775R controller
Single 3.3v supply for both power supply and logic
8-bit parallel interface
6 o’clock viewing direction
Operating temperature range is from -20°C to +70°C



Please contact technical support if you need assistance. Our staff is experienced and knowledgeable. square_foot Physical Characteristics

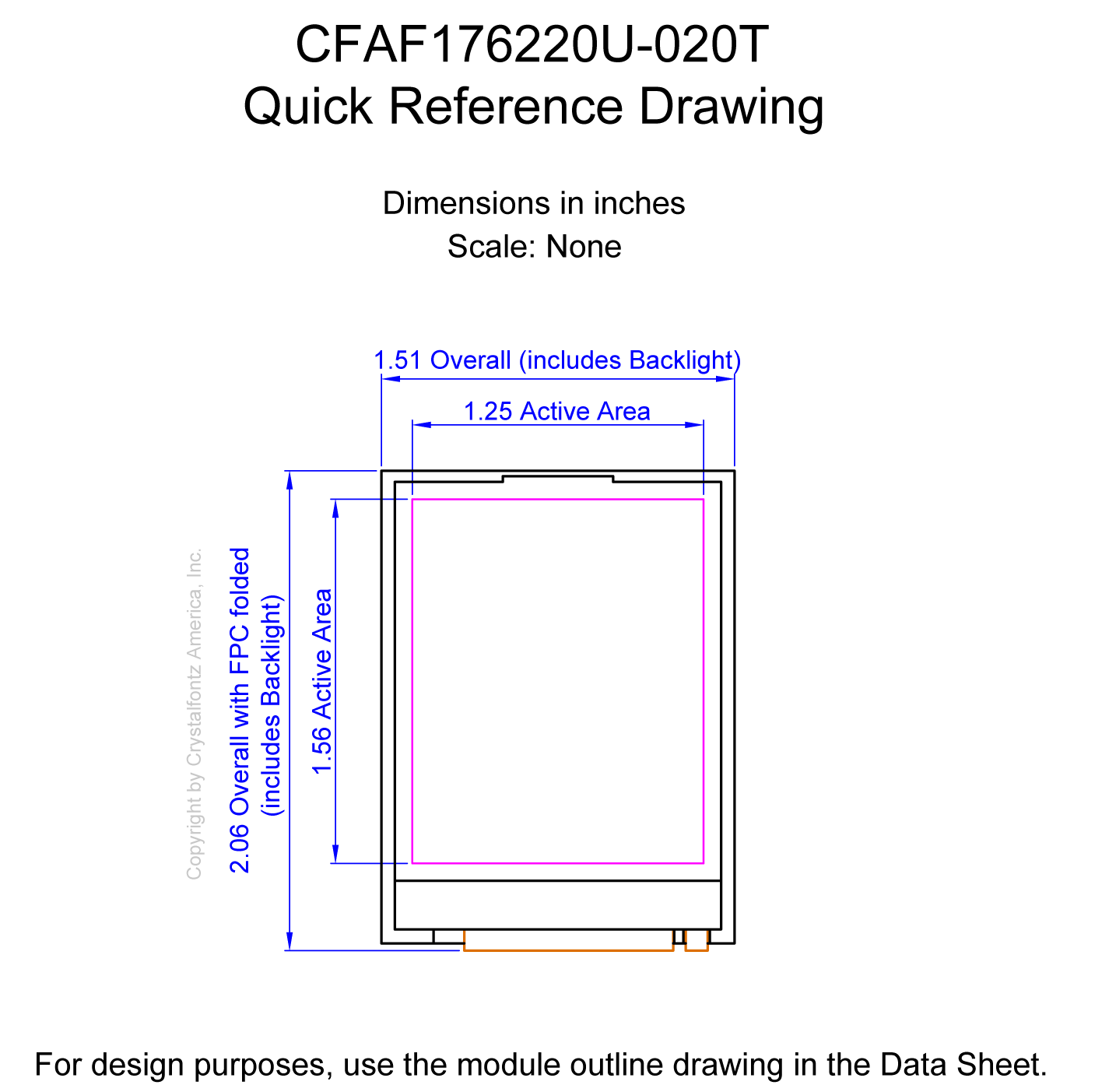

Physical Characteristics

        Column Dots x Row Dots
            176 x 220


    Module Overall        width
        height
        depth


        millimeters
        38.4
        52.2
        3.5


        inches
        1.51
        2.06
        0.14

*width / height does not include Foldable Tab


        Diagonal Dimension
            2."


    Viewing Area        Width
        Height


        millimeters
        35.48
        43.4


        inches
        1.40
        1.71



    Active Area        Width
        Height


        millimeters
        31.68
        39.6


        inches
        1.25
        1.56



    Dot Pitch        Width
        Height


        millimeters
        0.18
        0.18


        inches
        0.007
        0.007



        Weight
            10g
Pin Count
            37

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock
View Angle
            40°


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.5V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V


        Supply Voltage for Driving Panel Typical
            1.8V
Supply Current Maximum
            20mA
Supply Current Typical
            10mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3V
Forward Voltage Maximum
            3.4V
Forward Voltage Typical
            3.2V


        Forward Current Maximum
            60mA
Forward Current Typical
            45mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7775R
Sitronix ST7775R 176xRGBx220 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAF176220U020T Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAF176220U-020T Data Sheet v1.0.pdf
(Hardware A)
download Files and Downloads
folder_zip Software Source - ATMega2561 8-bit Demo Code
folder_zip Hardware Design - 3D Model
folder_zip CAD Export - CFAF176220U-020T 2D CAD
picture_as_pdf 1 to 1 Template - CFAF176220U-020T 1 to 1
link Arduino Demo Code on Github
link Arduino Demo Code Repository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH


















Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $20.44

            10
            $18.57

            20
            $18.31

            50
            $17.88

            100
            $17.61

            200
            $17.20

            500 *
            $11.55

            1000 *
            $10.29

236 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Module Overall	width	height	depth
millimeters	38.4	52.2	3.5
inches	1.51	2.06	0.14
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	35.48	43.4
inches	1.40	1.71

Active Area	Width	Height
millimeters	31.68	39.6
inches	1.25	1.56

Dot Pitch	Width	Height
millimeters	0.18	0.18
inches	0.007	0.007

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$20.44
10	$18.57
20	$18.31
50	$17.88
100	$17.61
200	$17.20
500 *	$11.55
1000 *	$10.29

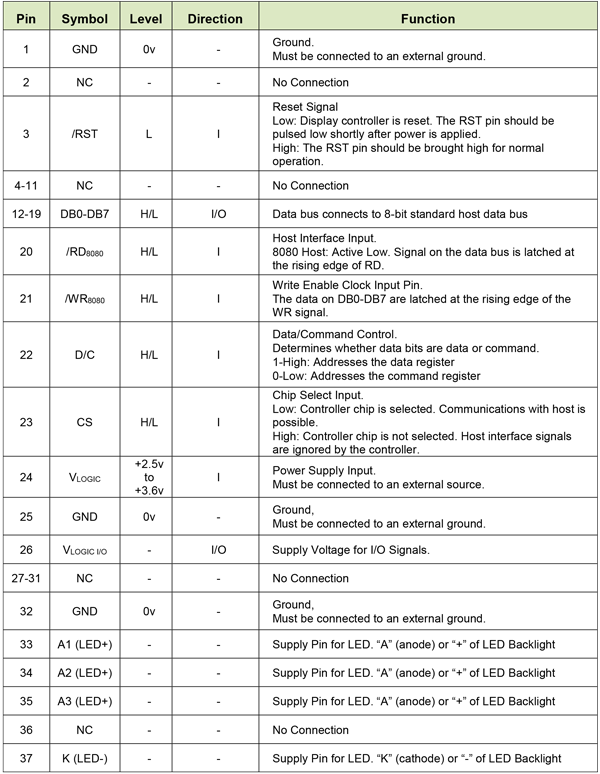

Pin Table
Note
Notices

Product Note:

The connector on the CFAF176220U-020T is a flex tail mated with a "COG" (chip on glass) display construction. This style of connector is designed to be soldered directly to corresponding pads on your PCB by using a hot-bar soldering machine. High volume contract manufacturers will be familiar with this type of construction and its assembly methods. There are hot-bar soldering machines made that are designed for prototype, rework or repair work of TAB connections.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10457: Controller change for CFAF176220U series of LCD modules.

Product Affected:	CFAF176220U-020T
Date Issued:	March 21, 2013
Summary:	Controller change for CFAF176220U series of LCD modules.
Description:	PUN for CFAF176220U series of TFT LCD modules due to controller change from Orise Technology OTM2201A to Sitronix ST7775R.
Reason:	The Orise Technology OTM2201A is not being used any longer. The display now uses a Sitronix ST7775R Controller.
Impact:	Because of the LCD controller change, a change to the initialization code is required. This change is pin-compatible with the previous version of this display, no change to the circuit will be necessary.
Recommendation:	Use code found on the module's web page on the Docs/Files tab as an example for the new controller.
Availability:	2013-Q2
Price Change:	N/A

Product Update #10335: Change in TFT part numbers

Products Affected:	CFAF240320K-T-TS, CFAF176220M-T, CFAF240320E-T, CFAF128160C-T, CFAF240320P-T, CFAF320240F-T, CFAF320240F-T-TS, CFAF240400D-T, CFAF128160C-018T, CFAF176220U-020T, CFAF240400D-030T, CFAF320240F-035T
Date Issued:	March 29, 2011
Summary:	Change in TFT part numbers
Description:	We are changing our TFT part numbers to have them better describe the parts being ordered. The change should be complete for all TFT modules shipping within the next six months. Part numbers will change as follows: CFAF128160C-T will change to CFAF128160C-018T CFAF176220M-T will change to CFAF176220U-020T CFAF240320E-T will change to CFAF240320H-022T CFAF240320K-T-TS will change to CFAF240320K-024T-TS CFAF240320P-T will change to CFAF240320S-032T CFAF240400D-T will change to CFAF240400D-030T CFAF320240F-T will change to CFAF320240F-035T CFAF320240F-T-TS will change to CFAF320240F-035T-TS
Reason:	There are many TFT modules with the same logical dimensions (resolution) with considerably different sizes. In order to help ease any confusion, we have decided to add the diagonal dimension to the part number.
Impact:	The part number is all that is changing, there are no other changes to the parts, so there should be no significant impact.
Availability:	The transition period should be about six months from the date of this bulletin.
