4.3" 480x800 Touch Screen Linux SOM from Crystalfontz

Product

Home » Products » TFT LCD Displays » Resolution » 480x800

                This product has been discontinued

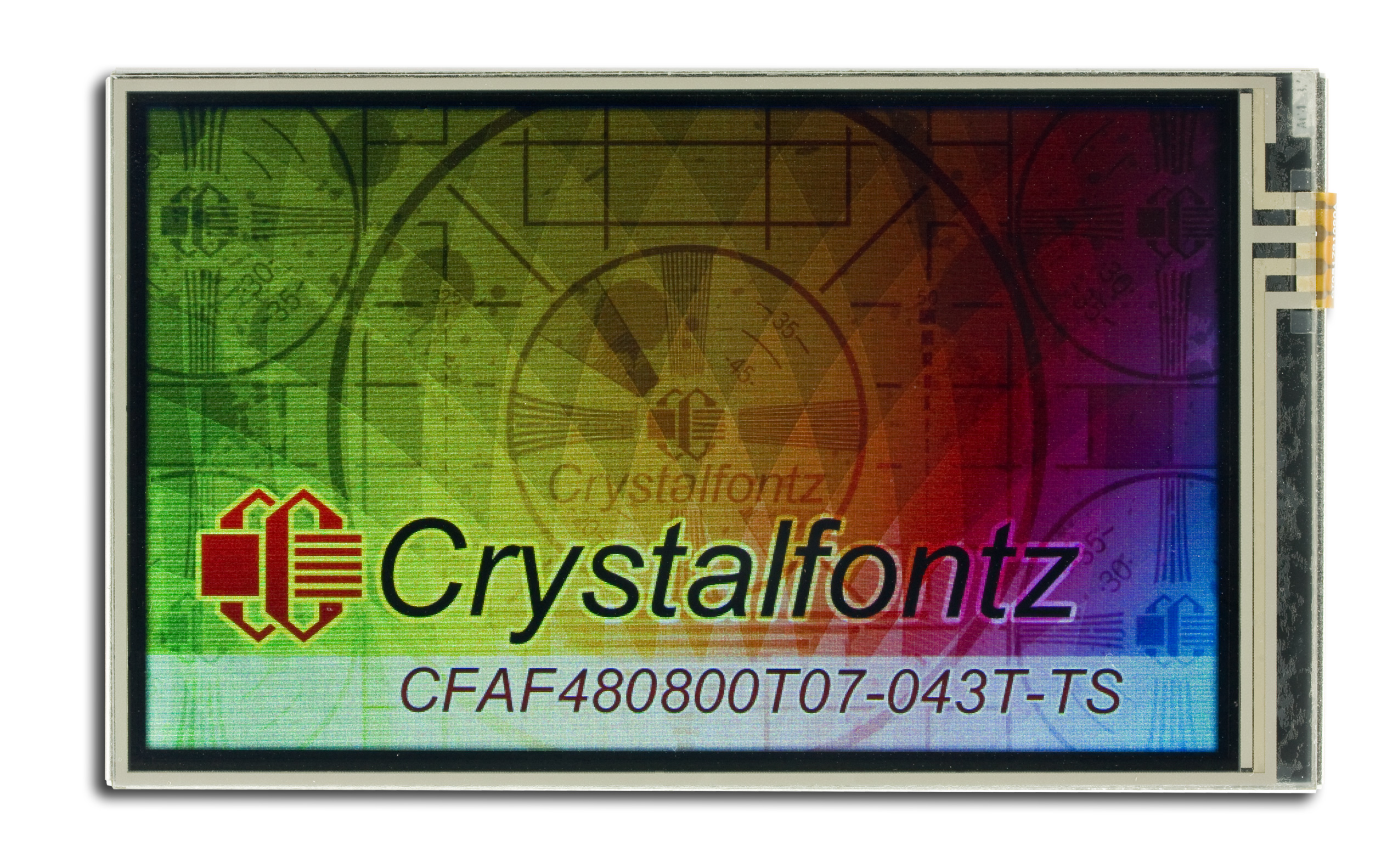

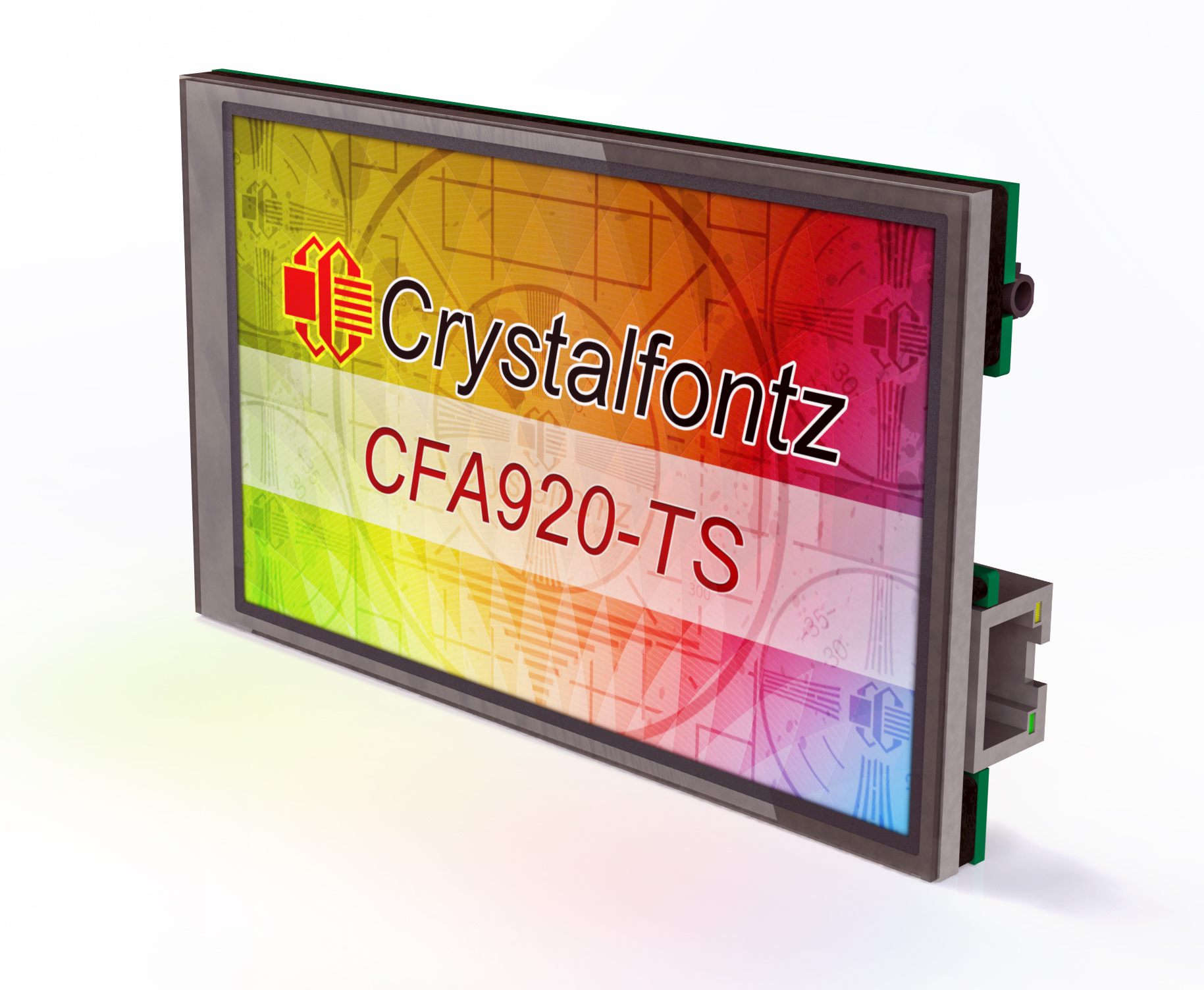

4.3" 480x800 Touch Screen Linux SOMPart Number: CFA920-TSInternet Ready Linux SOM, Freescale i.MX283 or i.MX287 Processor, 4.3 inch 480x800 full color TFT touchscreen, Ethernet and USB ports for ease of connectivity, Yocto desktop loaded and ready to go.

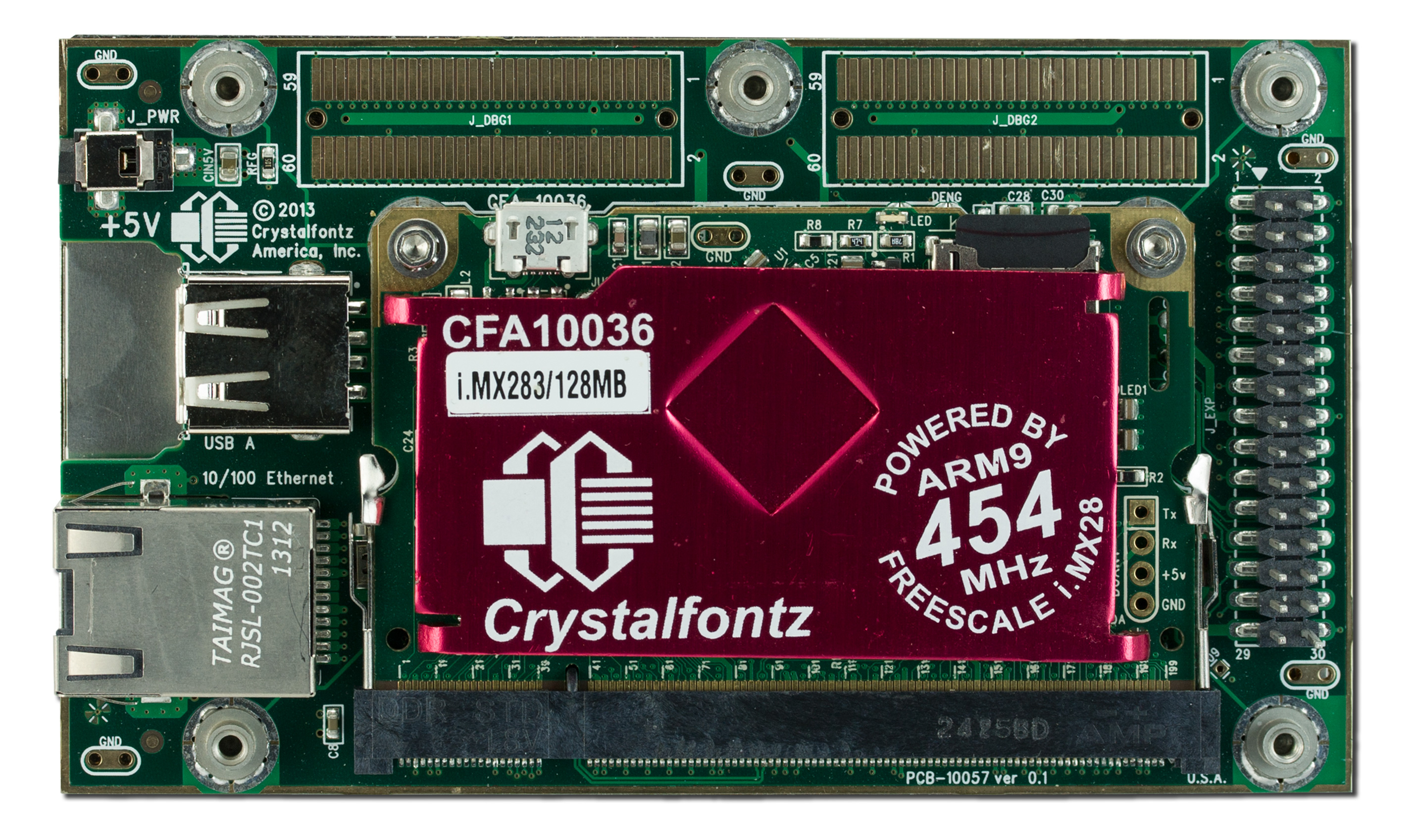

A complete package that includes our CFA10036 ARM9 based Linux System On Module with:
Freescale i.MX283 or i.MX287 processor
optional "debug" 128x32 OLED
4.3 inch 800*480 TFT touchscreen display
10/100 Ethernet port
USB port
128MB or 256MB DDR2 RAM (processor dependent)
μSD reader supports up to 64GB
24 GPIO on easy-access 0.1” center header
Up to 108 GPIO on 1mm compression connector
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            480 x 800

    Module Overall        width
        height

        millimeters
        107.8
        63

        inches
        4.24
        2.48

    PCB Outline        width
        height

        millimeters
        121.5
        77.5

        inches
        4.78
        3.05

        Diagonal Dimension
            4.3"

    Viewing Area        Width
        Height

        millimeters
        59.56
        102.4

        inches
        2.35
        4.03

    Active Area        Width
        Height

        millimeters
        56.16
        93.6

        inches
        2.21
        3.69

        Weight
            126.3g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            5V
Supply Voltage for Logic Maximum
            5V

        Supply Voltage for Logic Typical
            5V

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.2V

        Forward Current Typical
            20mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        max

        Non-condensing
        85%

 cable Electronics
Electronics

        Controller Documents
            Raydium Semiconductor RM68120
Single Chip Driver with 16.7M color

for 480RGBx864 a-Si TFT LCD
Interface
            DOT-CLK interface / Generic RGB

 picture_as_pdf Datasheets
picture_as_pdfCFA920-TS User Guide 2013-08-02.pdf
(Datasheet V 2013-08-02, Hardware 1.0)
Previous Versions of Datasheetpicture_as_pdfCFA920-TS User Guide Preliminary Release 2013-04-26.pdf

 download Files and Downloads
folder_zip CAD Export - CFA920 CAD exports, generated images, for reference

Module Overall	width	height
millimeters	107.8	63
inches	4.24	2.48

PCB Outline	width	height
millimeters	121.5	77.5
inches	4.78	3.05

Viewing Area	Width	Height
millimeters	59.56	102.4
inches	2.35	4.03

Active Area	Width	Height
millimeters	56.16	93.6
inches	2.21	3.69

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	max
Non-condensing	85%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10588: R_MDIO needs populated with a 1.5K resistor

Products Affected:	CFA10037, CFA921-TS, CFA920-TS
Date Issued:	May 22, 2014
Summary:	R_MDIO needs populated with a 1.5K resistor
Description:	R_MDIO needs populated with a 1.5K resistor so that the device gets properly set up by Linux on start-up.
Reason:	MDIO times out before it can be detected.
Recommendation:	1. Install 1.5k pull-up to R_MDIO. Or 2. Use kernel version cfa-3.12.17, commit ID 2cbfe6e36266b82daac0a9e9aa92e0706e306411 located: https://github.com/crystalfontz/cfa_10036_kernel/tree/cfa-3.12.17 Please make sure you use the commit above if you decide to use this method.

Product Update #10584: The Linux SOM family has had a kernel and a build update.

Products Affected:	CFA-10036, CFA10037, CFA10055-8, CFA10056-4, CFA921-TS, CFA920-TS
Date Issued:	April 28, 2014
Summary:	The Linux SOM family has had a kernel and a build update.
Description:	Linux kernel update and build update.
Recommendation:	To access the new build please visit: http://images.crystalfontz.com/releases/

Product Update #10572: The CFA920-TS series has had a modification to the part numbering scheme. The part number has changed to signify the selection of the particular CFA10036 module utilized.

Product Affected:	CFA920-TS
Date Issued:	November 1, 2013
Summary:	The CFA920-TS series has had a modification to the part numbering scheme. The part number has changed to signify the selection of the particular CFA10036 module utilized.
Description:	The CFA920-TS's part number scheme was modified to allow for easier ordering and more efficient order processing. The following part numbers have been created: CFA920-TS1 (Uses a CFA100361) CFA920-TS2 (Uses a CFA100362) CFA920-TS5 (Uses a CFA100365) CFA920-TS6 (Uses a CFA100366)
Reason:	The CFA920-TS series has had a modification to the part numbering scheme. The part number has changed to signify the selection of the particular CFA10036 module utilized.

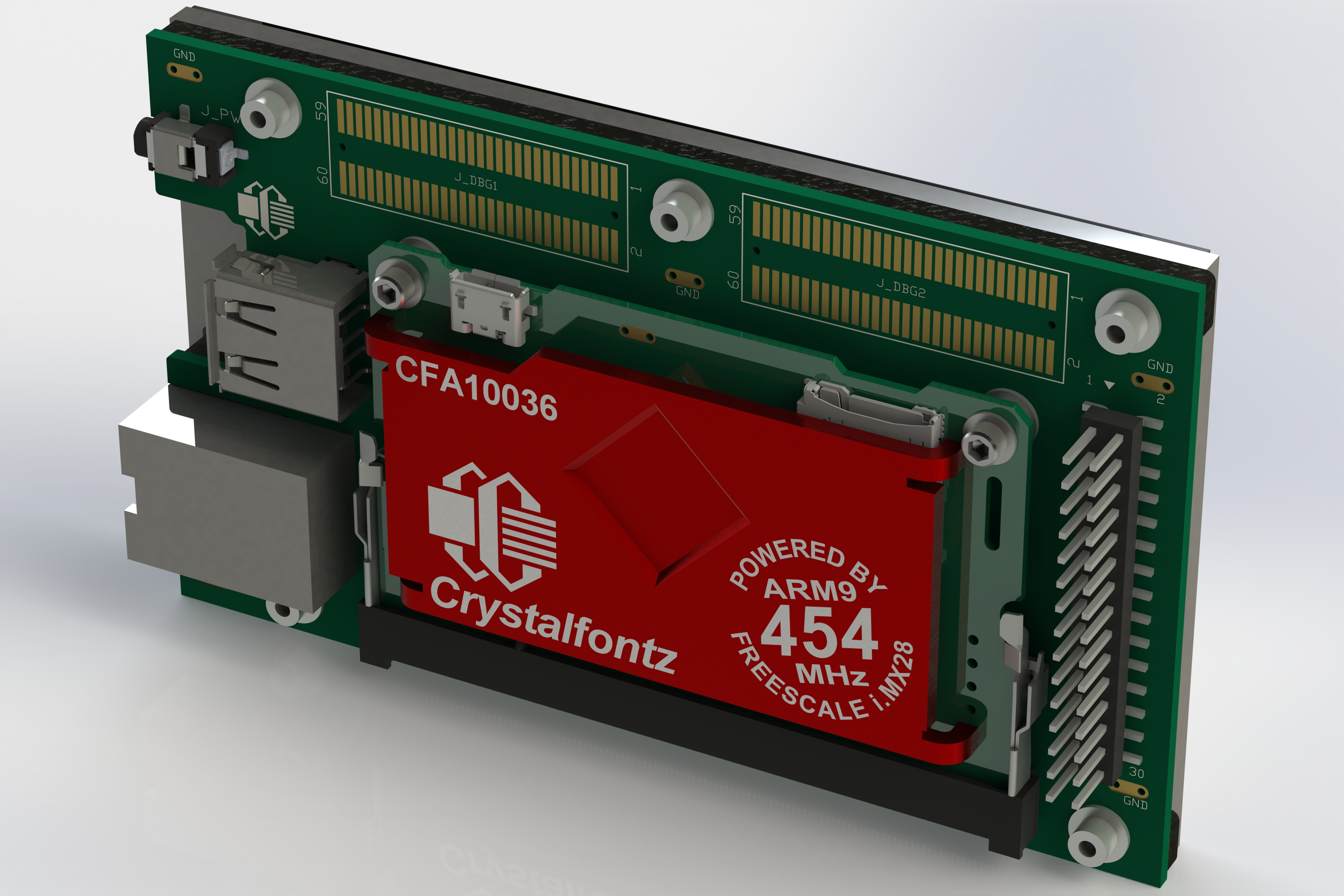

Product Update #10571: The CFA-10036 modules have been updated to include a heat shield to provide better thermal cooling for the i.MX28 processor.

Products Affected:	CFA-10036, CFA10037, CFA921-TS, CFA920-TS
Date Issued:	October 30, 2013
Summary:	The CFA-10036 modules have been updated to include a heat shield to provide better thermal cooling for the i.MX28 processor.
Reason:	To provide more efficient thermal cooling for the i.MX28 processor.

Product Update #10482: (New Product) CFA920-TS

New Product:	CFA920-TS
Date Issued:	April 22, 2013
Summary:	(New Product) CFA920-TS
Description:	Linux SOM: Internet Ready Linux SOM w/i.MX283 Processor, 4.3 inch 480x800 full color TFT touchscreen

Product Update #10481: (New Product) CFA920TS

New Product:	CFA920-TS
Date Issued:	April 22, 2013
Summary:	(New Product) CFA920TS
Description:	Linux SOM: Internet Ready Linux SOM w/i.MX283 Processor, 4.3 inch 480x800 full color TFT touchscreen

Product Update #10478: (New Product) CFA920TS

New Product:	CFA920-TS
Date Issued:	April 22, 2013
Summary:	(New Product) CFA920TS
Description:	Linux SOM: Internet Ready Linux SOM w/i.MX283 Processor, 4.3 inch 480x800 full color TFT touchscreen
