This product is discontinued and has been replaced by CFA632-YFH-KU

16x2 USB Character LCD EOL

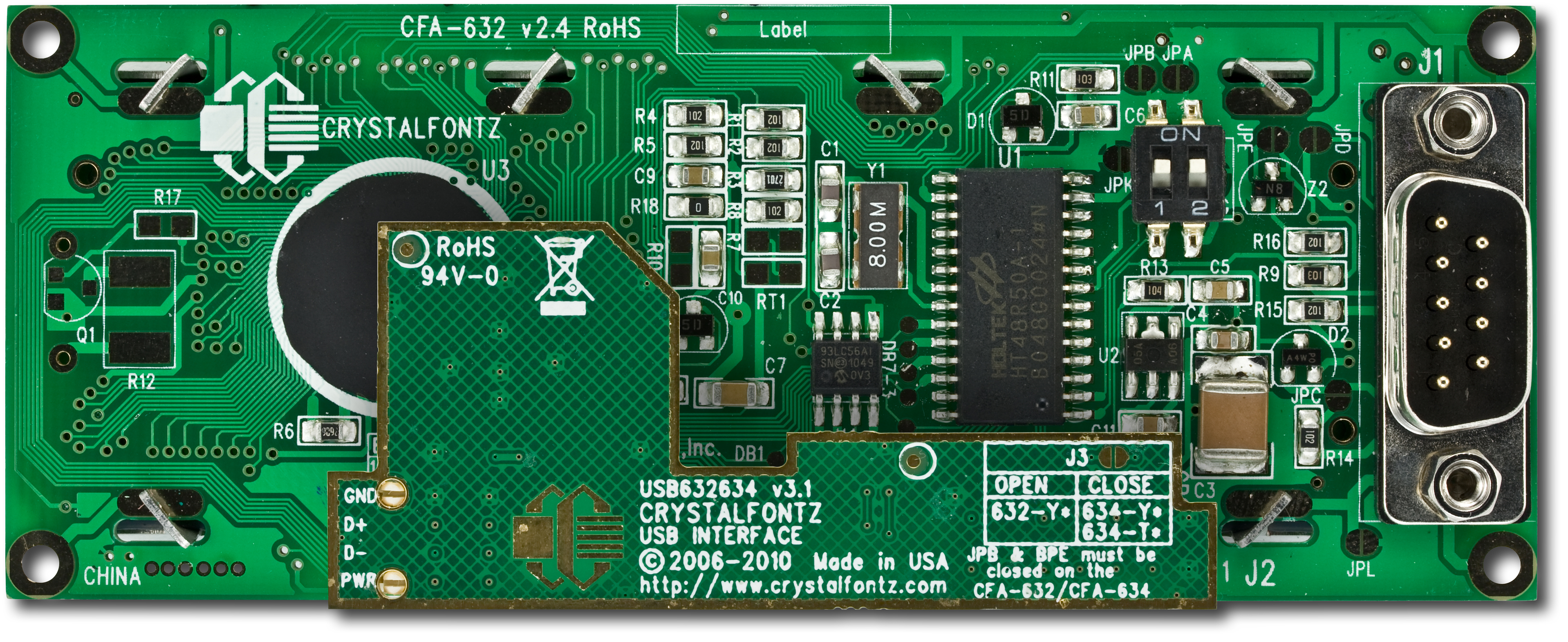

Part Number: CFA632-NFG-KU

CFA-632 USB LCD 16x2, No Backlight, FSTN Positive, Reflective -20°C to +70°C, 6:00

The CFA632 can use any of SIX interfaces on any modules in the family by simply changing the interface selection using a command setting and making the appropriate jumper configurations. The interfaces are:

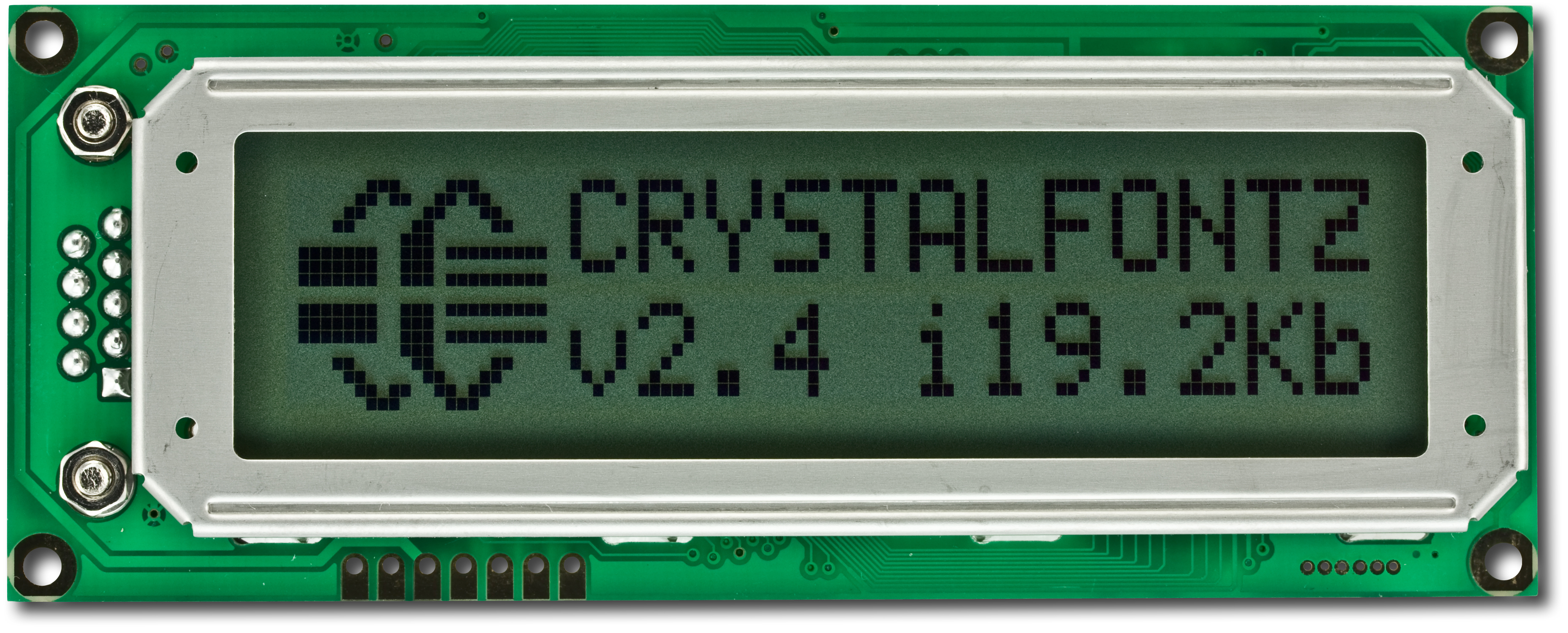

Large easy-to-read LCD in a compact size can display 16 characters x 2 lines. Overall module size is 108.00 mm width x 42.00 mm height x 19.90 mm depth (4.25" x 1.65" x 0.78"). Character height is 7.30 mm (0.29").

Optional PC CDROM mounting bracket with three choices of overlay for a single bay is available. Mounting dimensions are 5.25" (W) x 1" (H).

The CFA632 family has two colors choices:

  1. CFA632-YDI-Kx: Yellow-green array LED backlight with negative FFSTN transmissive mode LCD. Displays yellow-green characters on a dark (near-black) background. The display can be read in normal office lighting and in dark areas. May be difficult to read in direct sunlight.
  2. CFA632-YFH-Kx: Yellow-green array LED backlight with positive FSTN transflective mode LCD. Displays dark(near-black) characters on yellow-green background. The display can be read in normal office lighting, in dark areas, and in bright sunlight.

Use any of six interfaces on any module in the CFA632 family by simply changing the interface selection in a command and using the appropriate jumper configurations.

The displays have a 6 o’clock viewing angle (polarizer viewing direction)

Adjustable contrast. The module’s default contrast value will be acceptable for many applications. If necessary, you can adjust the contrast by using control command.

The modules have a RockWorks RW1067 controller.

.

Extended voltage (9-15 volts for interfaces using DB9 connector) and 5 volts power inputs standard for the controller. Backlight is 5 volts only.

Use the nonvolatile memory capability (EEPROM) to customize the “power-on” display settings.

Wide temperature range for operation is -20°C to +70°C.

RoHS compliant. You can download the Certificate of Compliance for ISO, RoHS, and REACH from the Doc/Files tab on the part number’s website page.




Part Change Notices

Subscribe to Part Change Notices by email Email subscription for changes to CFA632-NFG-KU or RSS RSS feed for changes to CFA632-NFG-KU
  • text_snippet
    Part Change Notice #10579: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation.
    Products Affected: CFA632-YMC-KS, CFA632-NFA-KS, CFA632-YFB-KU, CFA632-YMC-KU, CFA632-NFA-KU, CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP
    Date Issued: December 20, 2013
    Summary: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation.
    Last revision: v3.2.5
    Description: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation where the SPI_BUSY line is used as a busy indicator instead of the module's unused transmit line. Firmware will migrate from v3.2.5 to v3.2.6
    Reason: To maintain legacy functionality.
    Impact: Impact to customers utilizing SPI functionality only.
    Recommendation: For questions please contact Technical Service at 1-888-206-9720.
  • text_snippet
    Part Change Notice #10453: New v3.2 firmware to support CFA632 hardware v3.3 family of module
    Products Affected: CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU
    Date Issued: February 5, 2013
    Summary: New v3.2 firmware to support CFA632 hardware v3.3 family of module
    Last revision: FW v2.4
    Description: As part of our continuous improvement process, the CFA632 family of modules has been redesigned to fall more in line with our other Value Add families of intelligent modules.

    The new firmware for the CFA632 family of modules will retain the same stream based command structure.

    Changes:
    Control the Boot Screen – Ctrl+I (\009)
    This command has increased functionality to include, but not limited to;
    - Interface selection
    - Baud rate
    - Data normal / inverted
    - Splash screen

    Separate USB and Serial interface builds to support the on-board USB interface design.


    With the change from Samsung S6A0073 to Rockworks RW1067, the following commands and functionality are depreciated:

    + Show inverted blinking block cursor – Ctrl+G (\007)
    + Set Scrolling Marquee Characters - Ctrl+U (\021)
    + Enable Scrolling Marquee - Ctrl+V (\022)

    * Specifications are subject to change
    Reason: The firmware has been revised to support the hardware changes from the Samsung S6A0073 LCD controller to the Rockworks RW1067, and the Holtek HT48R30 one-time-programmable controller being replaced with the Cypress PSoC CY8C27443 for improved functionality
    Impact: This new firmware version has changes and depreciated commands and functionality.
    Recommendation: Engineering samples should be available Quarter 3, 2013. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.
    Availability: Q3 2013 - Samples available
    End of Q3 / Beginning Q4 2013 - Transition to new version when previous version is exhausted
    Q1 2014 - All CFA632 shipments new hardware
    Price Change: We are anticipating an increase in pricing.
    New pricing is TBD.
  • text_snippet
    Part Change Notice #10452: New v3.3 hardware version for CFA632 family of modules.
    Products Affected: CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU
    Date Issued: February 5, 2013
    Summary: New v3.3 hardware version for CFA632 family of modules.
    Last revision: HW v2.4
    Description: As part of our continuous improvement process, the CFA632 family of modules has been redesigned to fall more in line with our other Value Add families of intelligent modules.

    The module is keeping the same dimensions, mounting points, and existing header locations.

    Changes:
    - LCD controller is changing from Samsung S6A0073 to Rockworks RW1067
    - Holtek HT48R30 is being replaced by Cypress PSoC CY8C27443
    - USB interface integrated on PCB using FTDI FT232RL
    - PCB layout changed to accommodate new LCD controller, new microcontroller, integrated USB interfaces
    - The following hardware functionality has been migrated to firmware control;
    - - Interface selection
    - - Data normal / Inverted
    - - Splash screen control
    - - Baud rate

    * Specifications are subject to change
    Reason: Samsung S6A0073 LCD controller is EOL. Module has been redesigned to incorporate the Rockworks RW1067. The Holtek HT48R30 one-time-programmable controller replaced with the Cypress PSoC CY8C27443 for improved functionality.
    Impact: This new hardware version is designed to be as fit and form compatible as possible with the current shipping hardware. There are major changes to the PCB layout due to the re-design of the CFA632 family.

    Existing header locations and mounting points are renaming the same.

    Additional header locations have been added for programming the PSoC and future functionality.
    Recommendation: Engineering samples should be available Quarter 3, 2013. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.
    Availability: Q3 2013 - Samples available
    End of Q3 / Beginning Q4 2013 - Transition to new version when previous version is exhausted
    Q1 2014 - All CFA632 shipments new hardware
    Price Change: We are anticipating an increase in pricing.
    New pricing is TBD
  • text_snippet
    Product Update #10430: Parts bundled with, and options for WRUSBY11 will now be bundled with and have options for WRUSBY33.
    Products Affected: CFA635-TFE-KU, CFA635-TMF-KU, CFA635-YYE-KU, CFA633-YYH-KU, CFA633-TMI-KU, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU, CFA633-RDI-KU, CFA633-TFH-KU
    Date Issued: September 25, 2012
    Summary: Parts bundled with, and options for WRUSBY11 will now be bundled with and have options for WRUSBY33.
    Description: The WRUSBY33 cable is replacing the WRUSBY11 cable as our standard offering for product bundles and cable options for an internal USB connection for our line of intelligent modules.

    The WRUSBY11 has four individual connectors for +5v, -Data, +Data, and Ground. WRUSBY11 Product Page: https://www.crystalfontz.com/product/wrusby11-usb-motherboard-cable
    Reason
    Based on customer requests and feedback, the WRUSBY33 has a much simpler connection to the main board of a system with a 0.100" standard USB header. The mainboard end of the WRUSBY33 is a single piece 4 pin connector, vs the individual single pin connectors on the WRUSBY11.


    The WRUSBY33 has a single connector for +5v, -Data, +Data, and Ground that follows the standard pin out configuration. WRUSBY33 Product Page:
    https://www.crystalfontz.com/product/wrusby33-2mm-lcd-usb-cable
    Reason: Based on customer requests and feedback, the WRUSBY33 has a much simpler connection to the main board of a system with a 0.100" standard USB header. The mainboard end of the WRUSBY33 is a single piece 4 pin connector, vs the individual single pin connectors on the WRUSBY11.
    Impact: The change should have no fit, form, or function change if the system board being used has a standard 0.100" four pin header for USB connectivity that follows the the standard pin out configuration.

    Semi-Custom, or Defined Part (DP) numbers will not be affected.
    Recommendation: Continue to order your parts with internal USB cable as normal.

    If you currently use a Semi-Custom, or Defined Part (DP) number and would like to change to the WRUSBY33 for your part, please contact Engineering Services via support@crystalfontz.com and request the change.
    Availability: The WRUSBY33 will be replacing the WRUSBY11 effective 2012-09-25.
    Price Change: There is no price change associated with this product update notice.
  • text_snippet
    Part Change Notice #10317: Minor PCB revision to accommodate longer life MLCC capacitors. Hardware and firmware updating to v2.4.
    Products Affected: CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU
    Date Issued: February 1, 2011
    Summary: Minor PCB revision to accommodate longer life MLCC capacitors. Hardware and firmware updating to v2.4.
    Last revision: Hardware v2.2, Firmware v2.2
    Description: In a continuation of product improvement the CFA632 series has the following improvements:


    1. PCB changes to accommodate MLCC capacitors. This hardware revision to v2.4 impacts C7, C3, and C4.

    2. The firmware will be updated to v2.4 to reflect the new hardware version. No other changes to the firmware are being made.


    Minor PCB revision to v2.4 to accommodate longer life MLCC capacitors. Firmware will be updated to v2.4 reflect hardware version.
    Reason: Manufacturing improvements allow for building the CFA632 series with MLCC capacitors. The MLCC have a longer life than the electrolytic capacitors currently being used.
    Impact: The new version is designed to be Fit, Form, and Function compatible with previous versions of the CFA632 series.

    Please see the previous PCN form physical differences from previous versions:

    https://www.crystalfontz.com/products/pcn.phtml?id=10307
    Recommendation: Engineering samples should be available by the end of Quarter 1, 2011. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.
    Availability: Volume availability Second Quarter 2011.
    Price Change: The CFA632 series has incurred a slight pricing increase.
  • text_snippet
    Part Change Notice #10307: Update CFA632 series to firmware v2.2 and wide temperature LCD.
    Products Affected: CFA632-YMC-KS, CFA632-NFA-KS, CFA632-YFB-KU, CFA632-YMC-KU, CFA632-NFA-KU, CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU
    Date Issued: January 10, 2011
    Summary: Update CFA632 series to firmware v2.2 and wide temperature LCD.
    Last revision: Hardware v2.2, Firmware v2.0
    Description: In a continuation of product improvement the CFA632 series has the following improvements:
    1. Wide temperature support with -20°C to +70°C operation / -30°C to +80°C storage

    2. The bezel changed from black painted metal to stainless steel. Stainless steel has lower environmental impact and improves ESD protection. If your design has the bezel exposed, it will show the silver color of the stainless steel rather than the previous painted black bezel.

    3. The previous CFA632-YMC-KS and CFA632-YMC-KU (new CFA632-YDI-KS and CFA632-YDI-KU) changed from STN to double negative (FFSTN) LCD for improved appearance.

    4. Firmware revision to match hardware revision and is now displayed on the boot screen

    Reason: Improvements in design allow for better manufacturing, ESD protection, and appearance.
    Impact: The new version is designed to be Fit, Form, and Function compatible with previous versions of the CFA632 series. Semi-Custom and Defined Parts will have updated part numbers.
    Recommendation: Engineering samples should be available by the end of Quarter 1, 2011. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.
    Availability: Volume availability Second Quarter 2011.
    Price Change: No price change at this time
    Attachment: 632_Wide_Temp_PCN.pdf (244KB)
