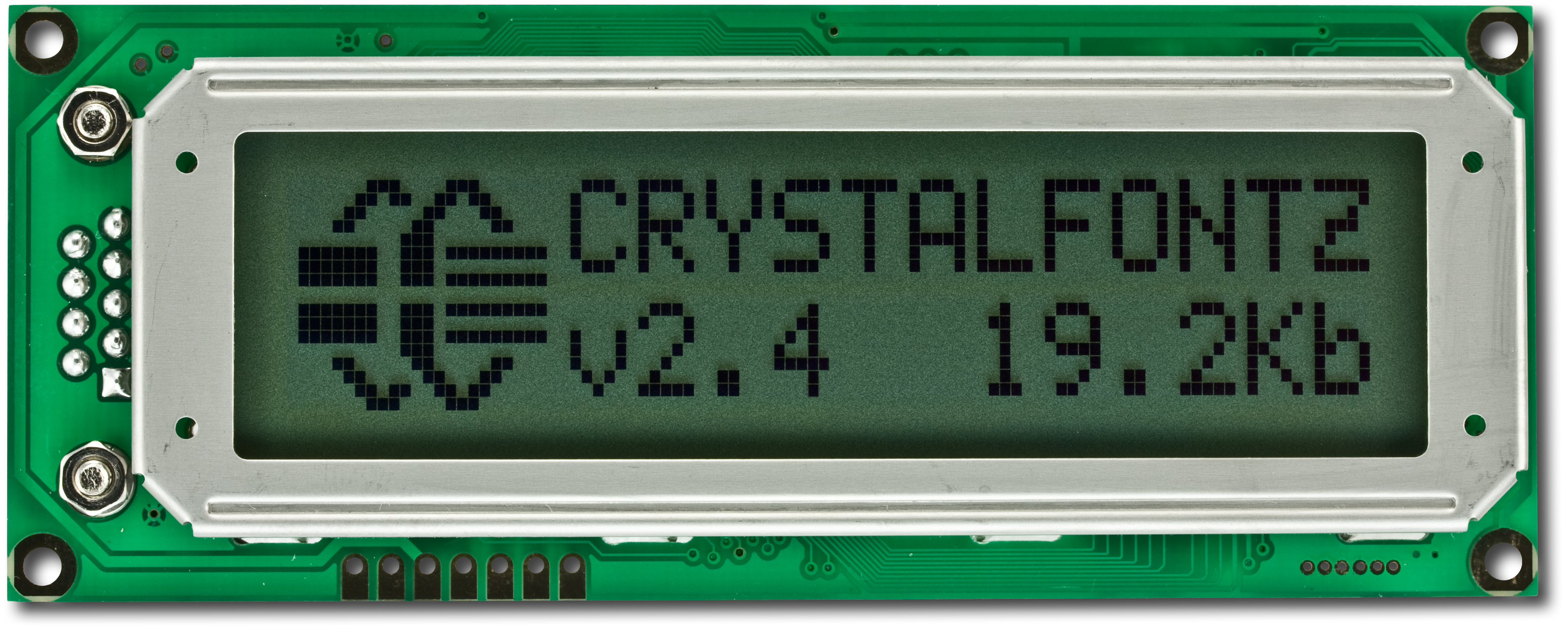

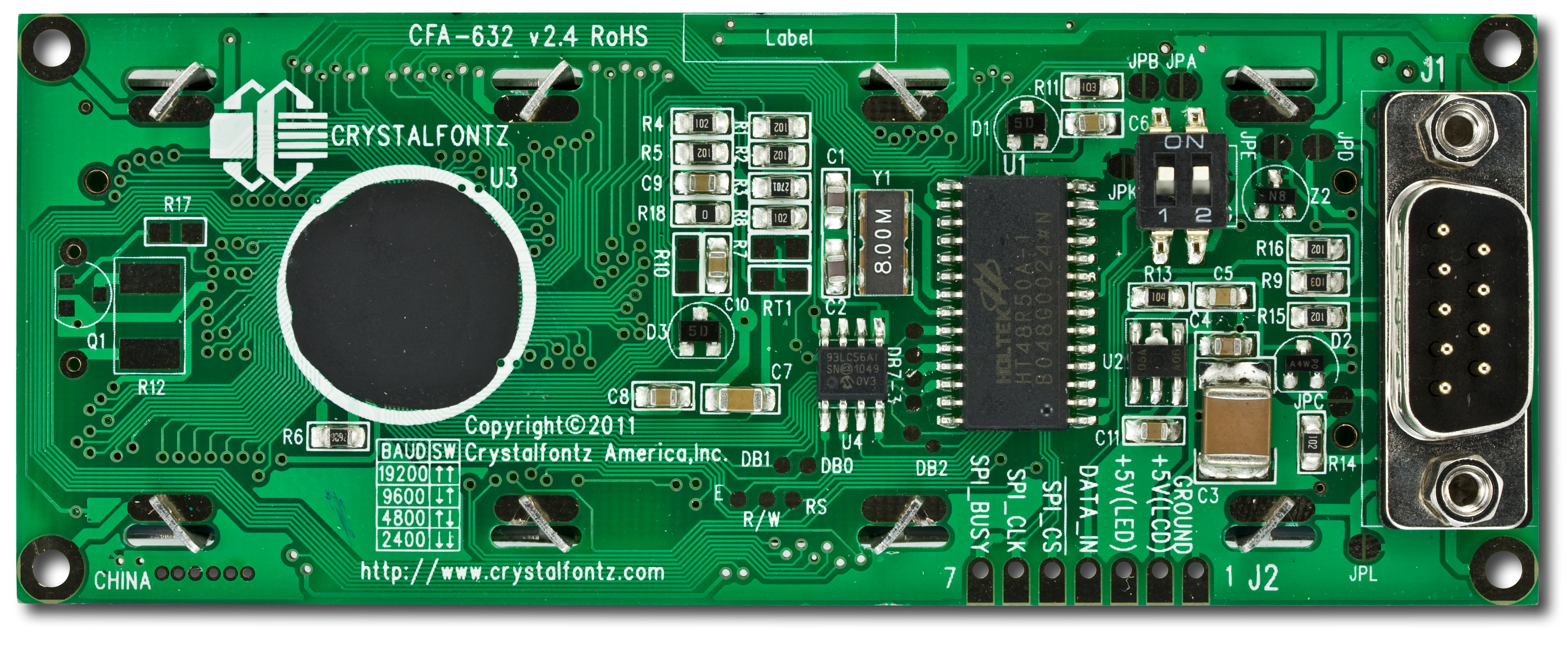

[EOL] Six Interface 16x2 Character LCDPart Number: CFA632-NFG-KSCFA-632 Serial LCD 16x2, RoHS Compliant, No Backlight, FSTN Positive, Reflective -20°C to +70°C 6:00

	The CFA632 can use any of SIX interfaces on any modules in the family by simply changing the interface selection using a command setting and making the appropriate jumper configurations. The interfaces are:
USB
RS232

	Logic Level Serial
Logic Level Serial inverted
I2C
SPI

	Large easy-to-read LCD in a compact size can display 16 characters x 2 lines. Overall module size is 108.00 mm width x 42.00 mm height x 19.90 mm depth (4.25" x 1.65" x 0.78"). Character height is 7.30 mm (0.29").

	Optional PC CDROM mounting bracket with three choices of overlay for a single bay is available. Mounting dimensions are 5.25" (W) x 1" (H).

	The CFA632 family has two colors choices:
	CFA632-YDI-Kx: Yellow-green array LED backlight with negative FFSTN transmissive mode LCD. Displays yellow-green characters on a dark (near-black) background. The display can be read in normal office lighting and in dark areas. May be difficult to read in direct sunlight.
	CFA632-YFH-Kx: Yellow-green array LED backlight with positive FSTN transflective mode LCD. Displays dark(near-black) characters on yellow-green background. The display can be read in normal office lighting, in dark areas, and in bright sunlight.

	Use any of six interfaces on any module in the CFA632 family by simply changing the interface selection in a command and using the appropriate jumper configurations.

	The displays have a 6 o’clock viewing angle (polarizer viewing direction)

	Adjustable contrast. The module’s default contrast value will be acceptable for many applications. If necessary, you can adjust the contrast by using control command.

	The modules have a RockWorks RW1067 controller.

	.

	Extended voltage (9-15 volts for interfaces using DB9 connector) and 5 volts power inputs standard for the controller. Backlight is 5 volts only.

	Use the nonvolatile memory capability (EEPROM) to customize the “power-on” display settings.

	Wide temperature range for operation is -20°C to +70°C.

	RoHS compliant. You can download the Certificate of Compliance for ISO, RoHS, and REACH from the Doc/Files tab on the part number’s website page.
Product VariationsInterfacesSPII2CLogic Level Serial InvertedLogic Level SerialUSBRS232
ColorsDark on Yellow-Green
Yellow-Green LED BacklightYellow-Green on Dark
Yellow-Green LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2

    Module Overall        width
        height
        depth

        millimeters
        108
        42
        15.9

        inches
        4.25
        1.65
        0.63

    PCB Outline        width
        height
        depth

        millimeters
        108
        42
        15.9

        inches
        4.25
        1.65
        0.63

    Viewing Area        Width
        Height

        millimeters
        82.3
        22.5

        inches
        3.24
        0.89

    Active Area        Width
        Height

        millimeters
        74.82
        15.8

        inches
        2.95
        0.62

    Character Size        Width
        Height

        millimeters
        3.9
        6.38

        inches
        0.154
        0.251

    Character Pitch        Width
        Height

        millimeters
        3.9
        8.5

        inches
        0.154
        0.335

    Dot Size        Width
        Height

        millimeters
        0.72
        0.86

        inches
        0.028
        0.034

    Dot Pitch        Width
        Height

        millimeters
        0.78
        0.92

        inches
        0.031
        0.036

        Weight
            52g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Reflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            Logic Level Serial, RS232, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFA632-NFG-KS Data Sheet v1.3.pdf
(Datasheet V 1.3, Hardware 2.4, Firmware 2.4)
picture_as_pdfCFA632-NFG-KS Data Sheet v1.2.pdf
(Datasheet V 1.2, Hardware 2.4, Firmware 2.4)
picture_as_pdfCFA632-NFG-KS Data Sheet v1.1.pdf
(Datasheet V 1.1, Hardware 2.4, Firmware 2.4)
picture_as_pdfCFA632-NFG-KS Data Sheet v1.0.pdf
(Datasheet V 1.0, Hardware 2.2, Firmware 2.2)
 download Files and Downloads
picture_as_pdf Hardware Design - Drive Bay Bracket Overlay Template
picture_as_pdf Hardware Design - Drive Bay Mounting Bracket

Interfaces	SPI I2C Logic Level Serial Inverted Logic Level Serial USB RS232

Colors	Dark on Yellow-Green Yellow-Green LED Backlight Yellow-Green on Dark Yellow-Green LED Backlight

Module Overall	width	height	depth
millimeters	108	42	15.9
inches	4.25	1.65	0.63

PCB Outline	width	height	depth
millimeters	108	42	15.9
inches	4.25	1.65	0.63

Viewing Area	Width	Height
millimeters	82.3	22.5
inches	3.24	0.89

Active Area	Width	Height
millimeters	74.82	15.8
inches	2.95	0.62

Character Size	Width	Height
millimeters	3.9	6.38
inches	0.154	0.251

Character Pitch	Width	Height
millimeters	3.9	8.5
inches	0.154	0.335

Dot Size	Width	Height
millimeters	0.72	0.86
inches	0.028	0.034

Dot Pitch	Width	Height
millimeters	0.78	0.92
inches	0.031	0.036

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10579: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation.

Products Affected:	CFA632-YMC-KS, CFA632-NFA-KS, CFA632-YFB-KU, CFA632-YMC-KU, CFA632-NFA-KU, CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP
Date Issued:	December 20, 2013
Summary:	Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation.
Last revision:	v3.2.5
Description:	Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation where the SPI_BUSY line is used as a busy indicator instead of the module's unused transmit line. Firmware will migrate from v3.2.5 to v3.2.6
Reason:	To maintain legacy functionality.
Impact:	Impact to customers utilizing SPI functionality only.
Recommendation:	For questions please contact Technical Service at 1-888-206-9720.

Part Change Notice #10453: New v3.2 firmware to support CFA632 hardware v3.3 family of module

Products Affected:	CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU
Date Issued:	February 5, 2013
Summary:	New v3.2 firmware to support CFA632 hardware v3.3 family of module
Last revision:	FW v2.4
Description:	As part of our continuous improvement process, the CFA632 family of modules has been redesigned to fall more in line with our other Value Add families of intelligent modules. The new firmware for the CFA632 family of modules will retain the same stream based command structure. Changes: Control the Boot Screen – Ctrl+I (\009) This command has increased functionality to include, but not limited to; - Interface selection - Baud rate - Data normal / inverted - Splash screen Separate USB and Serial interface builds to support the on-board USB interface design. With the change from Samsung S6A0073 to Rockworks RW1067, the following commands and functionality are depreciated: + Show inverted blinking block cursor – Ctrl+G (\007) + Set Scrolling Marquee Characters - Ctrl+U (\021) + Enable Scrolling Marquee - Ctrl+V (\022) * Specifications are subject to change
Reason:	The firmware has been revised to support the hardware changes from the Samsung S6A0073 LCD controller to the Rockworks RW1067, and the Holtek HT48R30 one-time-programmable controller being replaced with the Cypress PSoC CY8C27443 for improved functionality
Impact:	This new firmware version has changes and depreciated commands and functionality.
Recommendation:	Engineering samples should be available Quarter 3, 2013. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.
Availability:	Q3 2013 - Samples available End of Q3 / Beginning Q4 2013 - Transition to new version when previous version is exhausted Q1 2014 - All CFA632 shipments new hardware
Price Change:	We are anticipating an increase in pricing. New pricing is TBD.

Part Change Notice #10452: New v3.3 hardware version for CFA632 family of modules.

Products Affected:	CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU
Date Issued:	February 5, 2013
Summary:	New v3.3 hardware version for CFA632 family of modules.
Last revision:	HW v2.4
Description:	As part of our continuous improvement process, the CFA632 family of modules has been redesigned to fall more in line with our other Value Add families of intelligent modules. The module is keeping the same dimensions, mounting points, and existing header locations. Changes: - LCD controller is changing from Samsung S6A0073 to Rockworks RW1067 - Holtek HT48R30 is being replaced by Cypress PSoC CY8C27443 - USB interface integrated on PCB using FTDI FT232RL - PCB layout changed to accommodate new LCD controller, new microcontroller, integrated USB interfaces - The following hardware functionality has been migrated to firmware control; - - Interface selection - - Data normal / Inverted - - Splash screen control - - Baud rate * Specifications are subject to change
Reason:	Samsung S6A0073 LCD controller is EOL. Module has been redesigned to incorporate the Rockworks RW1067. The Holtek HT48R30 one-time-programmable controller replaced with the Cypress PSoC CY8C27443 for improved functionality.
Impact:	This new hardware version is designed to be as fit and form compatible as possible with the current shipping hardware. There are major changes to the PCB layout due to the re-design of the CFA632 family. Existing header locations and mounting points are renaming the same. Additional header locations have been added for programming the PSoC and future functionality.
Recommendation:	Engineering samples should be available Quarter 3, 2013. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.
Availability:	Q3 2013 - Samples available End of Q3 / Beginning Q4 2013 - Transition to new version when previous version is exhausted Q1 2014 - All CFA632 shipments new hardware
Price Change:	We are anticipating an increase in pricing. New pricing is TBD

Part Change Notice #10317: Minor PCB revision to accommodate longer life MLCC capacitors. Hardware and firmware updating to v2.4.

Products Affected:	CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU
Date Issued:	February 1, 2011
Summary:	Minor PCB revision to accommodate longer life MLCC capacitors. Hardware and firmware updating to v2.4.
Last revision:	Hardware v2.2, Firmware v2.2
Description:	In a continuation of product improvement the CFA632 series has the following improvements: PCB changes to accommodate MLCC capacitors. This hardware revision to v2.4 impacts C7, C3, and C4. The firmware will be updated to v2.4 to reflect the new hardware version. No other changes to the firmware are being made. Minor PCB revision to v2.4 to accommodate longer life MLCC capacitors. Firmware will be updated to v2.4 reflect hardware version.
Reason:	Manufacturing improvements allow for building the CFA632 series with MLCC capacitors. The MLCC have a longer life than the electrolytic capacitors currently being used.
Impact:	The new version is designed to be Fit, Form, and Function compatible with previous versions of the CFA632 series. Please see the previous PCN form physical differences from previous versions: https://www.crystalfontz.com/products/pcn.phtml?id=10307
Recommendation:	Engineering samples should be available by the end of Quarter 1, 2011. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.
Availability:	Volume availability Second Quarter 2011.
Price Change:	The CFA632 series has incurred a slight pricing increase.

Product Update #10310: New Product in Intelligent Serial LCD Modules: CFA632-NFG-KS

New Product:	CFA632-NFG-KS
Date Issued:	January 11, 2011
Summary:	New Product in Intelligent Serial LCD Modules: CFA632-NFG-KS
Description:	CFA-632 Serial LCD 16x2, RoHS Compliant, No Backlight, FSTN Positive, Reflective -20°C to +70°C 6:00

Part Change Notice #10307: Update CFA632 series to firmware v2.2 and wide temperature LCD.

Products Affected:	CFA632-YMC-KS, CFA632-NFA-KS, CFA632-YFB-KU, CFA632-YMC-KU, CFA632-NFA-KU, CFA632-NFG-KS, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-NFG-KU, CFA632-YFH-KU, CFA632-YDI-KU
Date Issued:	January 10, 2011
Summary:	Update CFA632 series to firmware v2.2 and wide temperature LCD.
Last revision:	Hardware v2.2, Firmware v2.0
Description:	In a continuation of product improvement the CFA632 series has the following improvements: Wide temperature support with -20°C to +70°C operation / -30°C to +80°C storage The bezel changed from black painted metal to stainless steel. Stainless steel has lower environmental impact and improves ESD protection. If your design has the bezel exposed, it will show the silver color of the stainless steel rather than the previous painted black bezel. The previous CFA632-YMC-KS and CFA632-YMC-KU (new CFA632-YDI-KS and CFA632-YDI-KU) changed from STN to double negative (FFSTN) LCD for improved appearance. Firmware revision to match hardware revision and is now displayed on the boot screen
Reason:	Improvements in design allow for better manufacturing, ESD protection, and appearance.
Impact:	The new version is designed to be Fit, Form, and Function compatible with previous versions of the CFA632 series. Semi-Custom and Defined Parts will have updated part numbers.
Recommendation:	Engineering samples should be available by the end of Quarter 1, 2011. Please send an email to support@crystalfontz.com to work with our engineering and support team to assist you with the migration.
Availability:	Volume availability Second Quarter 2011.
Price Change:	No price change at this time
Attachment:	632_Wide_Temp_PCN.pdf (244KB)

[EOL] Six Interface 16x2 Character LCD

Part Number: CFA632-NFG-KS

Product Variations

Interfaces

Colors

Physical Characteristics

Optical Characteristics

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #10579: Reverted the SPI functionality to Crystalfontz CFA632 legacy implementation.

Part Change Notice #10453: New v3.2 firmware to support CFA632 hardware v3.3 family of module

Part Change Notice #10452: New v3.3 hardware version for CFA632 family of modules.

Part Change Notice #10317: Minor PCB revision to accommodate longer life MLCC capacitors. Hardware and firmware updating to v2.4.

Product Update #10310: New Product in Intelligent Serial LCD Modules: CFA632-NFG-KS

Part Change Notice #10307: Update CFA632 series to firmware v2.2 and wide temperature LCD.
