16x2 RS232 Character LCD from Crystalfontz

Product

Home » Products » Serial LCD Displays » Character

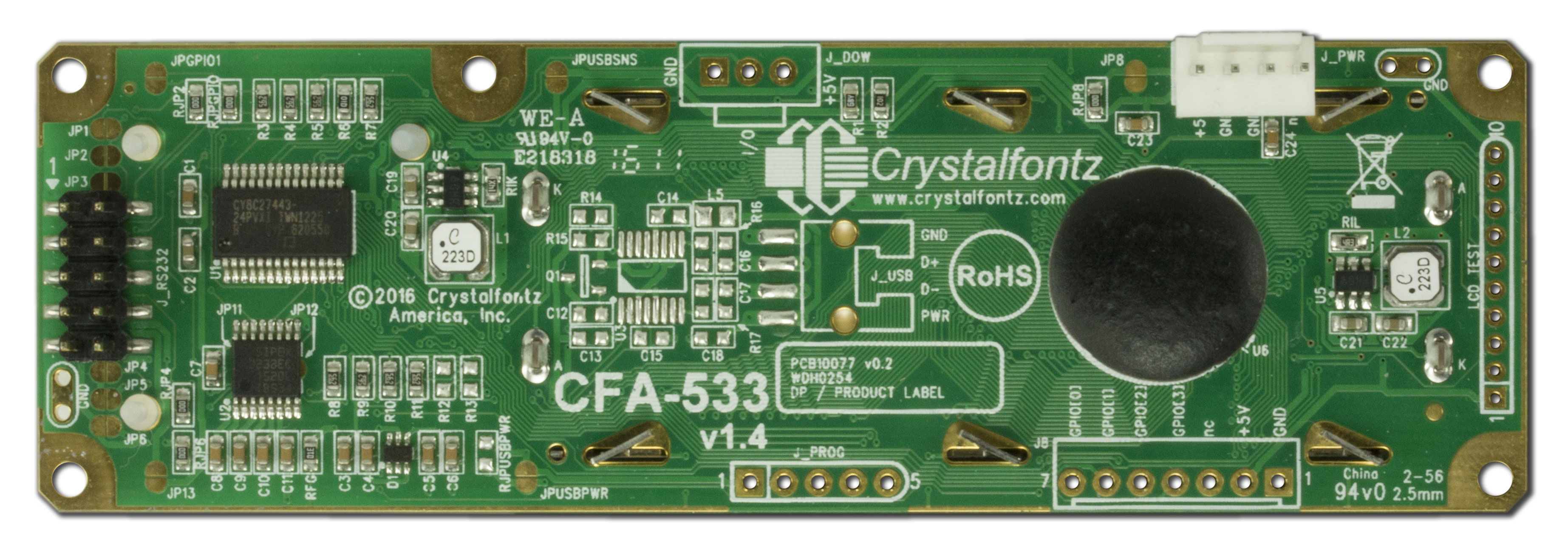

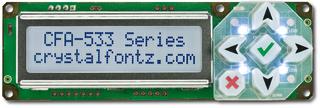

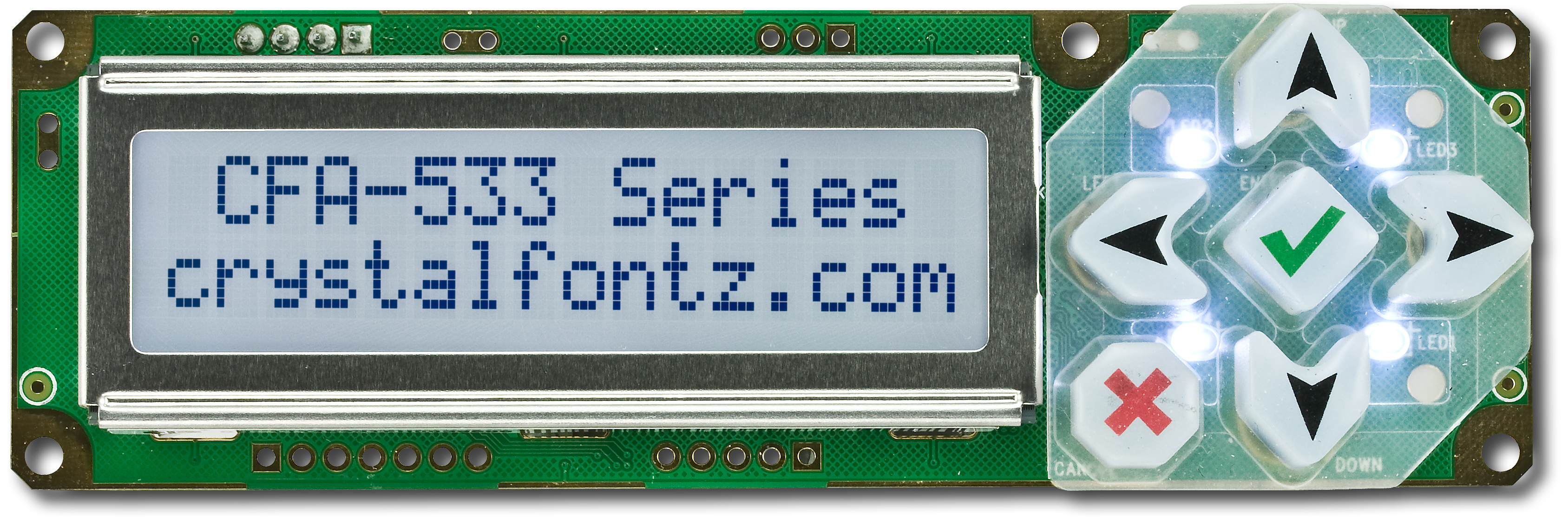

16x2 RS232 Character LCDPart Number: CFA533-TFH-KSThis display has a serial interface with full swing RS232. This display is truly a front-panel solution, not just an LCD module.  Designed to fit in a 1U server enclosure, it is by no means confined to one.  This display can drive LEDs using the GPIOs provided, configure headless servers, or, with the right software, be a wired remote for your home theater PC.
It has four directional buttons, an enter (check) key, and cancel ('x') key.  Instead of using a corruptible stream-based communication protocol, it uses a 16-bit CRC protected packet-based protocol to communicate with its host, meaning that line noise, environmental interference, etc.,  won't cause the display to start any process on your host unless it was actually initiated by a user.  Because both the keypad and LCD are backlit, this display is great for low-light conditions.
The CFA533 is backward compatible with the CFA633 for its communication interface, but has added features such as 3.3v to 5v operating range, ability to change the keypad backlight brightness separately from the LCD backlight, a stainless steel bezel, and a single supply voltage for both logic and backlighting.  Voltage compensated single-supply 3.3v to 5.5v operation allows the module to easily work with a wide variety of power supplies.  The CFA533 is the logical progression for any application already using a CFA633, but not utilizing the CFA633 fan functionality.  With all its features, this display is perfect for the display and user interface of your next project that requires an LCD and keypad without fan control.
	Wide power supply voltage range (VDD = +3.3v to +5.5v) is perfect for embedded systems.
	Contrast and backlights are fully compensated over the supply voltage range. No adjustments are needed to the contrast setting or backlight brightness over the full range of power supply input voltage.
	Only a single supply is needed.
	Robust packet based communications protocol with 16-bit CRC.
	Compact size: fits in a 1U rack mount case (35mm overall height).
	Advanced digital GPIO control with PWM output.
	Integrated LED backlit 6-button translucent silicon keypad with screened legend.
Available in a 5.25" half-height LCD drive bay kit when adding to cart.
	ATX power supply control functionality allows the buttons on the CFA-533 to replace the "power" and "reset" buttons on your system, simplifying your front panel design
	Temperature monitoring: up to 32 channels at up to 0.5 deg C absolute accuracy. Ready-to-use WRDOWY17 Dallas Semiconductor 1-Wire temperature sensors are optional. Alternatively, you can create your own sensors using DS1822 or DS18B20 parts and the tutorial on creating temperature sensors.
	Non-volatile memory (EEPROM) capability: Customize the "power-on" display settings plus a 16-byte "scratch" register for storing IP, netmask, system serial number, etc.
Sample applications and source code readily available: cfTest, CrystalControl2, and Linux Example Code.

Not sure which RS232 display module to choose? Compare all of our intelligent display modules.

Currently Shipping: HW Version 1.4, Firmware Version: S1v2

Product VariationsInterfacesI2CLogic Level SerialRS232USB
ColorsDark on Light Gray
White LED BacklightWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        110.5
        35
        25.6


        inches
        4.35
        1.38
        1.01

*depth doesn't include Keypad


    PCB Outline        width
        height


        millimeters
        110.5
        35


        inches
        4.35
        1.38



        Diagonal Dimension
            2.26"


    Viewing Area        Width
        Height


        millimeters
        61
        15.8


        inches
        2.40
        0.62



    Active Area        Width
        Height


        millimeters
        56.2
        11.5


        inches
        2.21
        0.45



    Character Size        Width
        Height


        millimeters
        2.95
        5.55


        inches
        0.116
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.95


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.55
        0.65


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            41g


        Keystroke Travel
            2.4mm

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Interface
            RS232

 picture_as_pdf Datasheets
picture_as_pdfCFA533-xxx-KSv1.4.pdf
(Hardware 1.4, Firmware s1v2)
 download Files and Downloads
folder_zip CAD Export - CFA533 KS / KL / KC -  3D CAD Reference Files
settings_application CAD Export - CFA533 KS / KL / KC - 3D E-Drawing Viewer File
settings_application CAD Export - CFA533 Family HW v1.1 2D CAD.dwg
settings_application CAD Export - CFA533 Family HW v1.1 2D CAD.dxf
picture_as_pdf 1 to 1 Template
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Add to cart without customizations
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:


        Prices without customizations:


            Quantity
            Unit Price


            1
            $63.69

            10
            $61.84

            20
            $57.32

            50
            $52.77

            100
            $48.28

            200
            $43.76

            500
            $39.24

            1000 *
            $34.72

817 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
