128x36 OLED Seeeduino Development Kit

Part Number: CFA216

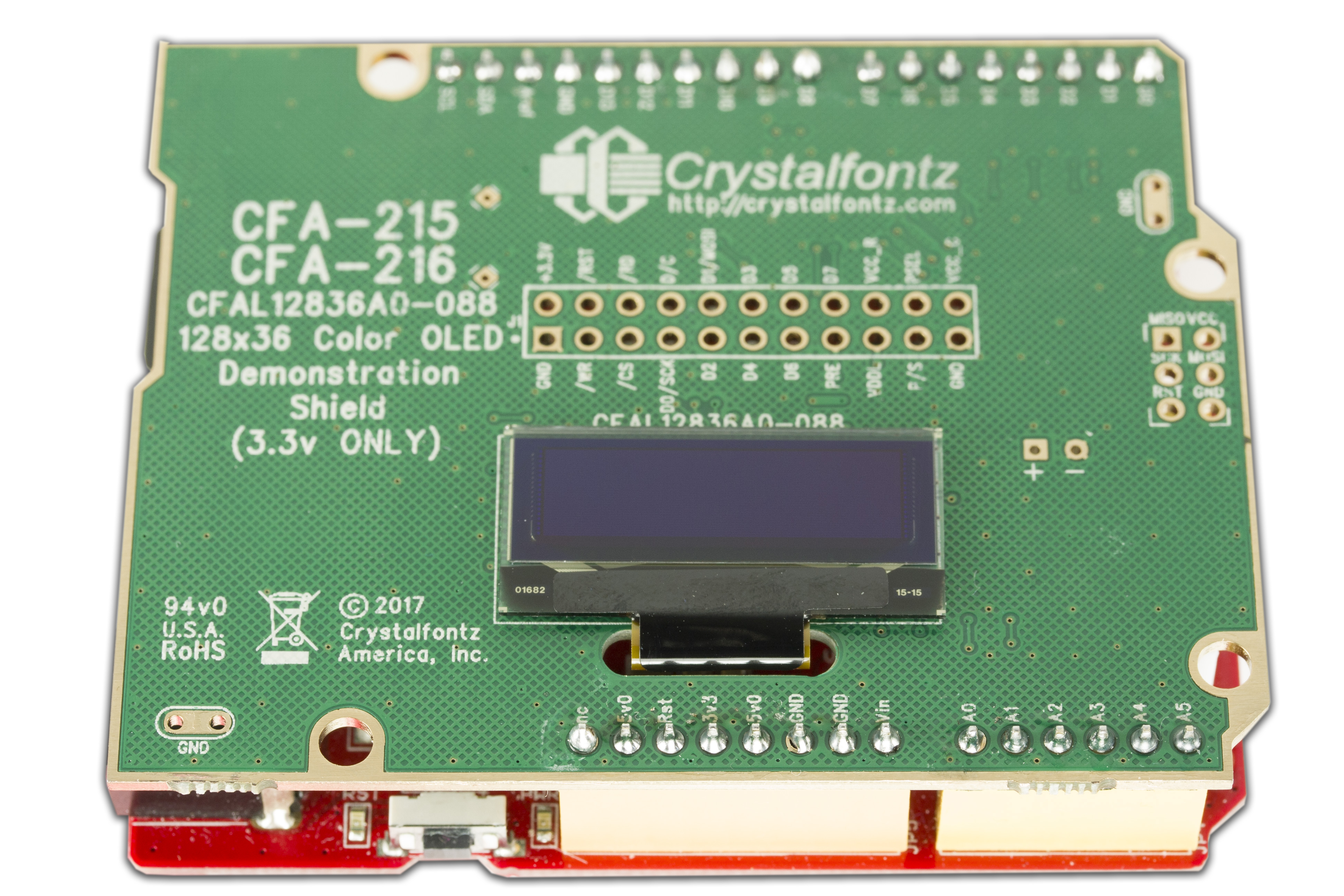

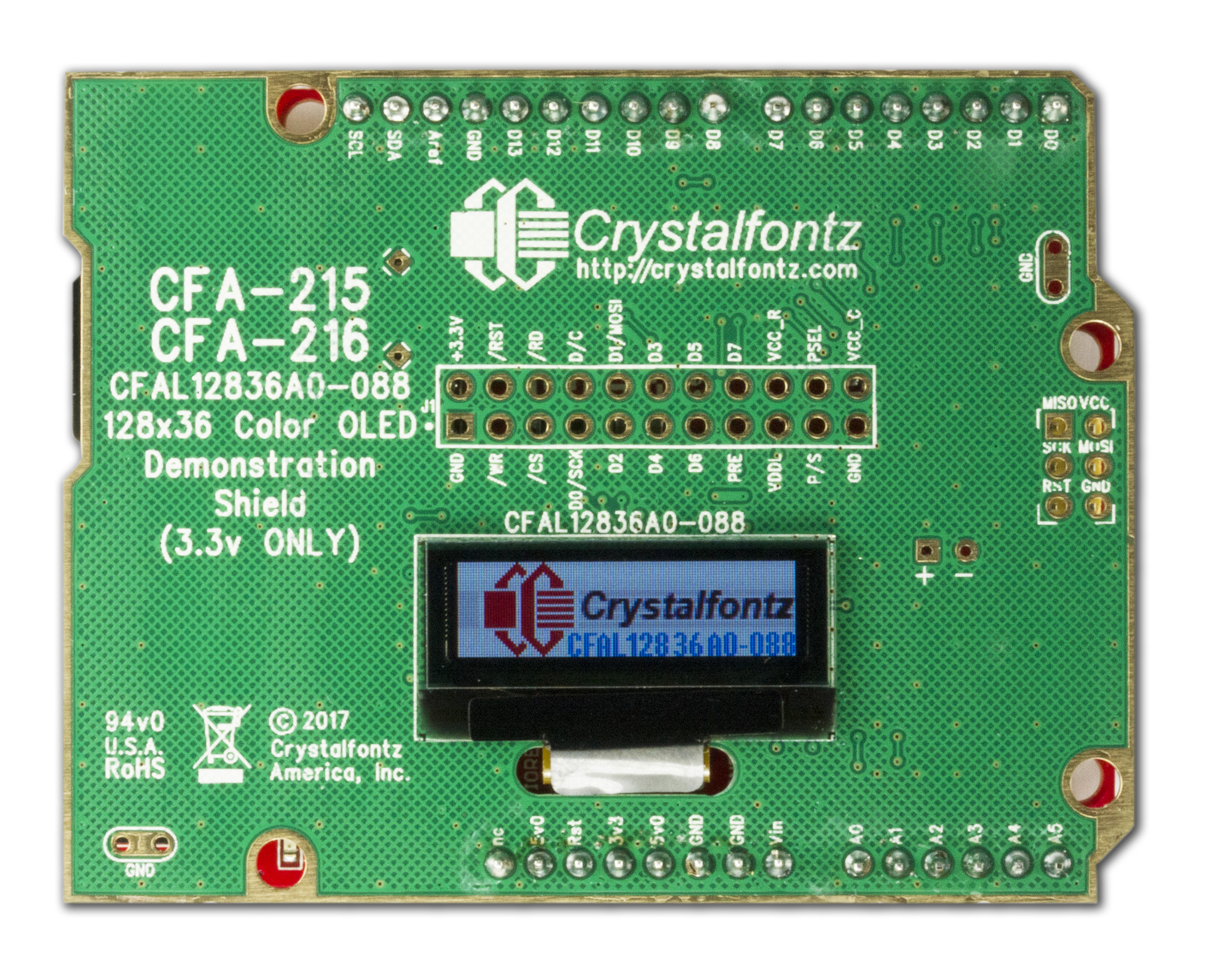

This OLED development kit includes our 128x36 Color OLED display module mounted on a CFA-10082 demonstration shield plugged into a Seeeduino (Arduino UNO Clone with switchable 3.3/5v power).


The Demonstration shield includes:
MicrosSD card
Backlight Driver
Jumpable for multiple configuration options
Same physical outline as a Seeeduino/Arduino
Only 3.3v

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  128 x 36

  PCB Outline	width	height
  millimeters	68.6	53.3
  inches	2.70	2.10

  Diagonal Dimension

  0.88"

  Active Area	Width	Height
  millimeters	21.48	6.028
  inches	0.85	0.24

  Dot Size	Width	Height
  millimeters	0.032	0.148
  inches	0.0013	0.0058

  Dot Pitch	Width	Height
  millimeters	0.168	0.168
  inches	0.0066	0.0066

  Flexible Cable (FFC/FPC)	length
  millimeters	17
  inches	0.669

  Weight

  31.2g

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	OLED
  Polarizer	Emissive
  View Angle	>160°

  Foreground Color	RGB
  Background Color	Black

• nature Environmental

  Environmental

  Operating Temperatures	min	max
  Celsius	-40°	70°
  Fahrenheit	-40°	158°

  Storage Temperatures	min	max
  Celsius	-40°	85°
  Fahrenheit	-40°	185°

• cable Electronics

  Electronics

  Interface

  USB

• download Files and Downloads
  folder_zip Hardware Design - Hardware Build Package

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
