                In order to keep this display in production over the long term, we have revised it to the CFAG12864Q1-TMI-E1-2.  Please contact support with any questions.

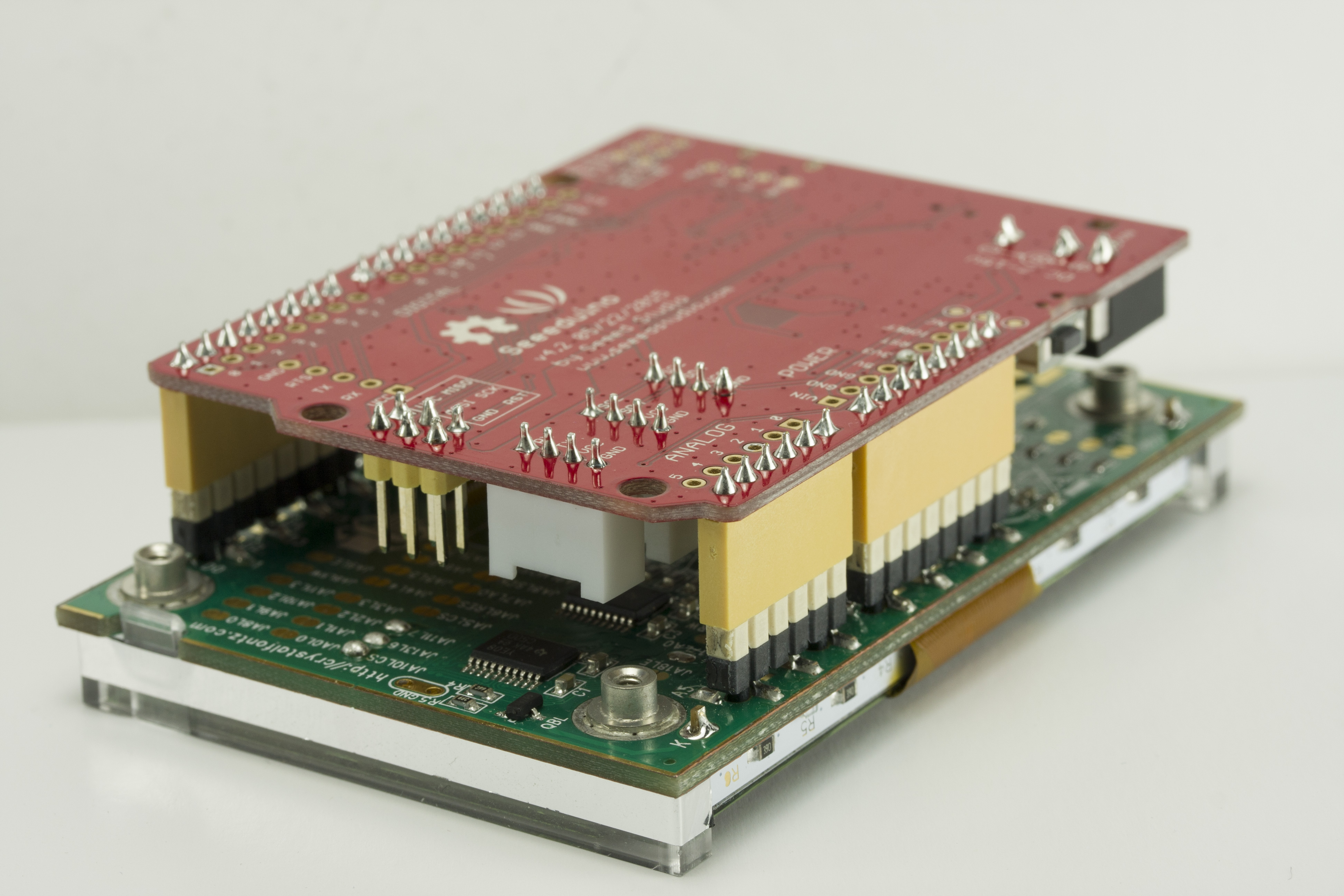

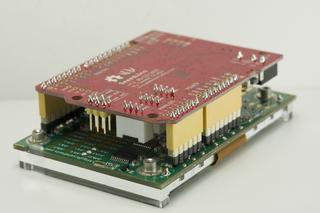

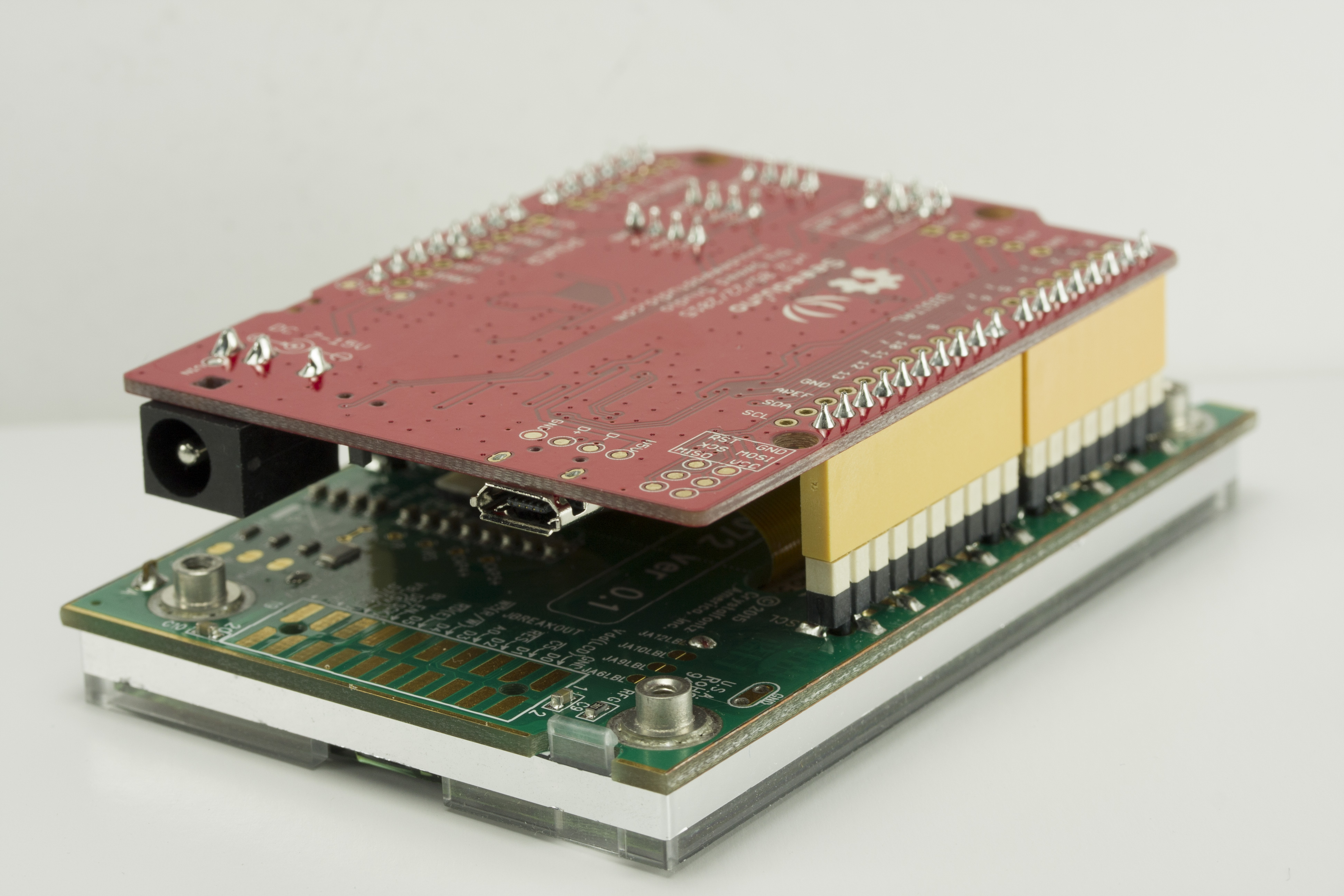

Seeeduino With Graphic LCD - White On BluePart Number: CFA212-TMIPerfect for hackers who don't want to take the time to do tedious assembly, this development kit has an Seeeduino (Arduino Uno R3 clone) with a

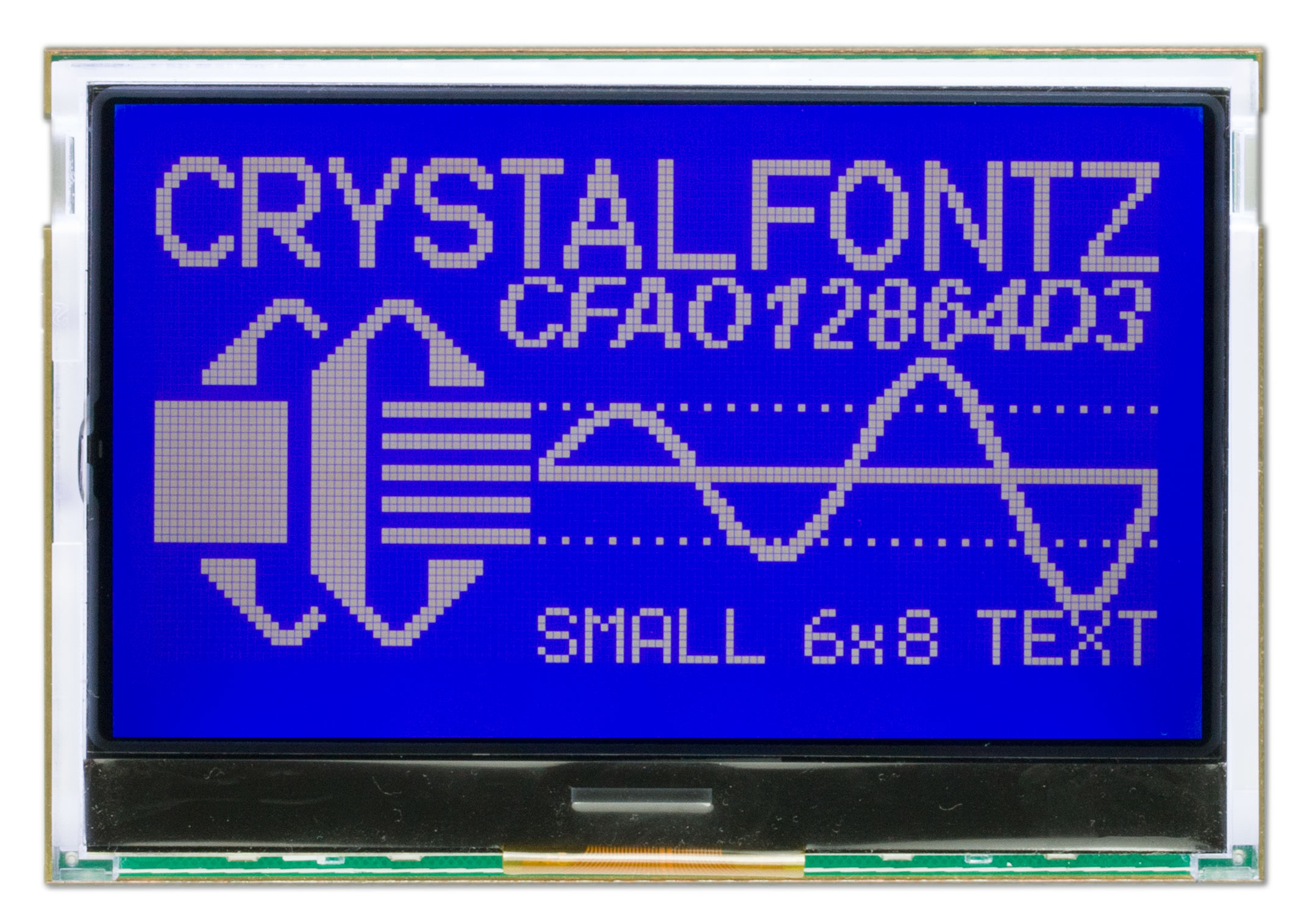

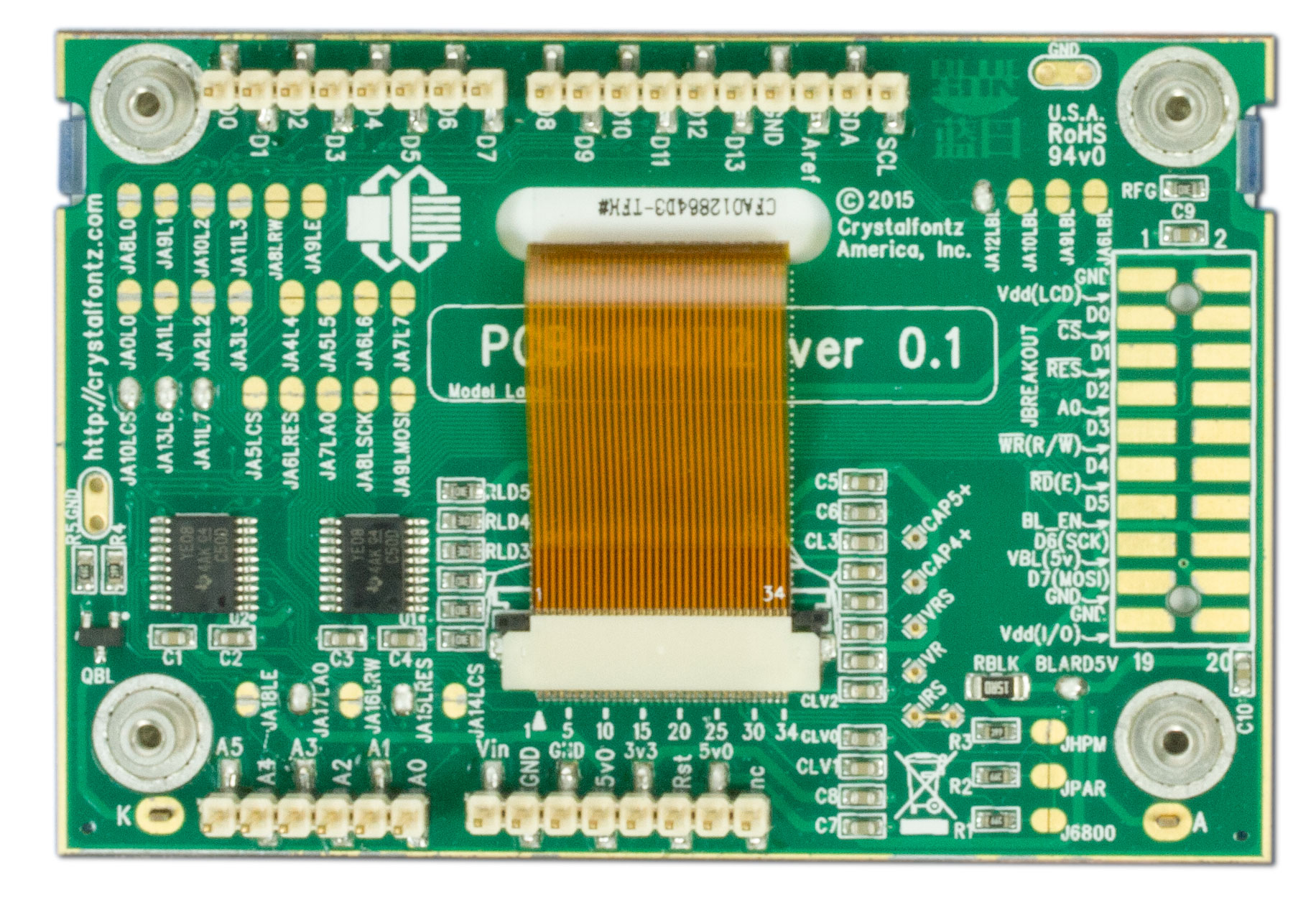

 CFAO12864D3-TMI LCD graphic display mounted on a Crystalfontz development board (CFA-10072). To power on, you will need a USB cable or a power supply compatible with the R3. The installed sketch will initialize the display and show an image.
 If you prefer a dark-on-light gray display, see the CFA212-TFH kit. This kit has the same Arduino and board.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        82
        56
        26.5

        inches
        3.23
        2.21
        1.04

        Diagonal Dimension
            2.93"

    Viewing Area        Width
        Height

        millimeters
        70.7
        38.8

        inches
        2.78
        1.53

    Active Area        Width
        Height

        millimeters
        66.52
        33.24

        inches
        2.62
        1.31

    Dot Size        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

    Dot Pitch        Width
        Height

        millimeters
        0.52
        0.52

        inches
        0.020
        0.020

        Weight
            85g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            Light
Background Color
            Blue

 nature Environmental
Environmental

    Humidity        min

        Non-condensing
        0%

 download Files and Downloads
folder_zip Software Source - Arduino / Seeeduino Sample Code

Module Overall	width	height	depth
millimeters	82	56	26.5
inches	3.23	2.21	1.04

Viewing Area	Width	Height
millimeters	70.7	38.8
inches	2.78	1.53

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Humidity	min
Non-condensing	0%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11107: End-Of-Life Notification

Products Affected:	CFAO12864D3-TFH, CFAO12864D3-TMI, CFAO12864D3-TFH-CB, CFAO12864D3-TMI-CB, CFA212-TMI, CFA212-TFH, CFA211-TFH
Date Issued:	November 9, 2021
Summary:	End-Of-Life Notification
Description:	These parts are being replaced and will no longer be available once the inventory has been depleted. The replacement part numbers will be posted on the corresponding product page.
Reason:	The ST7565P driver that is used in these displays is no longer available and so to keep the parts available, we are switching to the ST7567 driver which is similar as well as readily available.

Part Change Notice #10930: The products listed are being changed

Products Affected:	CFA212-TMI, CFA212-TFH
Date Issued:	February 2, 2018
Summary:	The products listed are being changed
Description:	The processor is being changed from an Arduino Uno R3 to a Seeeduino v4.2
Reason:	The Seeeduino is a fully functional Arduino Uno R3 clone with one additional feature. The power to the display can be switched between 3.3v and 5v.
Availability:	Immediately
Price Change:	N/A
