50x16 SPI Graphic OLED Display from Crystalfontz

Product

Home » Products » OLED Displays » Graphic » Interface » SPI

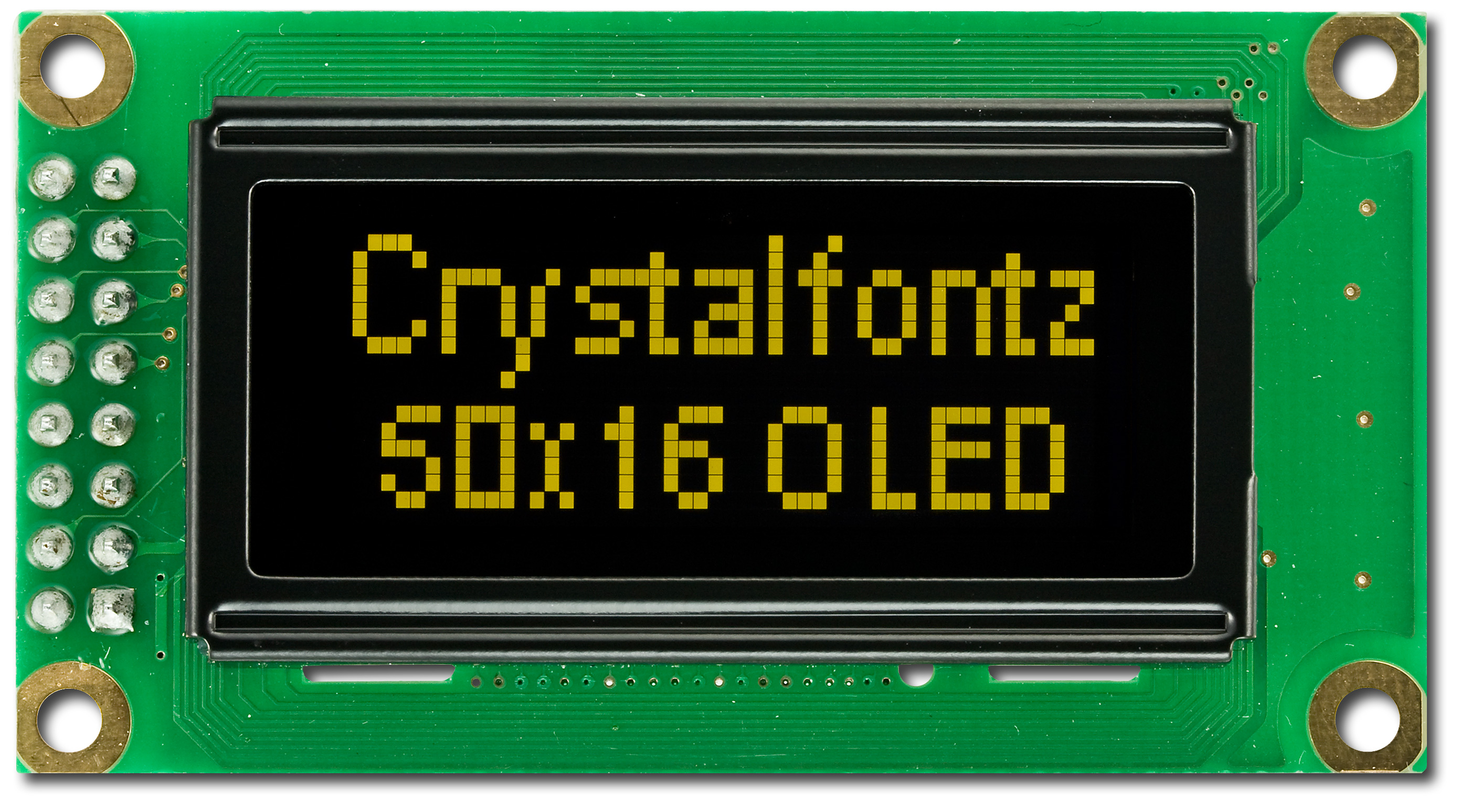

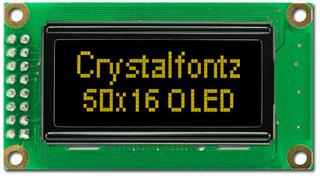

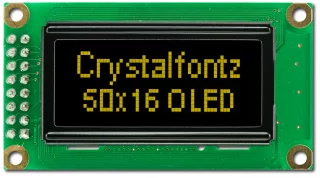

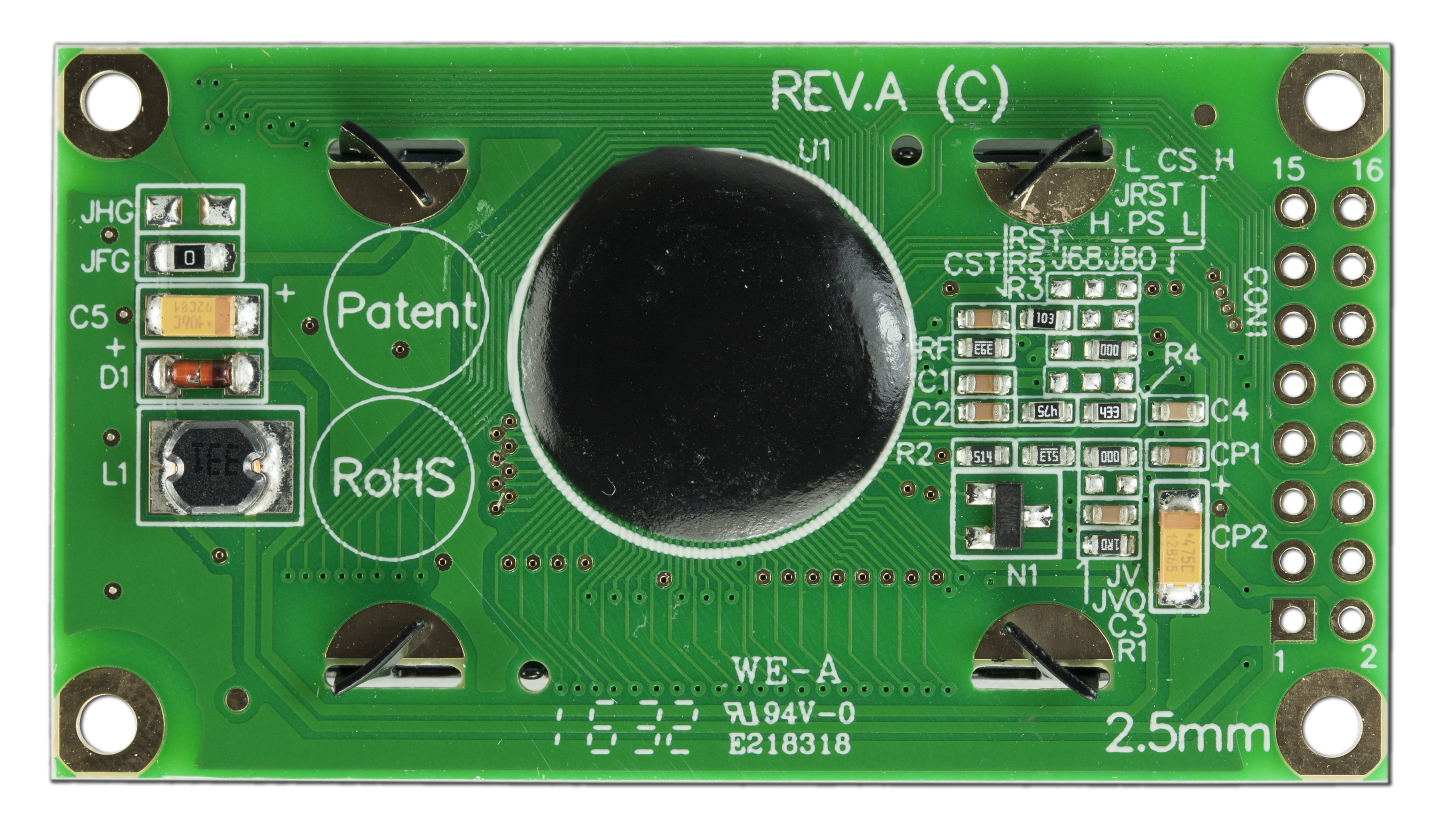

50x16 SPI Graphic OLED DisplayPart Number: CFAL5016A-PYSuper readable, high contrast, yellow on black 50x16 graphic OLED.
Resolution: 50x16 pixels
Optics: Ultra-wide viewing angle
Glass: OLED, Emissive
Controller: Winstar Display WS0010
Operating Temp: -40°C to +80°C
Compliance: REACH & RoHS Compliant

Need this display with a paralell interface? Take a look at our 50x16 paralell Graphic OLED Display.

Product VariationsInterfacesSPI4-bit Parallel, 8-bit Parallel

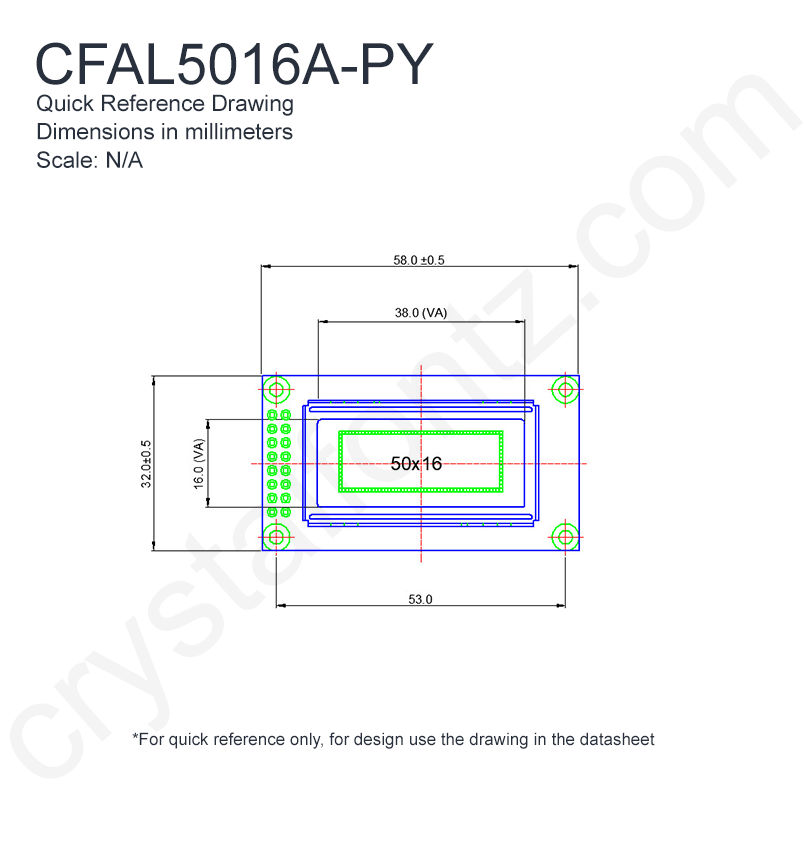

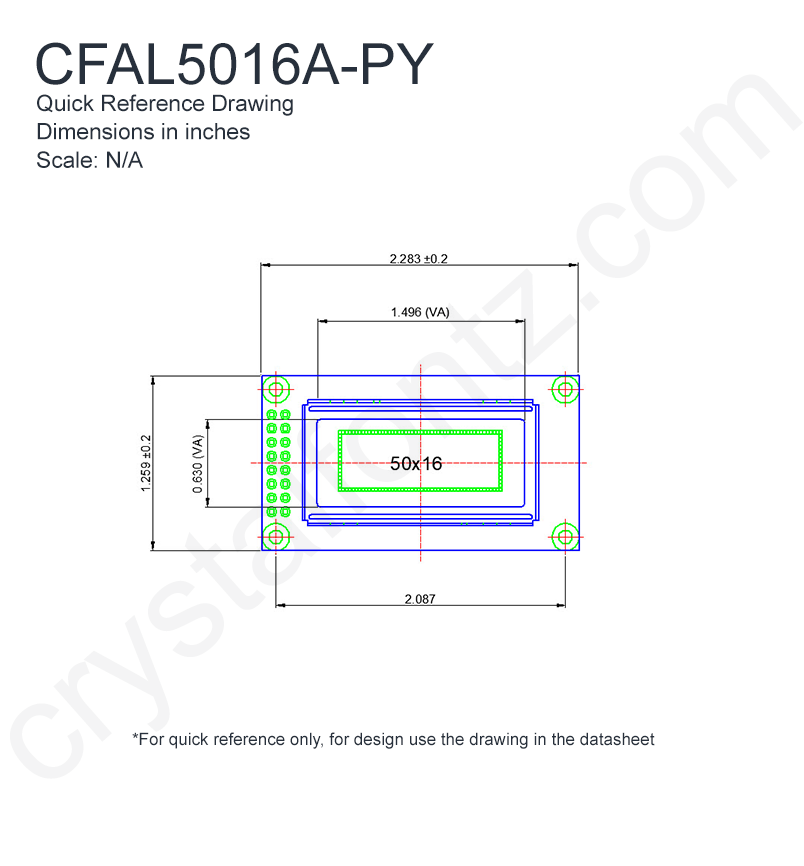

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            50 x 16


    Module Overall        width
        height
        depth


        millimeters
        58
        32
        10


        inches
        2.28
        1.26
        0.39



    PCB Outline        width
        height
        depth


        millimeters
        58
        32
        10


        inches
        2.28
        1.26
        0.39



        Diagonal Dimension
            1.26"


    Viewing Area        Width
        Height


        millimeters
        38
        16


        inches
        1.50
        0.63



    Active Area        Width
        Height


        millimeters
        29.96
        11.16


        inches
        1.18
        0.44



    Dot Size        Width
        Height


        millimeters
        0.56
        0.66


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            16g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            OLED
Polarizer
            Emissive
View Angle
            160°


        Mode
            Positive
Foreground Color
            Yellow
Background Color
            Black

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.8V
Supply Voltage for Logic Maximum
            5.3V
Supply Voltage for Logic Typical
            5V


        Supply Current Minimum
            15mA
Supply Current Maximum
            24mA
Supply Current Typical
            19mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -40°
        80°


        Fahrenheit
        -40°
        176°



    Storage Temperatures        min
        max


        Celsius
        -40°
        80°


        Fahrenheit
        -40°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Winstar Display WS0010

Interface
            SPI

picture_as_pdf Datasheets
picture_as_pdfCFAL5016A-PY Datasheet

download Files and Downloads
folder_zip Software Source - Arduino / Seeeduino Demo Sketch
link Fork this on Github
link Arduino Demo Code Download on Github
link Arduino Demo Code Respository on Github
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH










Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $15.42

            10
            $13.41

            20 *
            $12.94

            50 *
            $12.45

            100 *
            $11.73

            200 *
            $11.53

            300 *
            $10.91

            500 *
            $10.83

            1000 *
            $9.72

14 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Interfaces	SPI 4-bit Parallel, 8-bit Parallel

Module Overall	width	height	depth
millimeters	58	32	10
inches	2.28	1.26	0.39

PCB Outline	width	height	depth
millimeters	58	32	10
inches	2.28	1.26	0.39

Viewing Area	Width	Height
millimeters	38	16
inches	1.50	0.63

Active Area	Width	Height
millimeters	29.96	11.16
inches	1.18	0.44

Dot Size	Width	Height
millimeters	0.56	0.66
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Storage Temperatures	min	max
Celsius	-40°	80°
Fahrenheit	-40°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$15.42
10	$13.41
20 *	$12.94
50 *	$12.45
100 *	$11.73
200 *	$11.53
300 *	$10.91
500 *	$10.83
1000 *	$9.72

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11103: Reset pin modification

Products Affected:	CFAL1602C-YT, CFAL1602C-PW, CFAL1602C-PY, CFAL1602C-PYT, CFAL5016A-PY
Date Issued:	October 14, 2021
Summary:	Reset pin modification
Description:	RST and CST, the components in the RC filter for the reset pin, are being modified. RST will be 33kOhms and CST will be 1uF.
Reason:	Some reset circuits have shown not to be strong enough to drive the reset pin within the specified timing. If the reset circuit is not strong enough, the controller will not properly reset which causes abnormal behavior.

Part Change Notice #11077: Small Layout Change

Products Affected:	CFAL2004A-Y, CFAL2002A-Y, CFAL1602L0-Y, CFAL1202A-Y, CFAL5016A-Y, CFAL0802A-Y, CFAL1602C-W, CFAL1602C-Y, CFAL1602C-YT, CFAL1602C-PW, CFAL1602C-PY, CFAL5016A-PY
Date Issued:	February 10, 2021
Summary:	Small Layout Change
Description:	Changing manufacturing locations of the wafers used in the controller chip. The layout has to be slightly modified to accommodate the practices at the new facility. The functionality will remain the same.
Reason:	Changing manufacturing locations due to the wafer process no longer being supported by the original facility.
