Small 16x1 Character Sunlight Readable LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Character

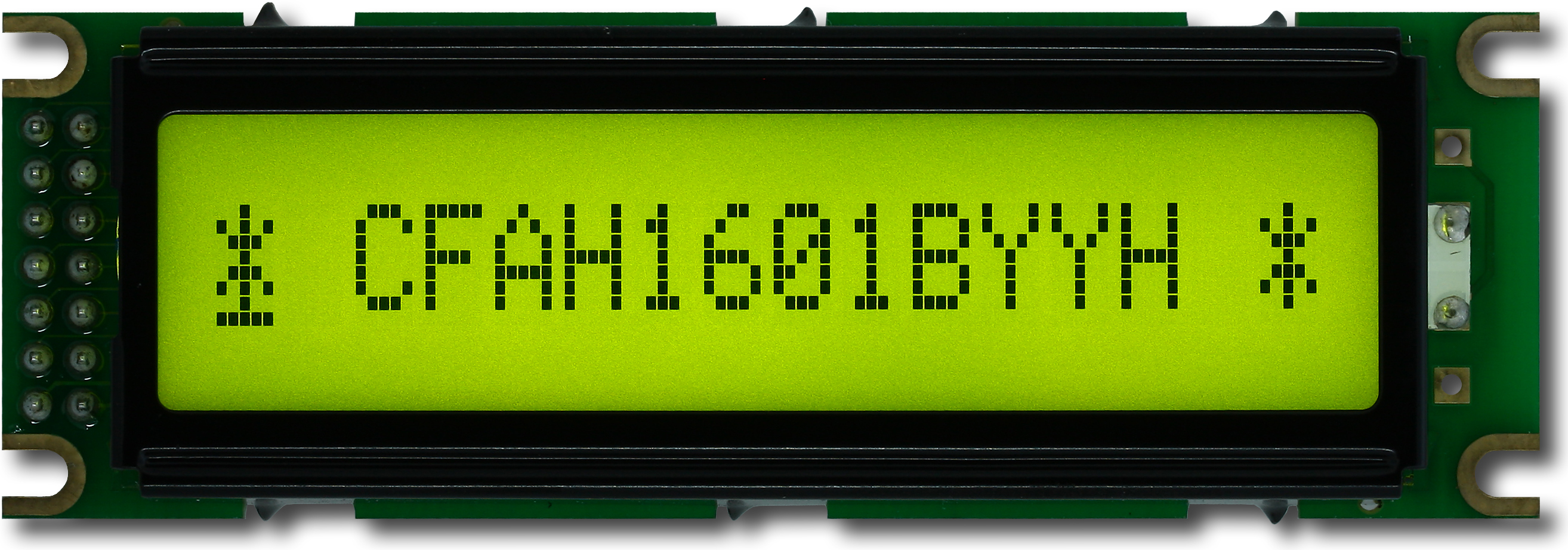

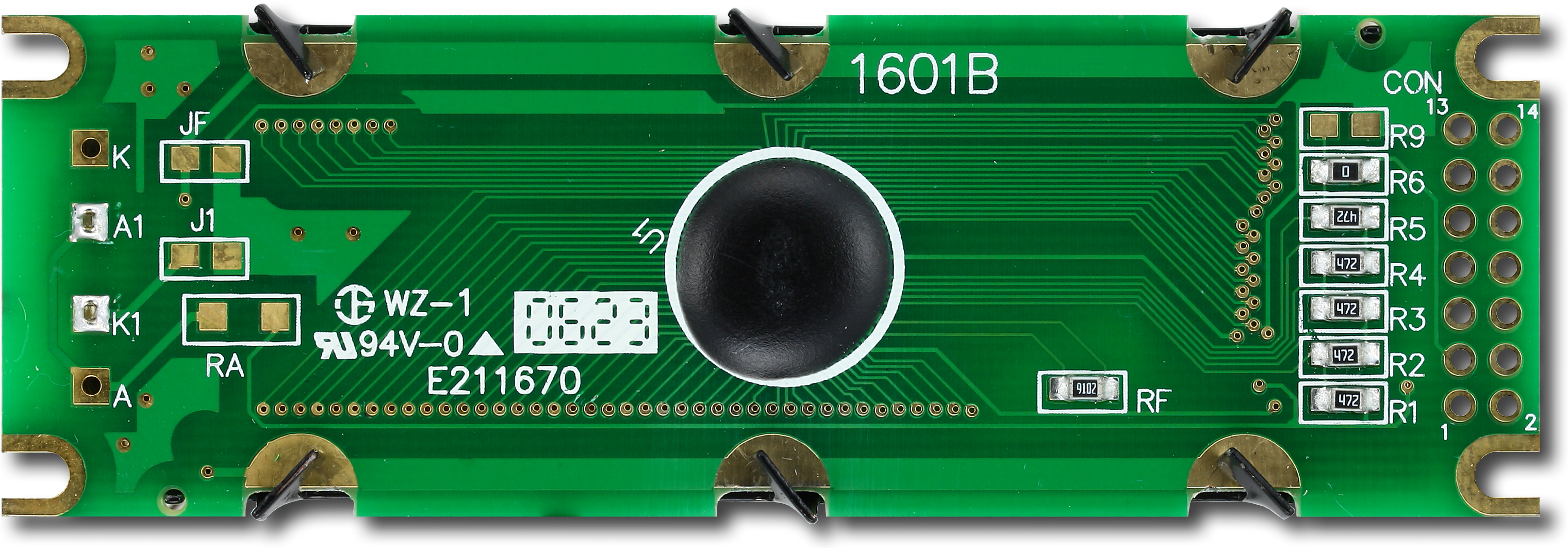

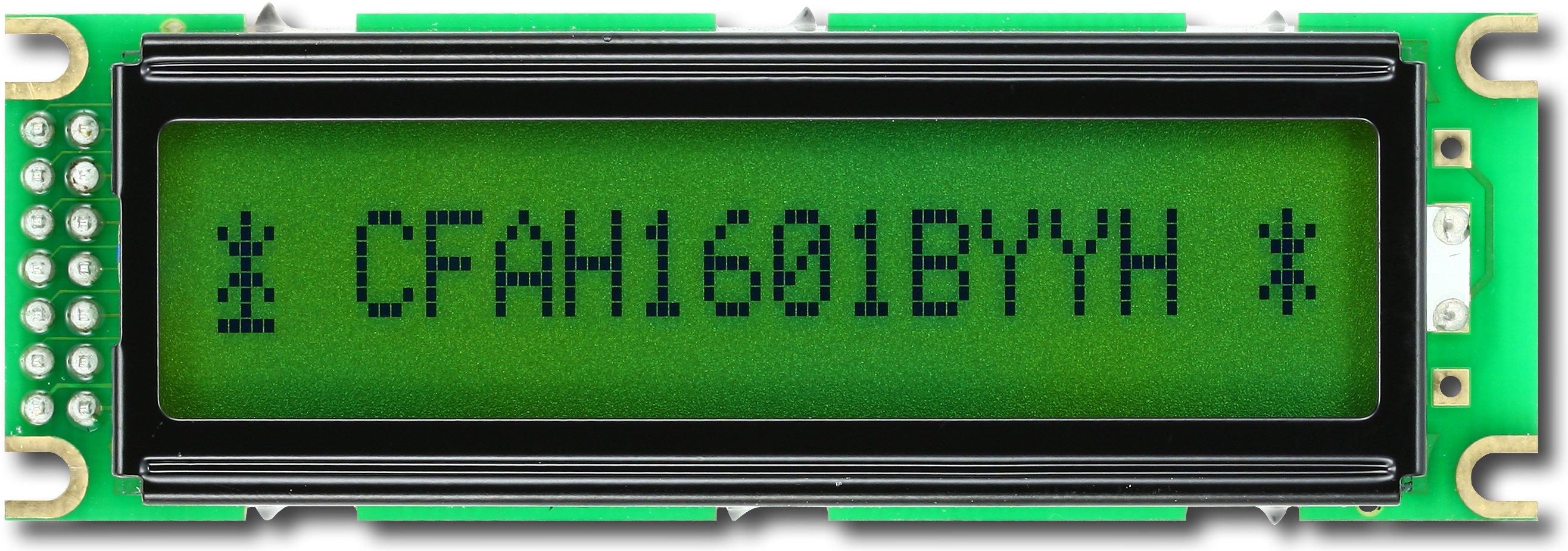

Small 16x1 Character Sunlight Readable LCDPart Number: CFAH1601B-YYH-ET16x1 sunlight readable character LCD with an LED backlight.
Characters / Columns: 16x1
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on Light Gray
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 1


    Module Overall        width
        height
        depth


        millimeters
        85
        28
        13.2


        inches
        3.35
        1.10
        0.52



    PCB Outline        width
        height
        depth


        millimeters
        85
        28
        13.2


        inches
        3.35
        1.10
        0.52



        Diagonal Dimension
            2.36"


    Viewing Area        Width
        Height


        millimeters
        66
        16


        inches
        2.60
        0.63



    Active Area        Width
        Height


        millimeters
        59.62
        6.56


        inches
        2.35
        0.26



    Character Size        Width
        Height


        millimeters
        3.07
        6.56


        inches
        0.121
        0.258



    Character Pitch        Width
        Height


        millimeters
        3.77
        6.56


        inches
        0.148
        0.258



    Dot Size        Width
        Height


        millimeters
        0.55
        0.75


        inches
        0.022
        0.030



    Dot Pitch        Width
        Height


        millimeters
        0.63
        0.83


        inches
        0.025
        0.033



        Weight
            31g
Pin Count
            14

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1601BYYHET Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH1601B 2D CAD
picture_as_pdf 1 to 1 Template
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $7.64

            10
            $6.64

            20
            $6.41

            50
            $6.16

            100 *
            $6.06

            200 *
            $5.97

            500 *
            $5.61

            1000 *
            $5.07

94 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight Dark on Light Gray White LED Backlight

Module Overall	width	height	depth
millimeters	85	28	13.2
inches	3.35	1.10	0.52

PCB Outline	width	height	depth
millimeters	85	28	13.2
inches	3.35	1.10	0.52

Viewing Area	Width	Height
millimeters	66	16
inches	2.60	0.63

Active Area	Width	Height
millimeters	59.62	6.56
inches	2.35	0.26

Character Size	Width	Height
millimeters	3.07	6.56
inches	0.121	0.258

Character Pitch	Width	Height
millimeters	3.77	6.56
inches	0.148	0.258

Dot Size	Width	Height
millimeters	0.55	0.75
inches	0.022	0.030

Dot Pitch	Width	Height
millimeters	0.63	0.83
inches	0.025	0.033

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$7.64
10	$6.64
20	$6.41
50	$6.16
100 *	$6.06
200 *	$5.97
500 *	$5.61
1000 *	$5.07

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAH1601B-YYH-ET

Small 16x1 Character Sunlight Readable LCD

Part Number: CFAH1601B-YYH-ET

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Yellow-Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel

Weight	31g
Pin Count	14
