160x128 Blue Standard Graphic LCD from Crystalfontz

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

                        This display is still available via special order. Contact sales@crystalfontz.com to place your order.

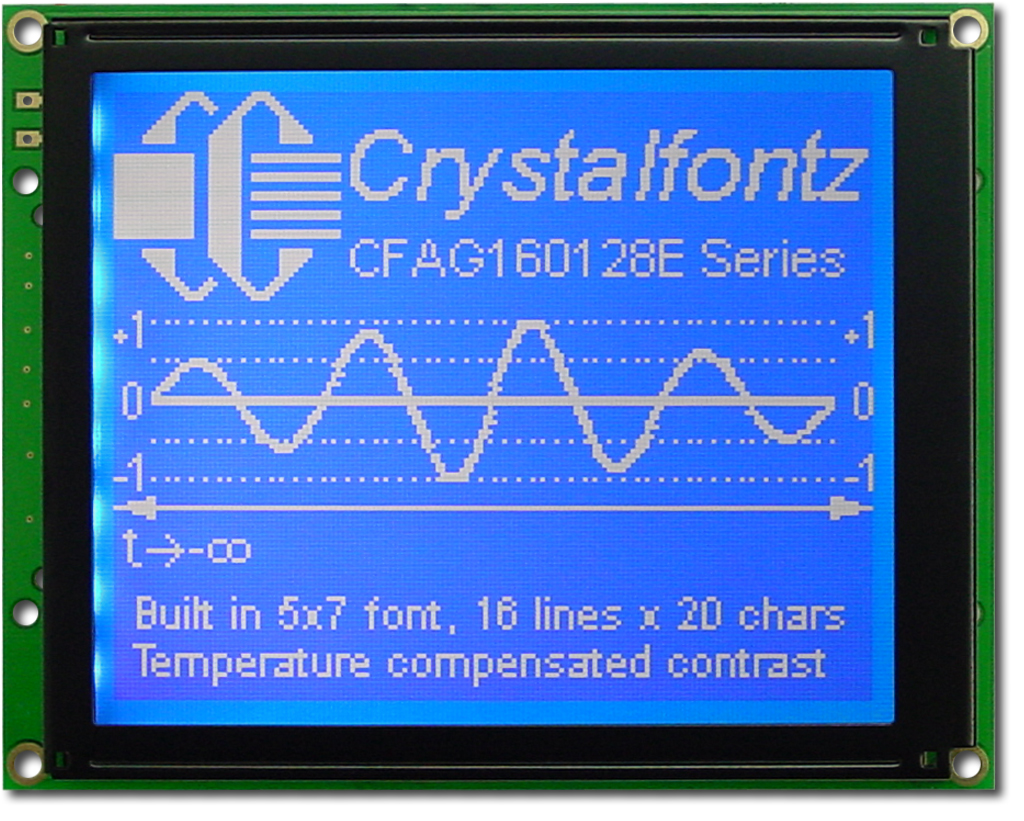

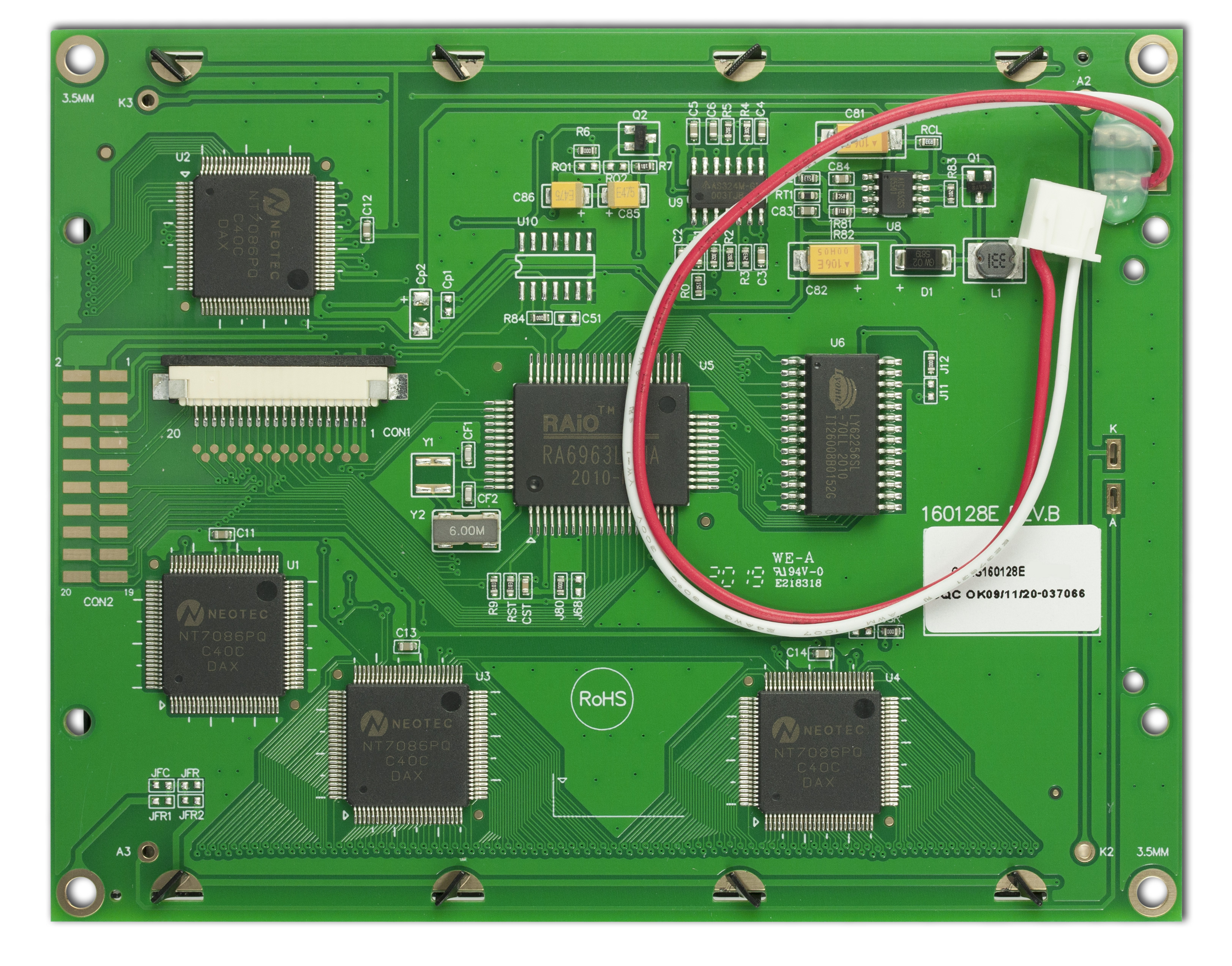

160x128 Blue Standard Graphic LCDPart Number: CFAG160128E-TMI-TZBlue on white 160x128 graphic LCD with temperature compensation and negative voltage generator
Resolution: 160x128 pixels
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN negative, Transmissive
Controller: RAiO Technology RA6963 (Toshiba T6963C Compatible)
Character Generator: 128-word ROM for ASCII, Japanese or numeric display in text mode
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots

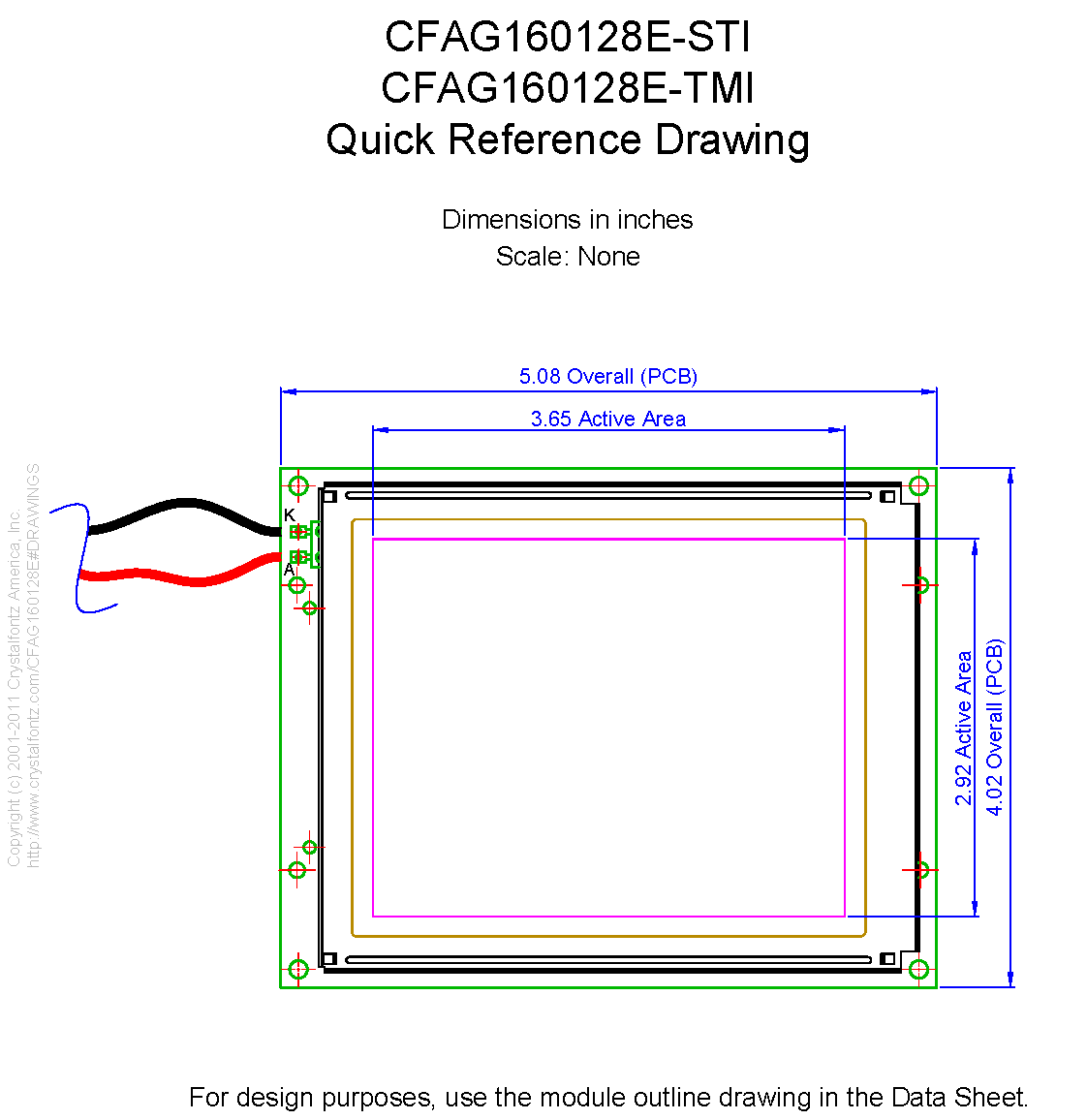

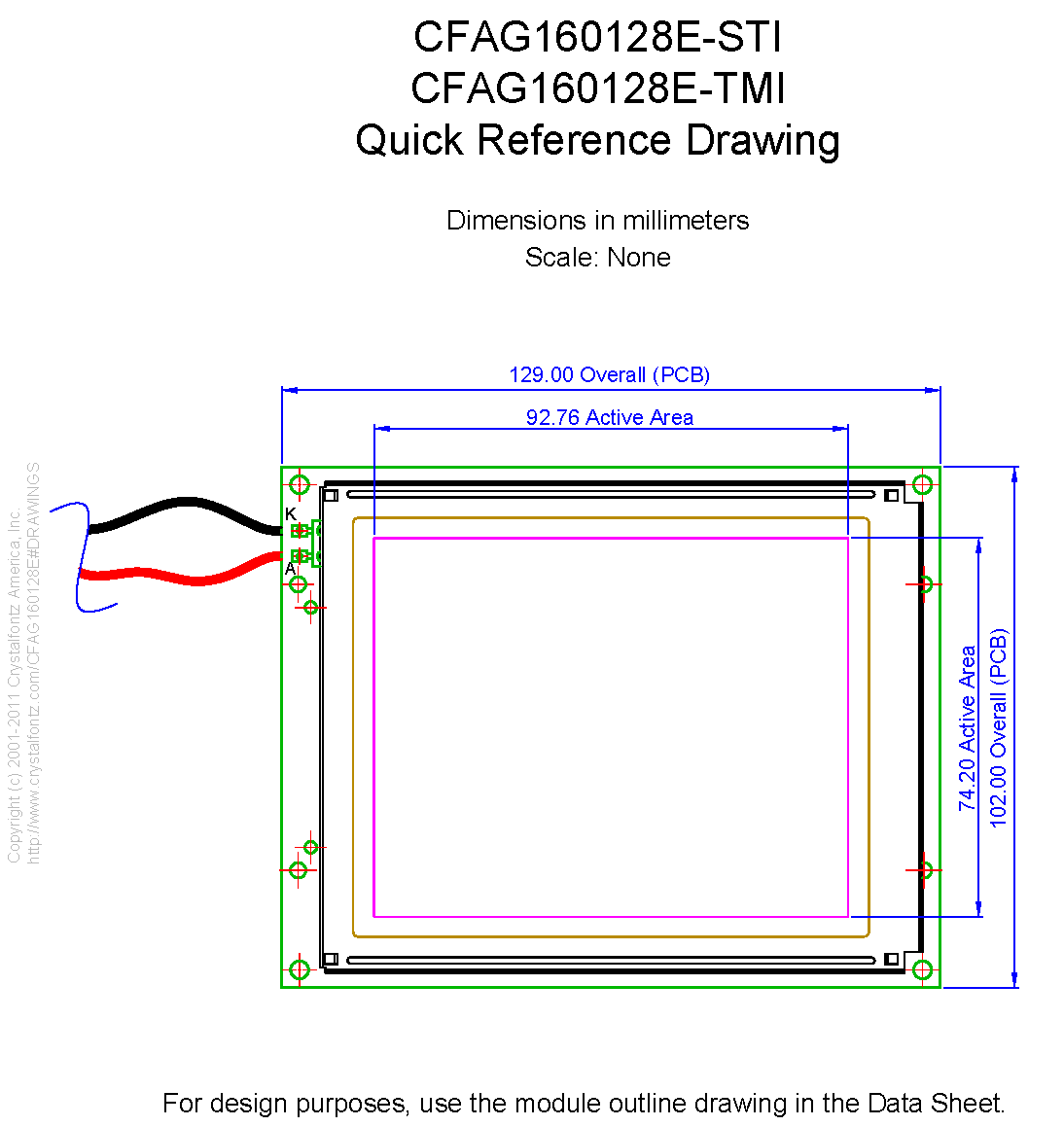

            160 x 128


    Module Overall        width
        height
        depth


        millimeters
        129
        102
        16.5


        inches
        5.08
        4.02
        0.65



    PCB Outline        width
        height
        depth


        millimeters
        129
        102
        16.5


        inches
        5.08
        4.02
        0.65



        Diagonal Dimension
            4.84"


    Viewing Area        Width
        Height


        millimeters
        101
        82


        inches
        3.98
        3.23



    Active Area        Width
        Height


        millimeters
        95.96
        76.76


        inches
        3.78
        3.02



    Dot Size        Width
        Height


        millimeters
        0.56
        0.56


        inches
        0.022
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.6


        inches
        0.024
        0.024



        Weight
            191g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG160128ETMITZ Datasheet

download Files and Downloads
folder_zip Software Source - Example code - ATMEGA2561 8 bit parallel interface
folder_zip CAD Export - CFAG160128E-STI-TMI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG160128E-STI-TMI 1 to 1.pdf
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH











Ordering Information* This is a special order part.
Contact us for pricing, lead times, and order info.



Module Overall	width	height	depth
millimeters	129	102	16.5
inches	5.08	4.02	0.65

PCB Outline	width	height	depth
millimeters	129	102	16.5
inches	5.08	4.02	0.65

Viewing Area	Width	Height
millimeters	101	82
inches	3.98	3.23

Active Area	Width	Height
millimeters	95.96	76.76
inches	3.78	3.02

Dot Size	Width	Height
millimeters	0.56	0.56
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11075: Now available by special order only.

Product Affected:	CFAG160128E-TMI-TZ
Date Issued:	February 4, 2021
Summary:	Now available by special order only.
Description:	The CFAG160128E-TMI-TZ is no longer being offered in low quantities. It will now be built to order and an MOQ will be required.
Reason:	The display is not as popular as other displays and so we are no longer holding inventory.
Availability:	The display is still available. Contact sales for more information.
