CFAH1602B Standard, Wide Temp and Color LCD
Parallel Character LCD 16x2, RoHS Compliant, No Backlight, STN Positive, Yellow/Green, Reflective -20°C - +70°C 6:00
This module is replacing the CFAH1602BNYGJP.
CFAH1602B-NYG-JT: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00
This module is replacing the CFAH1602BYYHJP.
CFAH1602B-YYH-JT: Front, backlight on
(click image to see detail view)
CFAH1602B-YYH-JT: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Edge Style Backlight
This module is replacing the CFAH1602BYYHJPE.
CFAH1602B-YYH-JTE: Front, backlight on
(click image to see detail view)
CFAH1602B-YYH-JTE: Front view
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
This module is replacing the CFAH1602BTMIJP.
CFAH1602B-TMI-JT: Front, backlight on
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Negative, Blue, Transmissive -20°C - +70°C 6:00
This module is replacing the CFAH1602BYMIJP.
CFAH1602B-YMI-JT: Front, backlight on
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, FSTN Negative, Transmissive -20°C - +70°C 6:00
This module is replacing the CFAH1602BYTIJP.
CFAH1602B-YTI-JT: Front, backlight on
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, No Backlight, STN Positive, Gray, Reflective -20°C - +70°C 6:00, Negative Voltage Generator
This module is replacing the CFAH1602BNGGJPV.
CFAH1602B-NGG-JTV: Front, backlight on
(click image to see detail view)
Parallel Character LCD 16x2, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C - +70°C 6:00, Negative Voltage Generator
This module is replacing the CFAH1602BYYHJPV.
CFAH1602B-YYH-JTV: Front, backlight on
(click image to see detail view)
Back view
(click image to see detail view)
Features:
- Available in several variations of backlight and polarizer (minimum order may be required)
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant
Dimensions:
- Weight: 24g
- Overall Width: 80mm
- Overall Height: 36mm
- Overall Depth: 9.4mm
Documents:

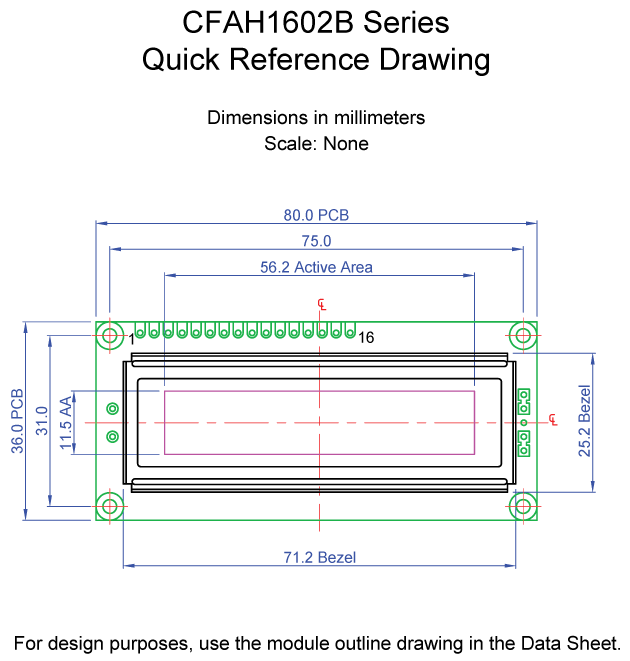

1 to 1 Template (49KB)Metric Scale Drawing (23KB)

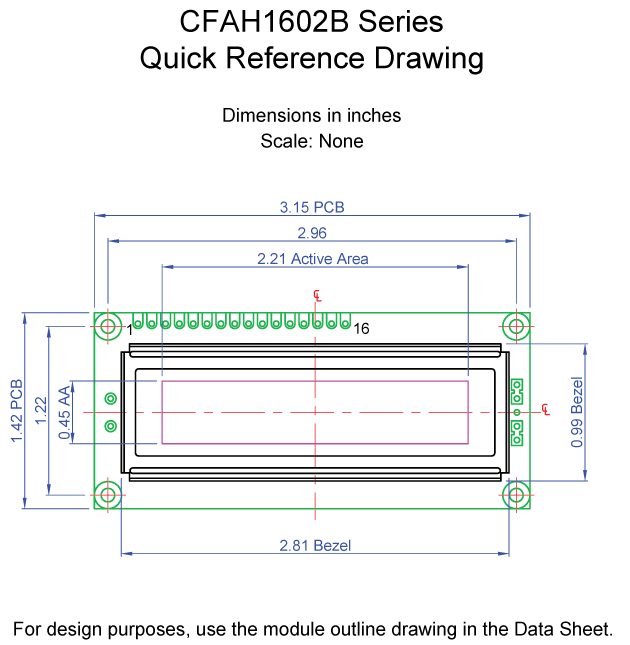

Inches Scale Drawing (23KB)
Datasheets
