[EOL] 128x128 Yellow-Green Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

                        This product is no longer available. We are creating a drop-in replacement. However, it will be a different color. The part number is CFAG128128I1-TMI-VZ. Please contact support for additional replacement options.

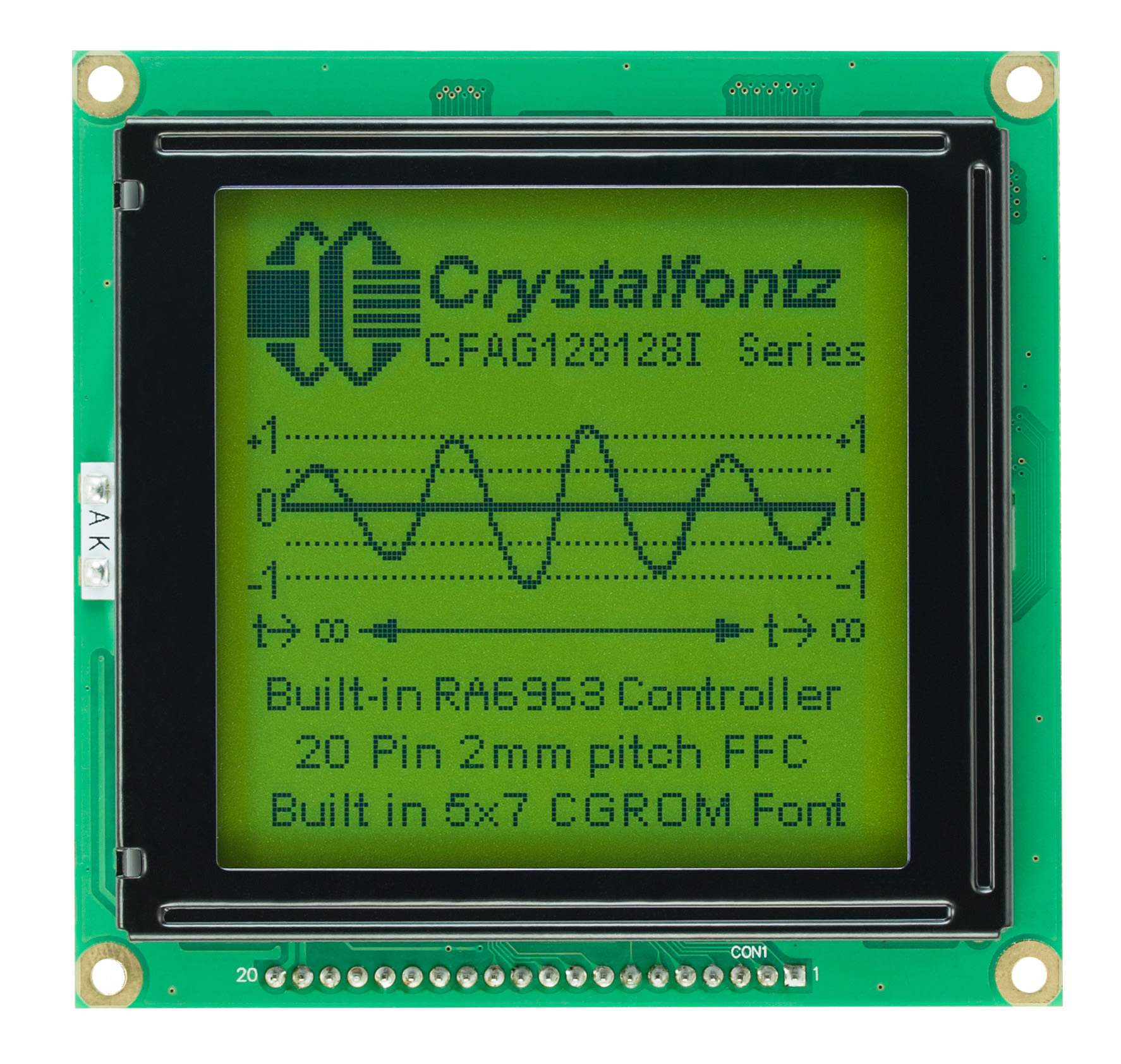

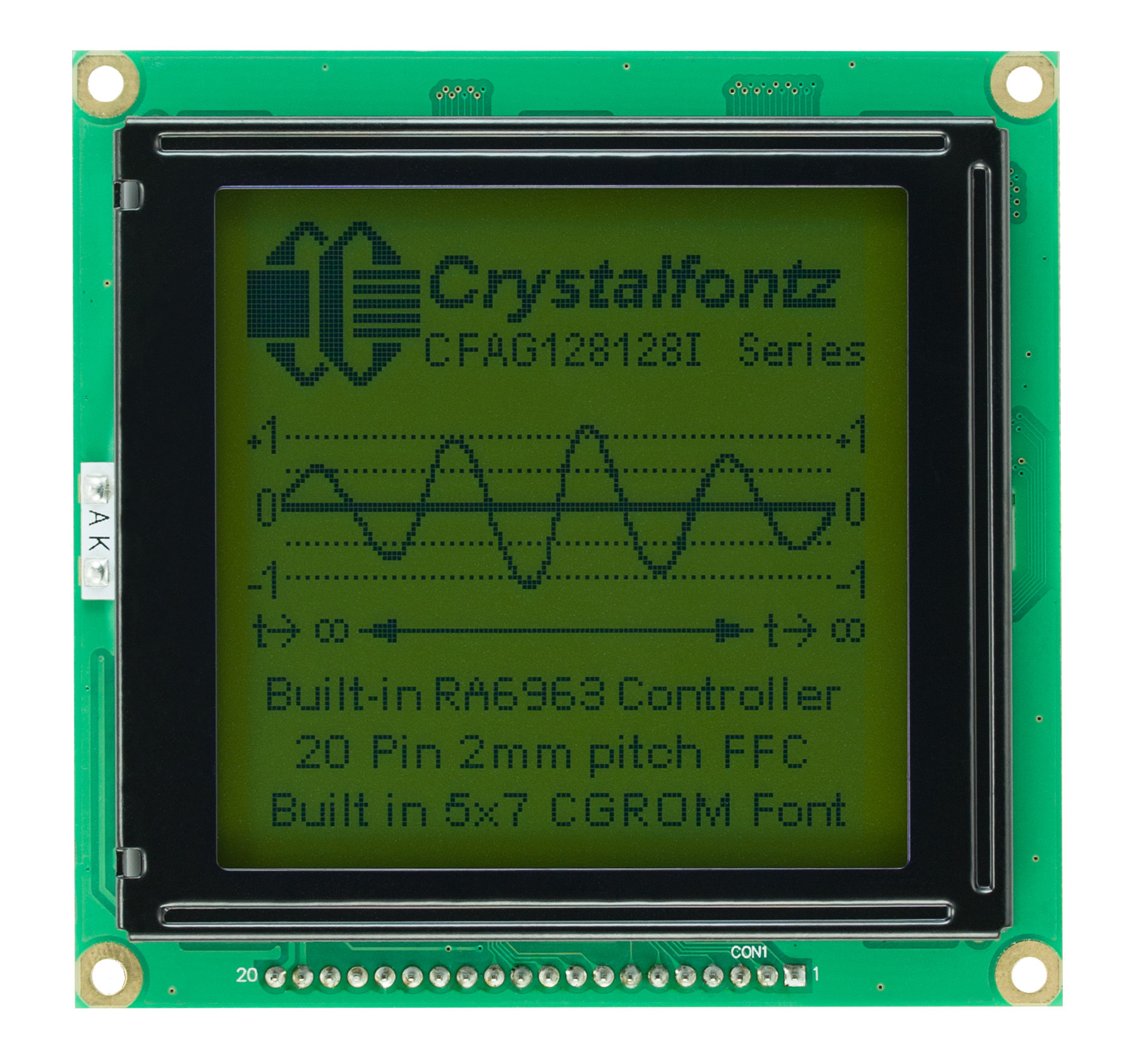

[EOL] 128x128 Yellow-Green Graphic LCDPart Number: CFAG128128I-YYH-VZ128x128 Graphic LCD, RoHS Compliant, RA6963 controller, Yellow-green LED Backlight, Positive STN yellow-green, Transflective -20°C to +70°C 6:00 viewing direction, Negative Voltage Generator

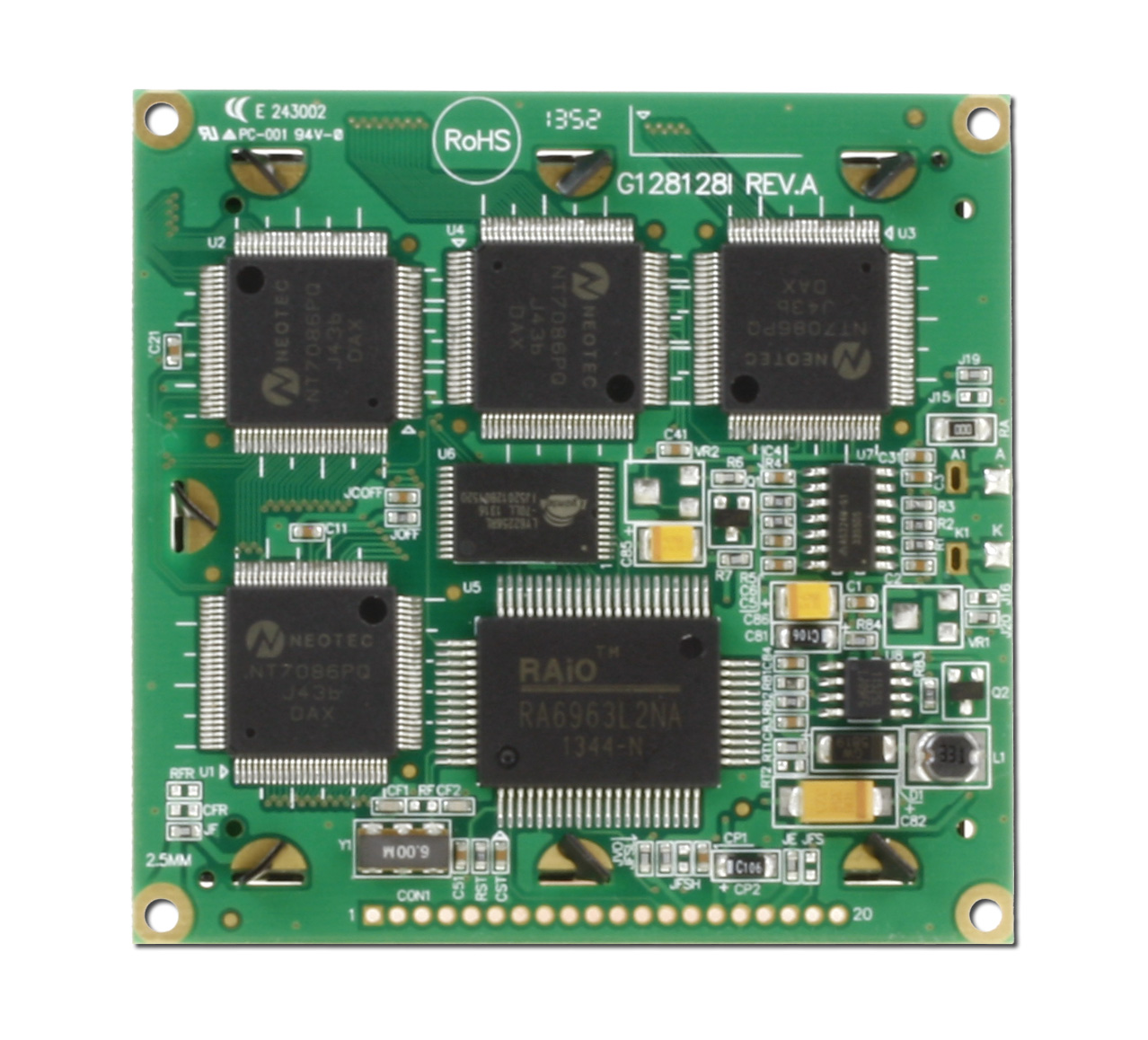

Built-in RAiO RA6963 controller and Neotec NT7086 segment driver
128x128 graphic mode,  Character Generator ROM (T6963C code 0101).
Wide temperature range: -20°C to 70°C (-4°F to 158°F)
RoHS Compliant
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 128

    Module Overall        width
        height
        depth

        millimeters
        72.5
        69.9
        10.2

        inches
        2.85
        2.75
        0.40

    PCB Outline        width
        height
        depth

        millimeters
        72.5
        69.9
        1.2

        inches
        2.85
        2.75
        0.05

        Diagonal Dimension
            2.49"

    Viewing Area        Width
        Height

        millimeters
        50
        49

        inches
        1.97
        1.93

    Active Area        Width
        Height

        millimeters
        44.77
        44.77

        inches
        1.76
        1.76

    Dot Size        Width
        Height

        millimeters
        0.32
        0.32

        inches
        0.013
        0.013

    Dot Pitch        Width
        Height

        millimeters
        0.35
        0.35

        inches
        0.014
        0.014

        Weight
            66.8g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V

        Supply Voltage for Driving Panel Typical
            16.3V
Module Connector Pitch
            2mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.9V
Forward Voltage Maximum
            4.3V
Forward Voltage Typical
            4.1V

        Forward Current Minimum
            252mA
Forward Current Maximum
            336mA
Forward Current Typical
            280mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG128128IYYHVZ Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAG128128I Datasheet

Module Overall	width	height	depth
millimeters	72.5	69.9	10.2
inches	2.85	2.75	0.40

PCB Outline	width	height	depth
millimeters	72.5	69.9	1.2
inches	2.85	2.75	0.05

Viewing Area	Width	Height
millimeters	50	49
inches	1.97	1.93

Active Area	Width	Height
millimeters	44.77	44.77
inches	1.76	1.76

Dot Size	Width	Height
millimeters	0.32	0.32
inches	0.013	0.013

Dot Pitch	Width	Height
millimeters	0.35	0.35
inches	0.014	0.014

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Note
Notices

Product Note:

Physically compatible with the no longer available CFAG128128B series of graphic LCD modules, which used the no longer manufactured Sanyo LC7981 LCD controller.

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11096: End-Of-Life Notification

Products Affected:	CFAG160128B-YYH-TZ, CFAG160128B-TMI-TZ, CFAG128128A-TMI-TZ, CFAG128128A-YYH-TZ, CFAG12864D-YYH-TZ, CFAG12864G-TMI-TY, CFAG12864G-YYH-TY, CFAG128128I-TFH-VZ, CFAG128128I-TMI-VZ, CFAG128128I-YYH-VZ
Date Issued:	July 30, 2021
Summary:	End-Of-Life Notification
Description:	The current display controller is going EOL and being replaced by RA6963-N1. The replacement parts will be posted on the product web page of the original part.
Reason:	The controller RA6963-N has gone EOL.

Product Update #10605: (New Product) CFAG128128I-YYH-VZ

New Product:	CFAG128128I-YYH-VZ
Date Issued:	July 1, 2014
Summary:	(New Product) CFAG128128I-YYH-VZ
Description:	Standard Graphic Modules: 128x128 Graphic, Yellow-green LED Backlight, Positive STN yellow-green, Transflective -20°C to +70°C 6:00, Neg Volt
