                This display is no longer available. We recommend the 320x480 3.5" Touch Screen Color TFT.

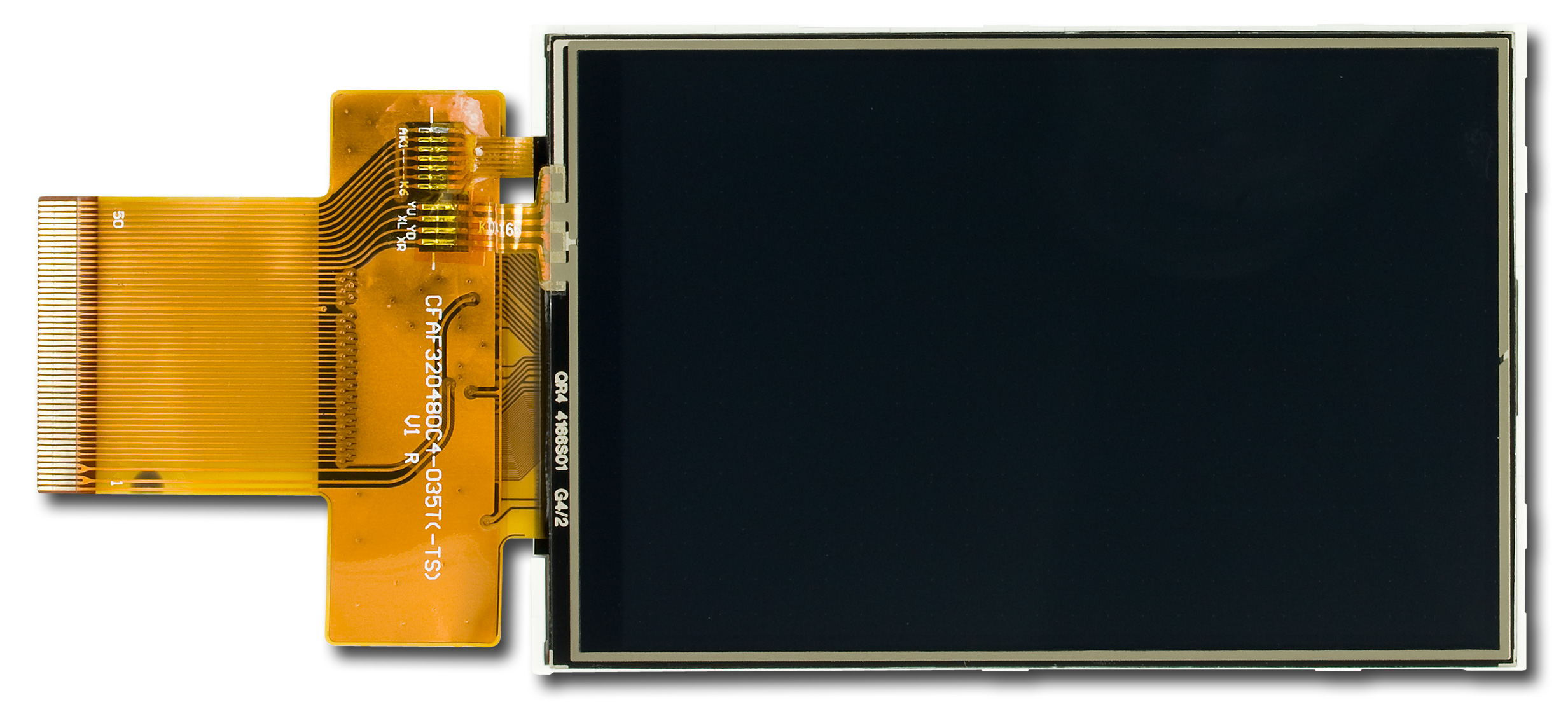

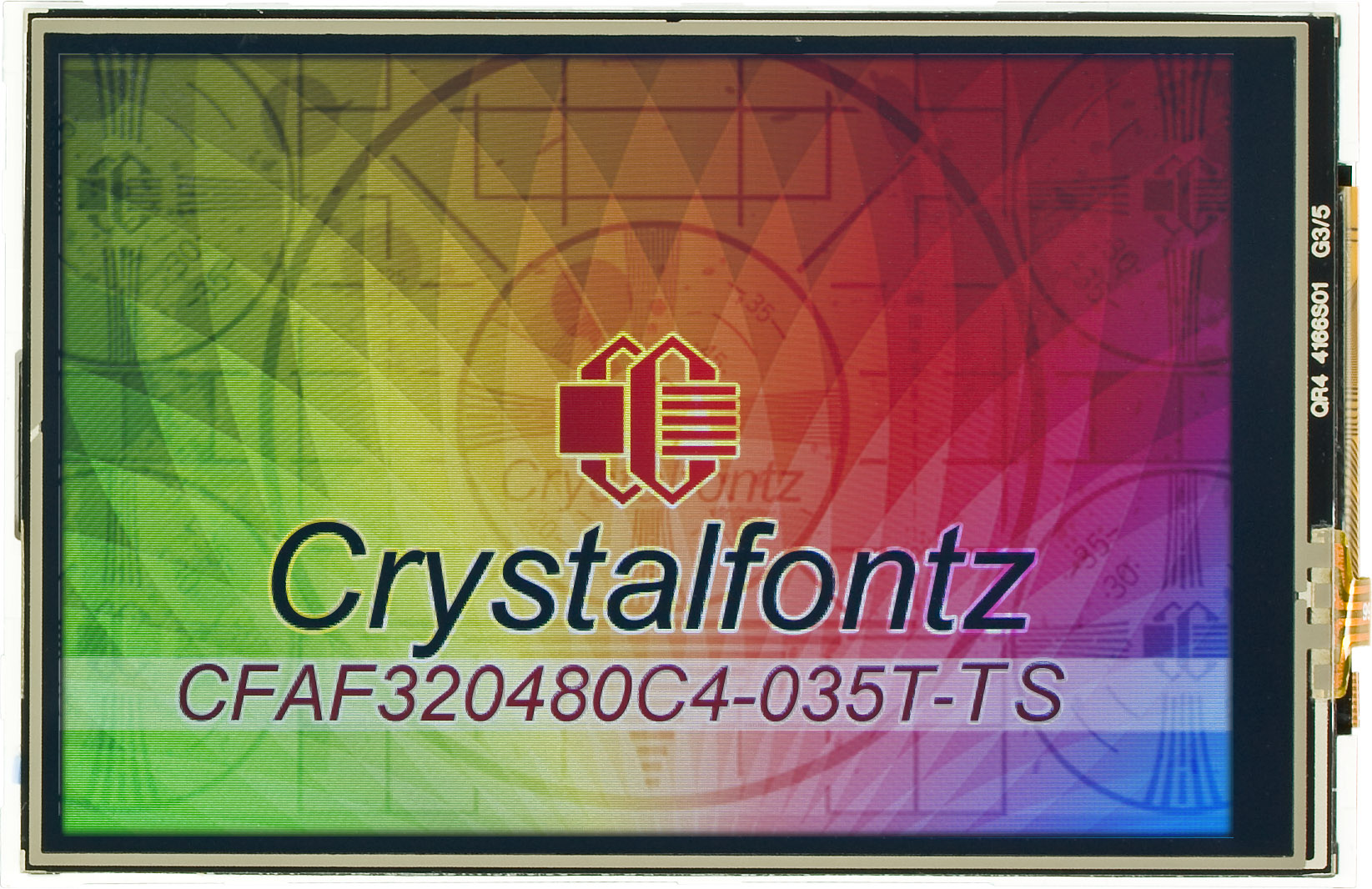

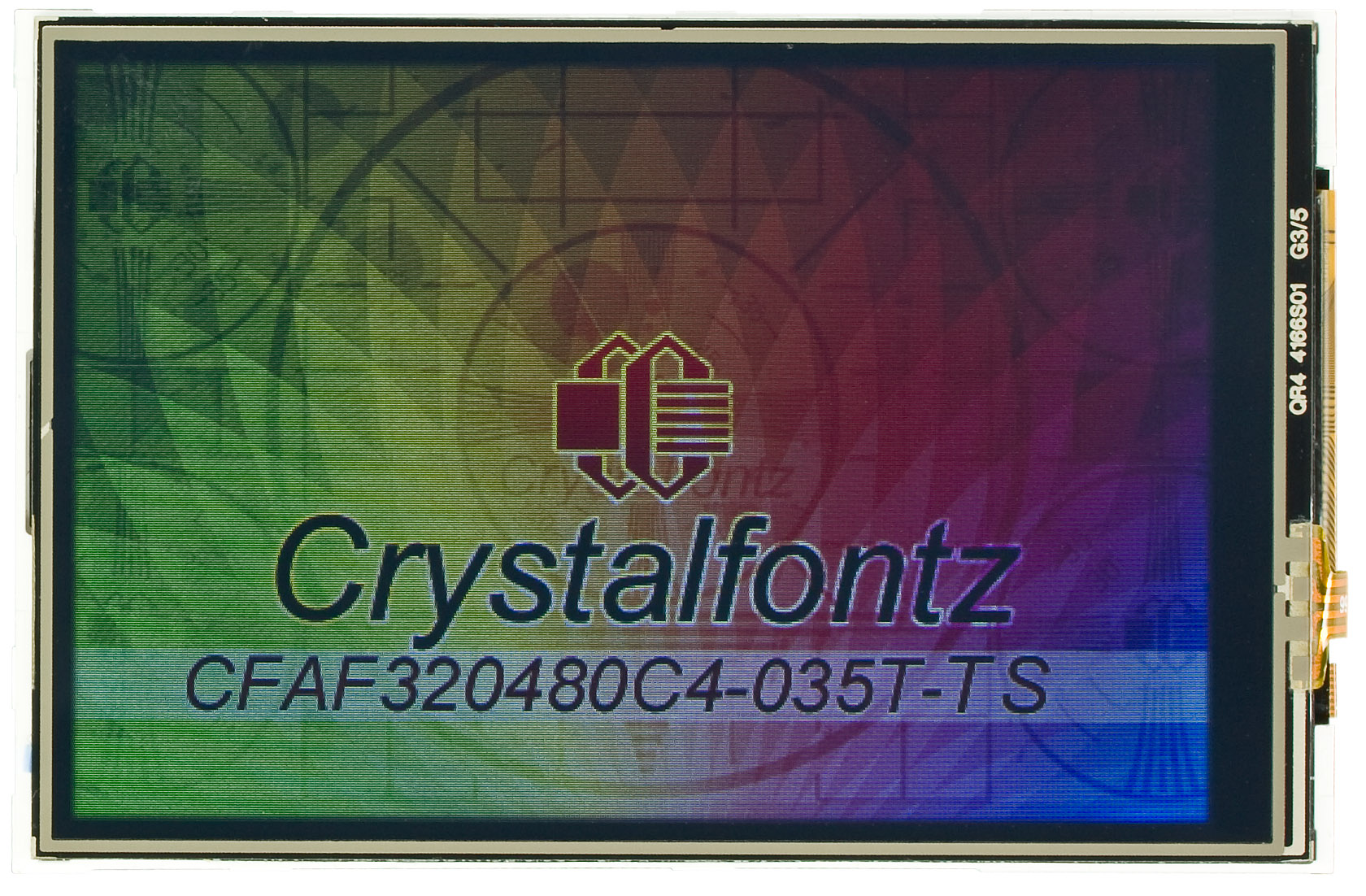

320x480 Parallel Color TFT with Touch ScreenPart Number: CFAF320480C4-035T-TSThe CFAF320480C4-035T-TS is a 3.5" diagonal 320x480 TFT with full color graphics and a 4-wire analog touch screen.
Features:
Requires only a single source 3v for both power and logic.
The display has built-in Himax HX8357-B or compatible LCD display controller.
The 50-pin FPC mates with standard 0.5mm ZIF sockets such as HFJ150CT-ND and HFK150CT-ND, both available from Digi-Key.

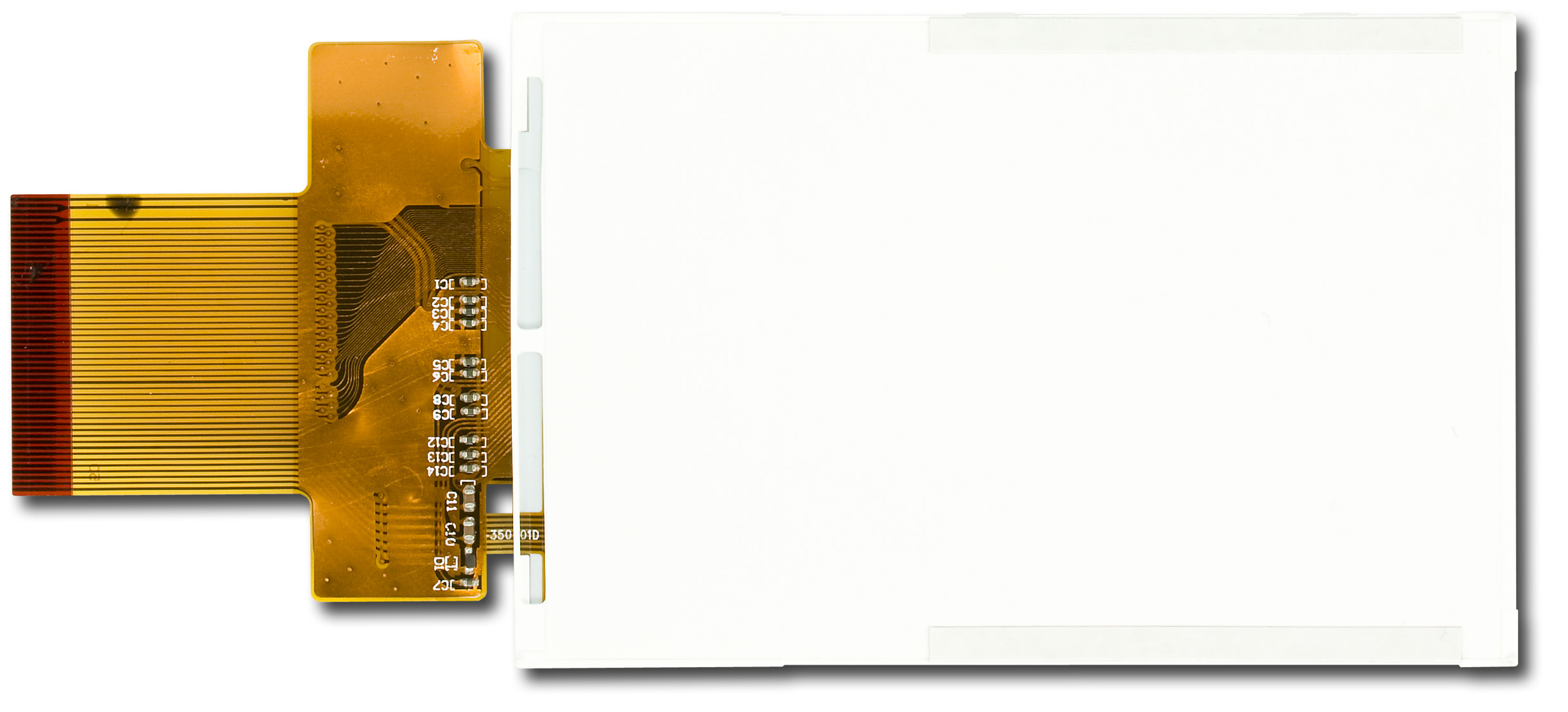

The white LED backlight has anode (A,+) and cathode (K,-) pins brought out on the FPC.
Operating temperature range from -20°C to +70°C.
Need a non-touch screen version? The CFAF320480C4-035T offers the same display module without touch screen. It is slightly thinner and less expensive.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 480

    Module Overall        width
        height
        depth

        millimeters
        55.55
        84.96
        3.75

        inches
        2.19
        3.35
        0.15

*width / height does not include Foldable Tab

        Diagonal Dimension
            3.47"

    Viewing Area        Width
        Height

        millimeters
        50.96
        75.44

        inches
        2.01
        2.97

    Active Area        Width
        Height

        millimeters
        48.96
        73.44

        inches
        1.93
        2.89

    Dot Pitch        Width
        Height

        millimeters
        0.051
        0.051

        inches
        0.0020
        0.0020

        Weight
            28g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            1.7V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            1.8V

        Supply Current Maximum
            15mA
Supply Current Typical
            10mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Current Typical
            90mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        max

        Non-condensing
        90%

 cable Electronics
Electronics

        Controller Documents
            Himax HX8357-B
HX8357-B

320RGB x 480 dot, 262K color,

with internal GRAM,

TFT Mobile Single Chip Driver
Interface
            16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

 picture_as_pdf Datasheets
Previous Versions of Datasheetspicture_as_pdfCFAF320480C4-035T Family Data Sheet Release Date 2013-05-06.pdf

picture_as_pdfCFAF320480C4-035T Family Data Sheet Release Date 2013-05-03.pdf

 download Files and Downloads
 Software Source - CFA10055/CFAF320480C4 or CFAF320480C5 memory mapped I/O example
folder_zip CAD Export - CFAF320480C4-035T-TS 2D CAD

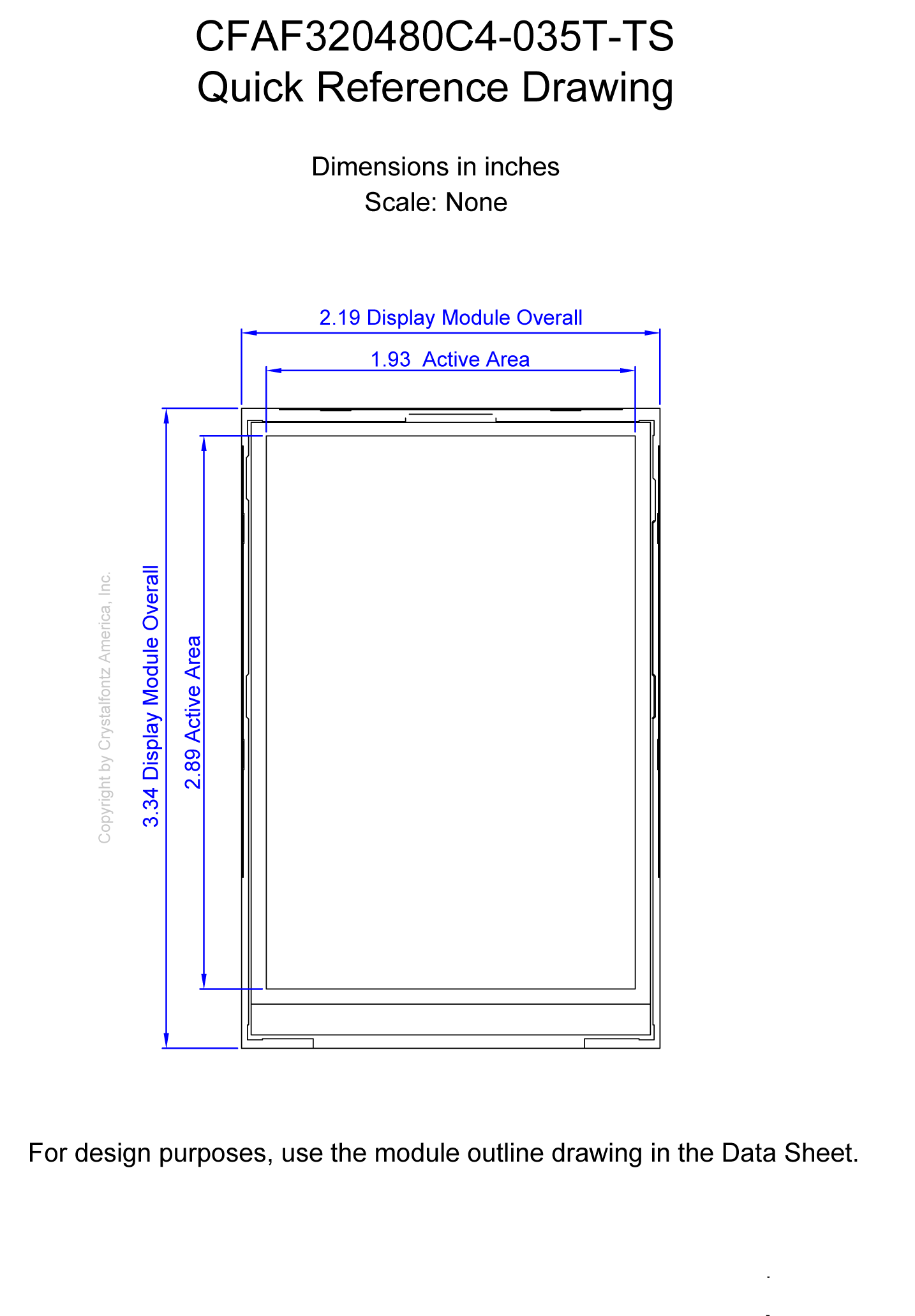

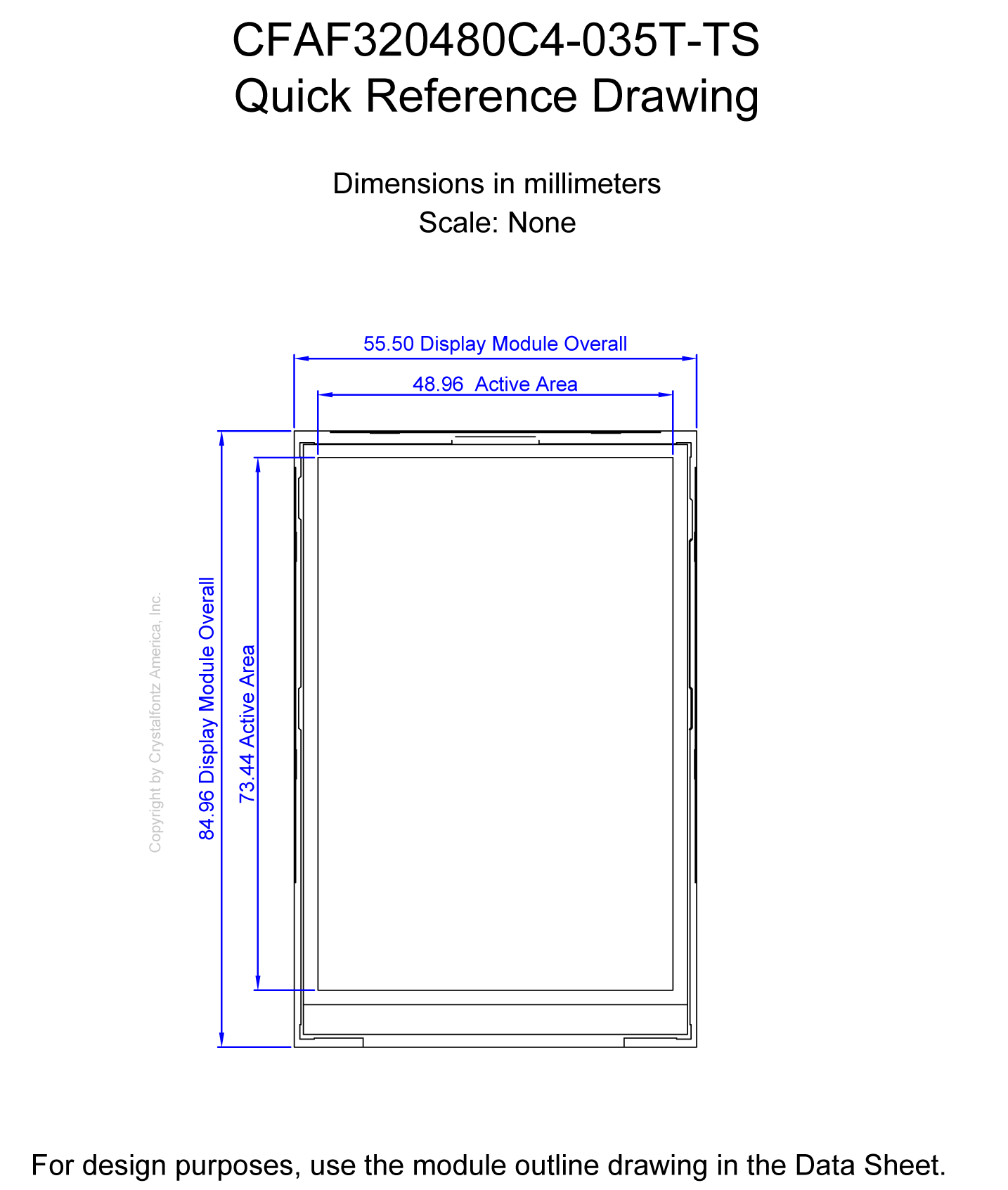

picture_as_pdf 1 to 1 Template - CFAF320480C4-035T-TS 1 to 1 Module Outline

Module Overall	width	height	depth
millimeters	55.55	84.96	3.75
inches	2.19	3.35	0.15
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	50.96	75.44
inches	2.01	2.97

Active Area	Width	Height
millimeters	48.96	73.44
inches	1.93	2.89

Dot Pitch	Width	Height
millimeters	0.051	0.051
inches	0.0020	0.0020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	max
Non-condensing	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10676: CFAF320480C4-035T-TS End of Life

Product Affected:	CFAF320480C4-035T-TS
Date Issued:	October 21, 2015
Summary:	CFAF320480C4-035T-TS End of Life
Description:	CFAF320480C4-035T-TS is no longer available as a standard part. It has been replaced by CFAF320480C5-035T-TS.
Reason:	As part of our continuous improvement, the touch panel has been increased in size to support better manufacturability.
Impact:	Projects designed to use CFAF320480C4-035T-TS should only have issues using the CFAF320480C5-035T-TS if the enclosure takes into account the touch panel dimensions.
Recommendation:	Purchase sample of CFAF320480C5-035T-TS to verify fit.
Availability:	CFAF320480C4-035T-TS is EOL effective 2015-10-20 CFAF320480C5-035T-TS is available 2015-10-21

Product Update #10488: (New Product) CFAF320480C4-035T-TS

New Product:	CFAF320480C4-035T-TS
Date Issued:	April 30, 2013
Summary:	(New Product) CFAF320480C4-035T-TS
Description:	TFT LCD Modules: 320x480 3.5 inch TFT Touchscreen Display
