320x240 3.5" Full Color TFT LCD

Part Number: CFAF320240F-035T

For maximum flexibility, this 3.5-inch diagonal full color QVGA 320x240 TFT has lots of different interfaces: 8-bit/9-bit/16-bit/18-bit parallel (8080 or 6800); 16-bit or 18-bit "DOTCLK" RGB; or 3- or 4-wire SPI. For easy connection to your host, the FFC/FPC tail mates with easy-to-find ZIF sockets.

To save time during prototype development, this TFT display module is available in a kit with a Crystalfontz breakout/carrier board.(See Under ADDITIONAL OPTIONS below.)

For a touchscreen version of this display, we offer the CFAF320240F-035T-TS.

Detailed Benefits

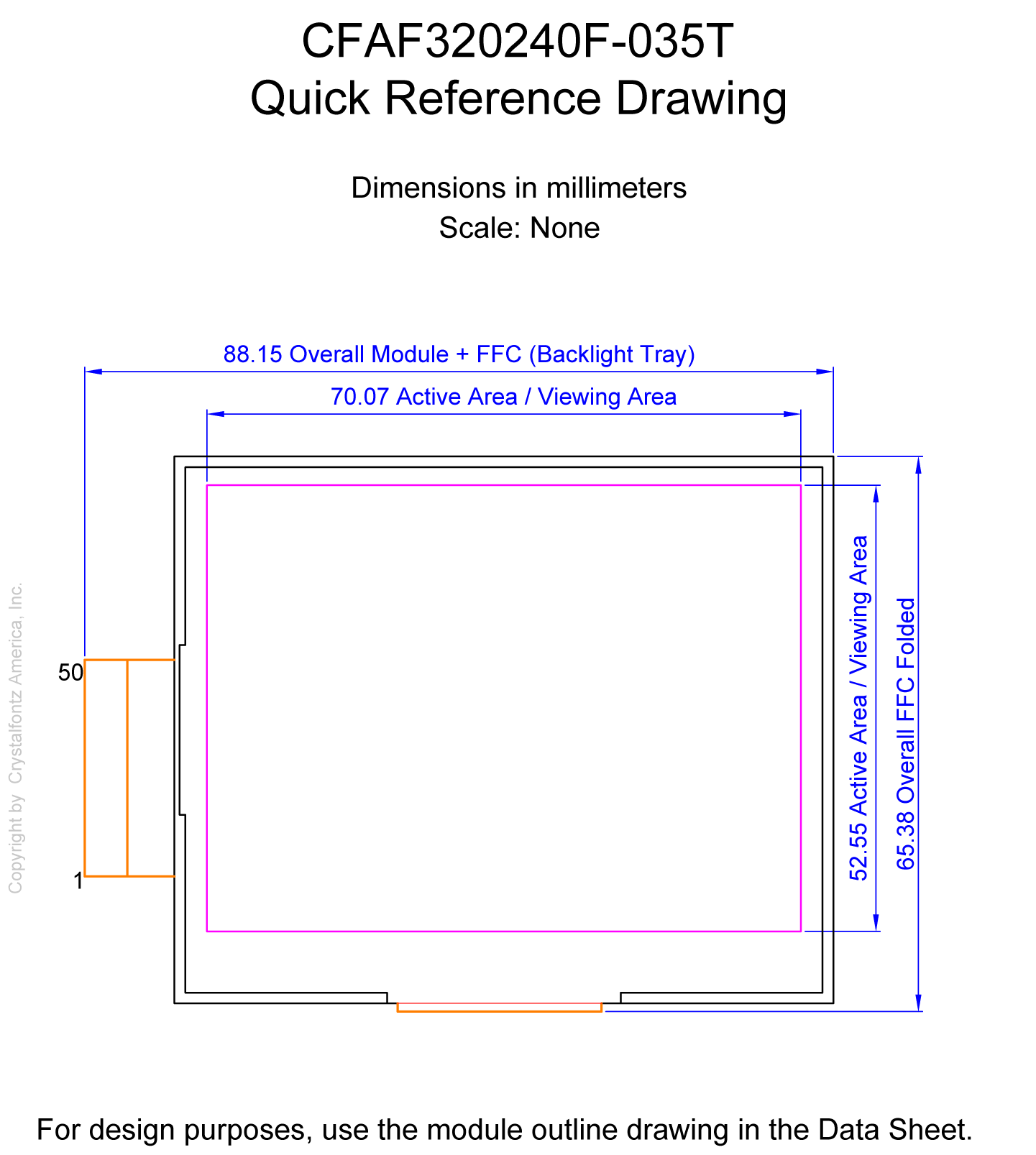

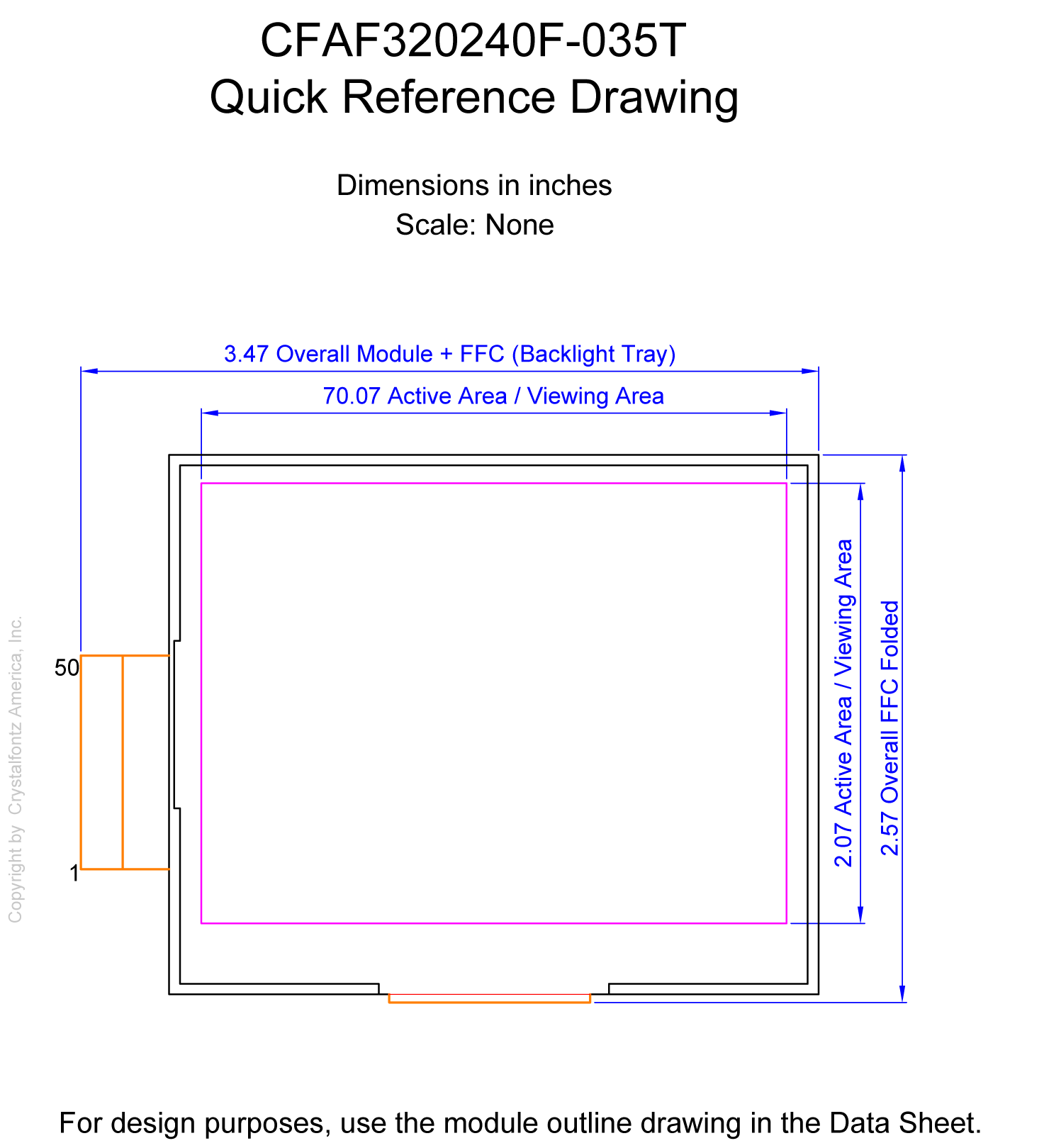

  • Active Area is 70.08 (W) x 52.56 (H) millimeters (2.76" (W) x 2.07" (H)).
  • The integrated Solomon Systech SSD2119 or compatible driver requires only a single 3.3v supply for both power and logic.
  • The display module has a built-in DC-DC converter for panel voltage.
  • The 50-pin FFC mates with standard 0.5 mm ZIF sockets such as HFJ150CT-ND and HFK150CT-ND available from Digi-Key.
  • 6:00 o'clock viewing direction (polarizer viewing direction). Can be used in either portrait or landscape orientation.
  • Operating temperature range is -20°C to +70°C.

Free downloadable sample code is under the DATASHEETS & FILES section. Need more information? Feel free to contact our tech support team for assistance.

Product Variations

Touchscreen
ResistiveNone



Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Unit Price
1 $52.48
5 $49.11
10 $47.71
20 $46.31
50 $44.62
100 $41.73
200 $41.46
300 $40.93
500 $40.67
1000 * $37.05
760 Units In-Stock & Ready To Ship
Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering
4639 50 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $1.76 ea.
4831 50-Position ZIF Breakout Board
Add a 50-pin ZIF Breakout Board? $6.54 ea.

Additional Options

As an option, you can order this TFT pre-assembled onto a breakout/carrier board. The board allows easy prototyping through its 0.1" headers. You can also include the carrier board in your end product to simplify construction and assembly.

Additionally you can purchase this module on an FTDI EVE accelerated board which provides a complete API for designing your user interface.

3.5" 320x240 EVE Development Kit
Part Number: CFAF320240F-035T-A1-2
Details
Quantity 1
Unit Price $112.47
Quantity:
CFAF320240F-035T TFT With Carrier Board
Part Number: CFAF320240F-035T-CB
Details
Quantity 1 10 20 50 100 200 500 * 1000 *
Unit Price $63.33 $57.58 $57.11 $56.65 $56.19 $55.72 $45.02 $39.17
Quantity:
320x240 TFT with EVE Accelerator
Part Number: CFAF320240F-035T-A1-1
Details
Quantity 1 5 10 20 50 100 200 300 500 * 1000 *
Unit Price $91.38 $85.32 $83.08 $80.27 $77.46 $76.34 $75.77 $75.22 $74.66 $74.09
Quantity:

Part Change Notices

Subscribe to Part Change Notices by email Email subscription for changes to CFAF320240F-035T or RSS RSS feed for changes to CFAF320240F-035T
  • text_snippet
    Part Change Notice #11027: The glass used in the parts list has been changed
    Products Affected: CFAF320240F-035T, CFAF320240F-035T-TS
    Date Issued: December 11, 2018
    Summary: The glass used in the parts list has been changed
    Reason: The change was made to improve performance and function.
    Impact: Customers should not have to make any modifications.
    Recommendation: Although tests at Crystalfontz have not found any difference in code requirements, it is recommended that customers perform their own tests to verify operation with their hardware.
    Availability: The updated displays are available now.
  • text_snippet
    Part Change Notice #10423: BOM change for LED backlight effective 2012/05/29
    Products Affected: CFAF320240F-035T, CFAF320240F-035T-TS, CFAF320240F-035T-CB, CFAF320240F-035T-TS-CB
    Date Issued: June 15, 2012
    Summary: BOM change for LED backlight effective 2012/05/29
    Description: The LEDs used in the backlight for the CFAF320240F-035 family of TFT LCD modules and any assemblies using the CFAF320240F-035 family of TFT LCD modules produced from 2011-03 to 2011-11 is no longer available. To avoid any interruption in supply for our customers, we have gone back to using the LEDs which were in the backlight assembly prior to that point. The LEDs now used are more toward the blue end of the spectrum, whereas the LEDs used for the March-November 2011 period were toward the red end of the spectrum. There may be a difference in light output, but still in the specified range from our datasheet.
    Reason: Component end of life.
    Impact: Low. The specifications for the LEDs used in the backlight still meet the specifications stated in our datasheets.
    Availability: Current stock.
    Price Change: N/A
  • text_snippet
    Part Change Notice #10403: Glass characteristics change requiring single command initialization change for optimal contrast.
    Products Affected: CFAF320240F-035T, CFAF320240F-035T-TS, CFAF320240F-035T-CB, CFAF320240F-035T-TS-CB
    Date Issued: February 24, 2012
    Summary: Glass characteristics change requiring single command initialization change for optimal contrast.
    Description: PCN for CFAF320240F family of products due to a change in panel vendors.
    Reason: In order to maintain uninterrupted supply of this module, we changed vendors for the LCD panel so that lead times would not be affected.
    Impact: Because of the slightly different characteristics of the panel, a single command in the initialization of the module should be changed so that optimal contrast can be achieved.



    No other changes are necessary.
    Recommendation: Change the following registers from:




    write_command(0x001E); // Power Control 5

    write_data(0x00B7); // Page 53 of SSD2119 datasheet



    to


    write_command(0x001E); // Power Control 5

    write_data(0x00BE); // Page 53 of SSD2119 datasheet



    and contrast should be optimal for the display.
    Availability: Immediately for non-touchscreen modules, with a cut-in for the modules with a touchscreen over the next several months.
    Price Change: Pricing is not affected by this change.
  • text_snippet
    Product Update #10335: Change in TFT part numbers
    Products Affected: CFAF240320K-T-TS, CFAF176220M-T, CFAF240320E-T, CFAF128160C-T, CFAF240320P-T, CFAF320240F-T, CFAF320240F-T-TS, CFAF240400D-T, CFAF128160C-018T, CFAF176220U-020T, CFAF240400D-030T, CFAF320240F-035T
    Date Issued: March 29, 2011
    Summary: Change in TFT part numbers
    Description: We are changing our TFT part numbers to have them better describe the parts being ordered. The change should be complete for all TFT modules shipping within the next six months.

    Part numbers will change as follows:
    CFAF128160C-T will change to CFAF128160C-018T
    CFAF176220M-T will change to CFAF176220U-020T
    CFAF240320E-T will change to CFAF240320H-022T
    CFAF240320K-T-TS will change to CFAF240320K-024T-TS
    CFAF240320P-T will change to CFAF240320S-032T
    CFAF240400D-T will change to CFAF240400D-030T
    CFAF320240F-T will change to CFAF320240F-035T
    CFAF320240F-T-TS will change to CFAF320240F-035T-TS
    Reason: There are many TFT modules with the same logical dimensions (resolution) with considerably different sizes. In order to help ease any confusion, we have decided to add the diagonal dimension to the part number.
    Impact: The part number is all that is changing, there are no other changes to the parts, so there should be no significant impact.
    Availability: The transition period should be about six months from the date of this bulletin.
